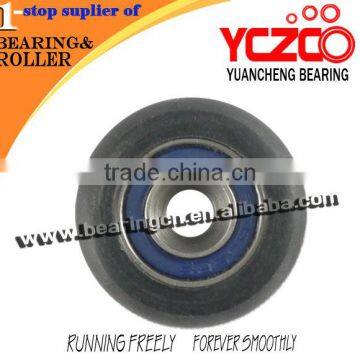

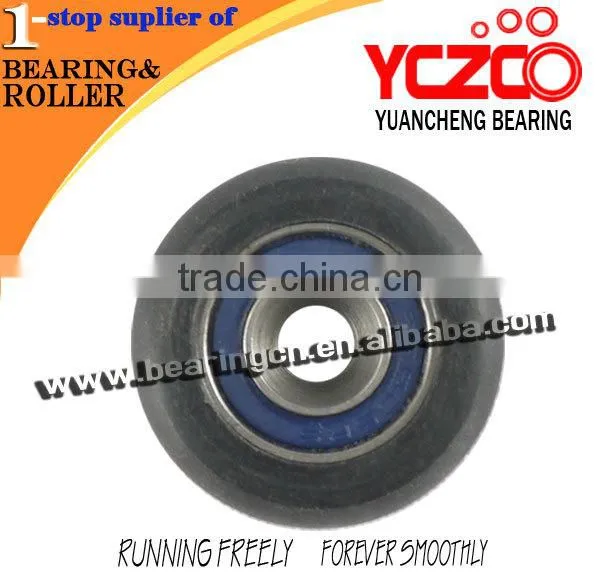

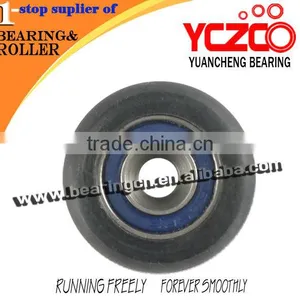

Small Shower Room Glass Door Roller/pulley Wheels

Specifications

small roller/pulley wheels
widely used for sliding glass shower room
miniature
quick delivery,good smooth
low noise, OEM

•  Shower room door pulley wheels Desciption

Item name:  Small shower room glass door roller/pulley wheels

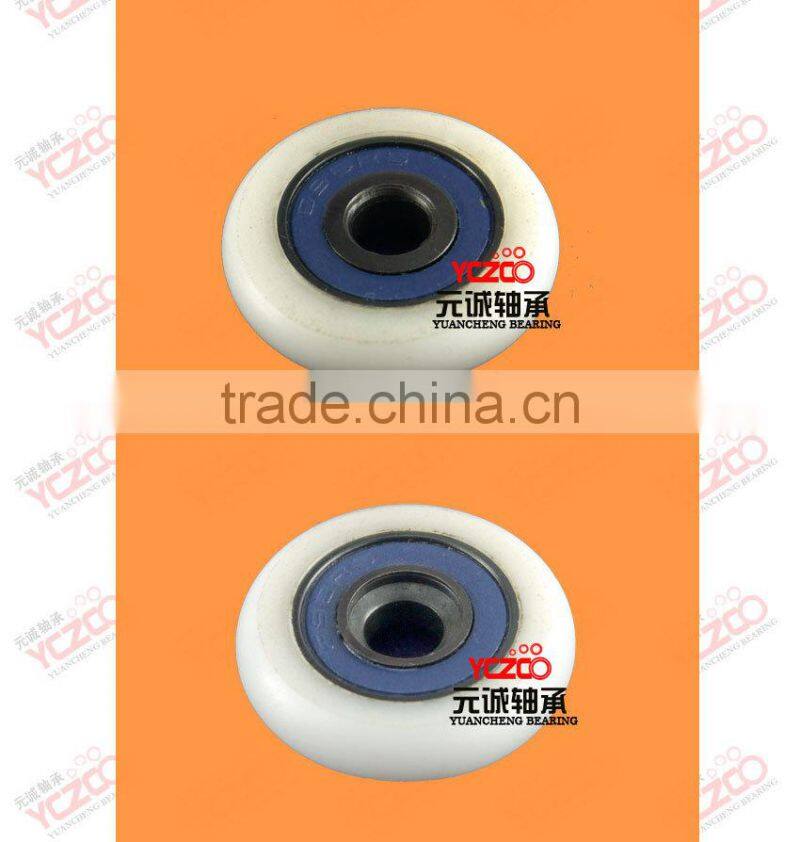

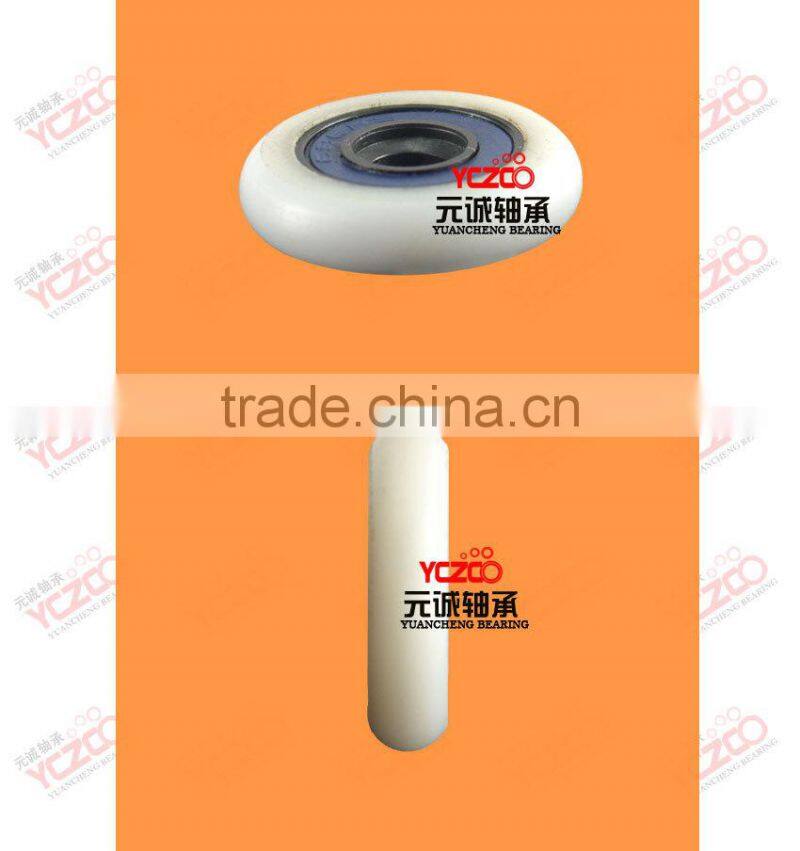

Small shower room glass door roller/pulley wheels
Material	Nylon(change with fiber glass,POM,rubber,etc.)
Model No	696ZZ-RD64
Size	5*22*5/mm
Grease/Oil	Shell Mobil KYODO Chevron
Cage	Steel , Brass , Nylon
Ball/Roller	Steel
Seal	Open, Z, ZZ, RS, 2RS, 2RZ, Oil seal
Hardness	HRC58-62
Clearance	C1 C2 Standard C3 C4 C5
Prices	Contact with Ivy(Skype:ivy8561)
Package	1.tube->paper box->carton 2.poly bag-->carton 3. up to Customer's RequirementSingle
Bearing precision	P0(ABEC1) P6(ABEC3) P5(ABEC5) P4(ABEC7)
Noise/ Vibration	Z1V1 Z2V2 Z3V3
Quality	ISO 9001:2000  We have complete process for the production and quality assurance to make sure our products can meet your requirement. 1.High Accuracy high speed low noise 2.Original YCZCO high precise ball bearing 3.Works smooth and Easy to install
Service	OEM
Application	The type of the roller with bearings is used widely in high quality Sliding and Hanging furniture wheel/rollers, Sliding and Hanging shower wheel/rollers.
Delivery	Normally ready goods and stock within 7 days
Payment Terms	30% T/T In Advance, 70% T/T Against Copy Of B/L or 100% LC at sight
Brand	YCZCO or OEM
Contact	Ivy(QQ:2119812224)



• Shower room door pulley wheels Feacture



1). High quality control

2). High swiveling accuracy

3). Suitable for high speed

4). Low friction, long service life

5). Can be customized according to your needs

6).Used for sliding glass shower room accessories





• Shower room door pulley wheels Appliction

The type of the roller with bearings is used widely in high quality Sliding and Hanging furniture wheel/rollers, Sliding and Hanging shower wheel/rollers.





•Shower room wheel ball bearing Structure



Bearing ringDimension tolerance , geometric tolerances,and surface quality of bearing’sworking surface will influent the operating noise. YCZCO adopts precision CNC machining ,to dimensionprecision, geometric tolerances , design drawing , mold making , grinding,cleaning, assembly ,testing,every link of strict checks.Which is to ensure all our products are tested by our strict criteria.



Ball  The balls evenly with by the cage,often make rolling movement



between 2 rings.The shape,size and number will directly influent bearing’s load tolerance and operating capability We use high precision, small vibration steel ball.It’s surface must be strengthened, no bumps scratches, lacerations, pitting and notch.



Cage Enclose and move with all or part of the balls.It also be used to insulate the balls,guide the balls’movement and to improve lubrication performance inside the bearing.,etc.

YCZCO’s cage is commonly made of cold rolling carbon steel.But in the corrosiveness environment ,nonparallel or high - speed situation,stainless steel,engineering plastics cagecan be decided on request.



ShieldYCZCO’s shield,taking the carbon steel material, if necessary,taking stainless steel or other material.



Seal YCZCO adopt different kind of seal material to meet the requirement of their

operating in high temperature and being compatible with grease. Acrylonitrile-butadiene rubber is our standard material.but in high temperature environment ,often adopt fluorocarbons, silicone , PTFE shield.



Grease The shield and seal were filled with standard grease.We can use different

grease as request.





• Shower room wheel bearing Technology







  •Packaging

1.tube->paper box->carton 2.poly bag-->carton 3. up to Customer's RequirementSingle



  •Shipping



By Sea, Air or EMS DHL UPS  Fedex or Others
