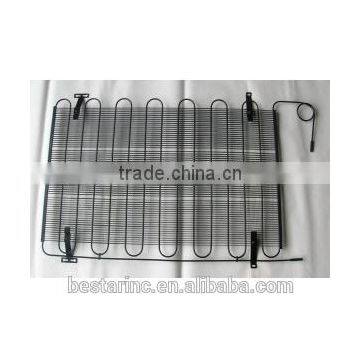

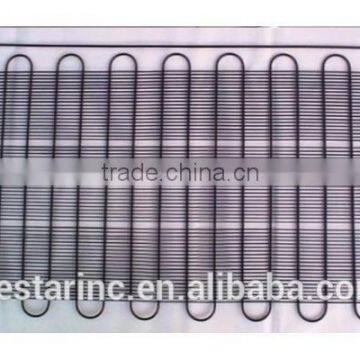

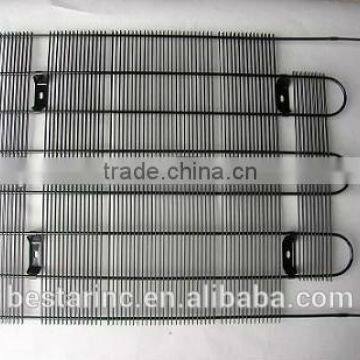

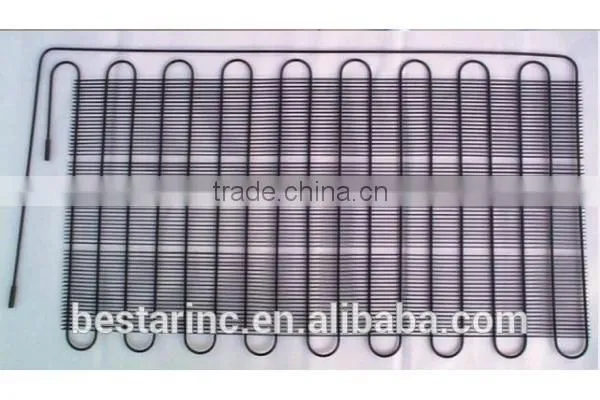

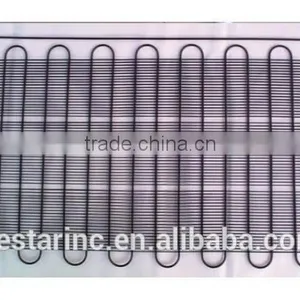

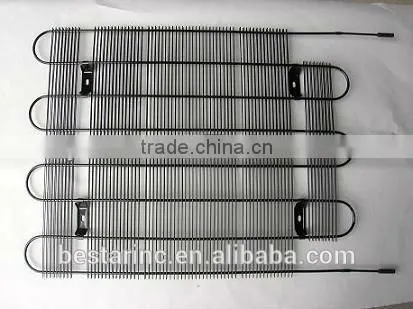

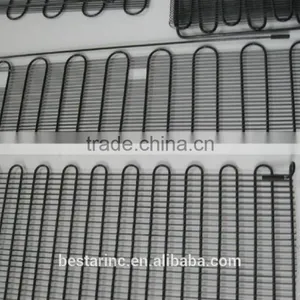

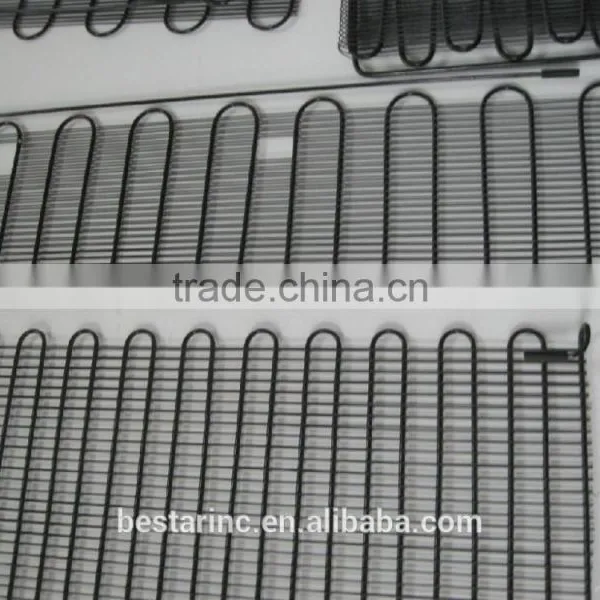

wire tube condenser for water dispenser

wire tube  condenser for water dispenser

Steel Wire:1.0, 1.1, 1.2mm
Bundy tube: 4.76mm

1/5HP: 18rows

Patent Description:

Due to the high price of copper tubing recent years, the market require a new cheaper replacement of the copper condenser to meet the market demand, after a long-term design, test and improvement, we developed a series of efficient air cooled wire tube condenser for which, we use 8mm, 6.35mm, 4.76mm bundy tube and steel wires to replace the copper tube and  aluminium fins respectively.

We increase the heat radiation areas and tube length, and design to make sure the same heat exchanger effect the air cooled wire tube condenser cost is more than 40% lower than the copper one, and is well received by the customers. Now this new condenser was approved as a series patent product by China state intellectual property office, and we are encouraged to make a future popularizaion of the patent products.

We can supply many types of condenser, wire tube condeser, wire condensers, condensor, icebox condenser, visi cooler condenser, refrigerator condenser, visi cooler condenser, showcase condenser for refrigerator.

Technical Parameter:

1)Material:

a) Bundy tube (steel tube coated with copper): 4.76x0.7mm, 6x0.7mm, 6.35x0.7mm, 8x0.7mm...

b) Low carbon steel wire:  1.0-1.6mm (both sides can be with steel plates and brackets; can be upon your option)

c) Bracket: steel plate (SPCC), thickness 0.6-1.5

2) Structure: bundy tubes welded with steel wires

3) Painting: Cathode Electrophoretic Painting is also available

 4) Performance: Surface with electrophoresis coating to prevent the corrosion

                                 Inner cleanness can meet the requirement of CFC & R134a cooling system

                                 Can satisfy the refrigerator, freezer and water dispenser cooling capability requirements

5) Main Production Process: Tube Bending, Welding, Fix the bracket, Weld the suction tube, Leakage test, Coating, Folding or bending shapin, Inspection, Package

WE can supply the products according to clients' drawings or samples, also can help the clients design and produce different condnesers.
