Aluminium Freezer Roll Bond Evaporator

Aluminium Freezer Roll Bond Evaporator thumbnail-1
Aluminium Freezer Roll Bond Evaporator thumbnail-2
Aluminium Freezer Roll Bond Evaporator thumbnail-3
Aluminium Freezer Roll Bond Evaporator thumbnail-4
Aluminium Freezer Roll Bond Evaporator photo-1

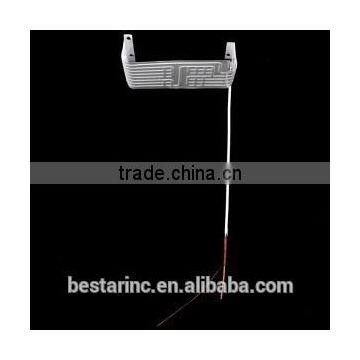

Aluminium Freezer Roll Bond Evaporator photo-2

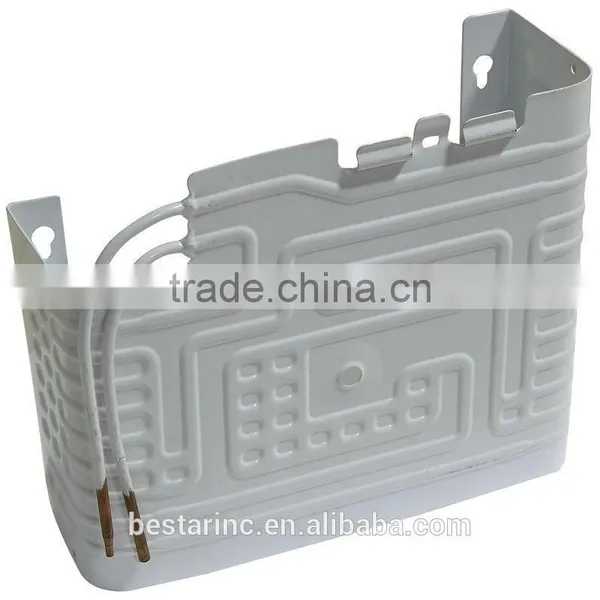

Aluminium Freezer Roll Bond Evaporator photo-3

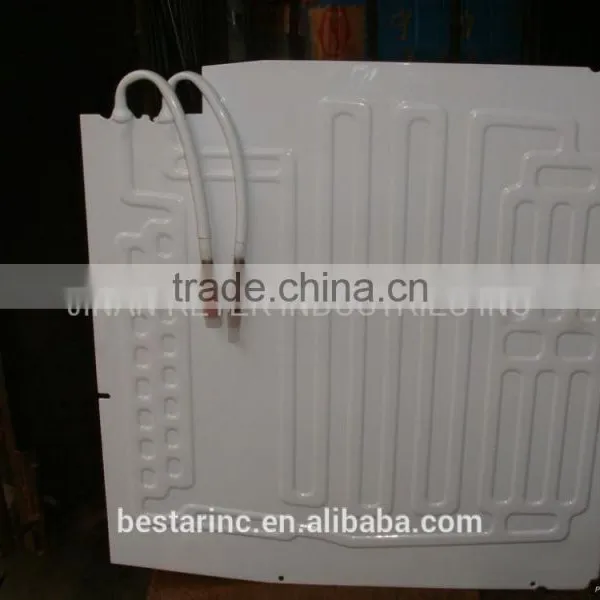

Aluminium Freezer Roll Bond Evaporator photo-4
US$ 1 - 100 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
retek
Model Number:
yrbe-6
Contact Supplier Request Quote Chat Now
Jinan Bestar Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name retek
Model Number yrbe-6
Condition New

aluminium freezer roll bond evaporator

Specifications

1,Porduct No.:092204
2,Size:550x350mm
3,Colour:Black
4,Painting:Powder
5,AL-plate thickness:1.1-2.0mm

New Arrival Bond Evaporator For Refrigerator,White Powder Painting Roll Bond Evaporator For Refrigerator,Aluminium Plate Roll Bond Evaporator For Refrigerator ,1031x448mm Single Side RollBond Evaporator,AL Plate Max Width 590mm Roll Bond Evaporator Evaporator,Roll Bond Evaporator,Refrigerator Evaporator,Refrigerator Roll Bond Evaporator,Aluminium Plate Evaporator,Aluminium Evaporator,Refrigerator Aluminium Plate Single Side Roll Bond Evaporator  can be produced or designed according customers' request.

Raw material

Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm

Structure

Double side rollbond evaporator,
Single side rollbond evaporator,part single side rollbond evaporator

Key process

Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Technical Standards

1) Size: width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.

Performance

1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.

Capacity

3.5 million sets per year (10000 sets per day)



R134a Cooling System Tube Inside standards

Residual moisture

≤5 /100cm3

Residual impurity

≤1 /100cm3

Residual mineral oil

≤100 /100cm3

Residual chlorine

≤5vloppm

Residual paraffin

≤3 /

Biggest single impurity

≤0.5mm



Specification of coating

Coating thickness

thickness of coating40 90 μ m

Hardness of coating

≥2H

Impact of coating

50cm?kg/cm impact, no crack

Adhesion of coating

≥two grade

Flexibility of coating

Around R=3D bend 180?, no crack or no fall off

Color tolerance of powder
painting
