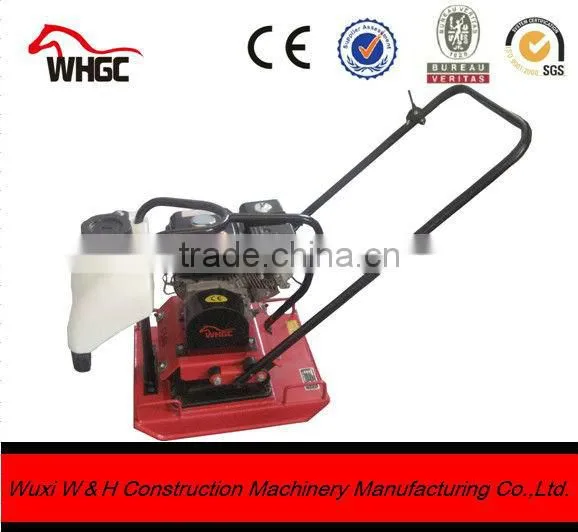

WH-C100T Forward wacker plate compactor

Specifications

WH-C100T Forward wacker plate compactor
1.with CE,SGS,BV,ISO
2.Compaction depth:30cm
3.Engine:Honda,Robin,Diesel.

 Forward wacker plate compactor WH-100T



   Forward wacker plate compactor   Features:



1. Vibration isolated reversible handle for easy operation and reduced operator fatigue.

2. Open design reduces dirt building.

3. Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate.

4. Heavy-duty shock mounts reduce vibration to the upper engine & handle.

5.It is easy for transportation.

6.High efficiency,stronger compacting force,good forward capability and easy to climb the slope.



    Forward wacker plate compactor Specification:



Model	WH-C100H	WHC100HC	WH-C100R	WH-C100D
Engine type	air-cooled, single cylinder,4-stroke
Engine	HondaGX160	Honda copy WH168F	Robin EY20	Diesel,WH170F
Power(HP)	5.5	5.5	5.0	4
Weight kg	88	88	88	91
Size of base plate(L*W)(cm)	58.5*46
Max. centrifugal force(KN)	15
Compaction depth (cm)	30
Vibration frequency(V·P·M)	4500







   Forward wacker plate compactor  Certificates:
