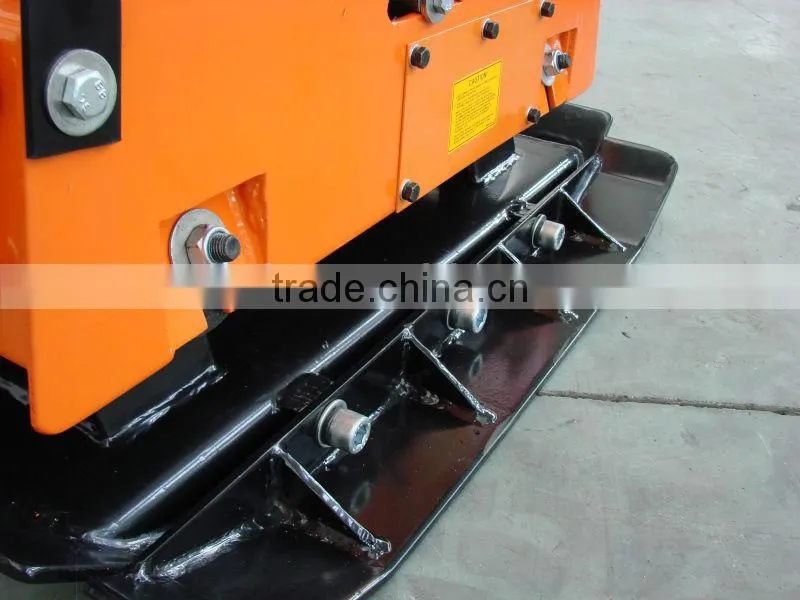

WH-C330HC Reversible Plate Compactor

US$ 1 - 10,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Application:

Widely used in construction size,civil work and etc

Power Type:

Gasoline

Wuxi W&H Construction Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Widely used in construction size,civil work and etc

Power Type Gasoline

Brand Name W&H

Model Number C330HC

Place of Origin Jiangsu, China

Power(W) 13.0

Dimension(L*W*H) 100*60*115cm

Weight 251kg

Certification CE,SGS,BV

Warranty one year

Specifications

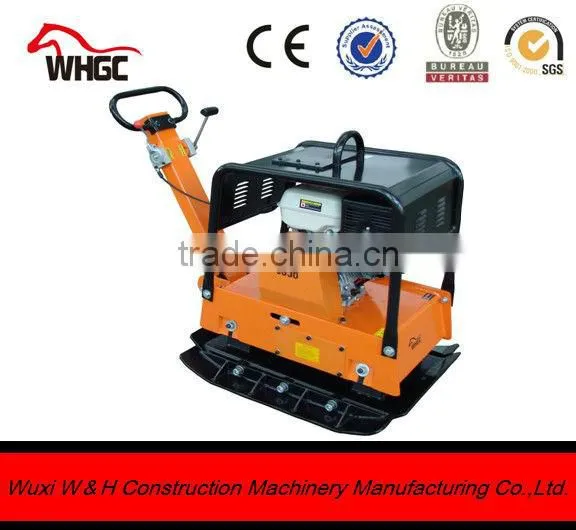

WH-C330HC Reversible Plate Compactor
1.with CE,SGS,BV
2.Compaction depth:80cm
3.Engine:Honda,Diesel.

Reversible Plate Compactor WH-330HC

Reversible Plate Compactor Features:

Humanization design handle with good anti-shocking ability and reduce operator fatigue.
It has fast leveling speed that can get firm compacting effect.
It is applied in dykes and dams,road base and other municipal enqineering builiding and maintenance.
Large shock mountes reduce vibration to the handle.
Heavy-duty shock mounts reduce vibration to the upper deck.
Wear-resistant base plates extend life,open design reduces dirt building.
Centrally-located lifting bar allows easy transportation in and out of trenches.
Semi-covered protection cage protects the plate from accidental job-site damage.

Reversible Plate Compactor Specification:

Model	WH-C330H	WH-C330HC	WH-C330D
Engine type	air-cooled, single cylinder,4-stroke
Engine	HondaGX390	Honda copy WH188F	Diesel,WH86F(E)
Power(HP)	13.0	13.0	9.0
Weight kg	251	251	251
*Size of base plate(LW)(cm)**	83.5*67
Max. centrifugal force(KN)	38
Compaction depth (cm)	80
Vibration frequency(V·P·M)	3750
