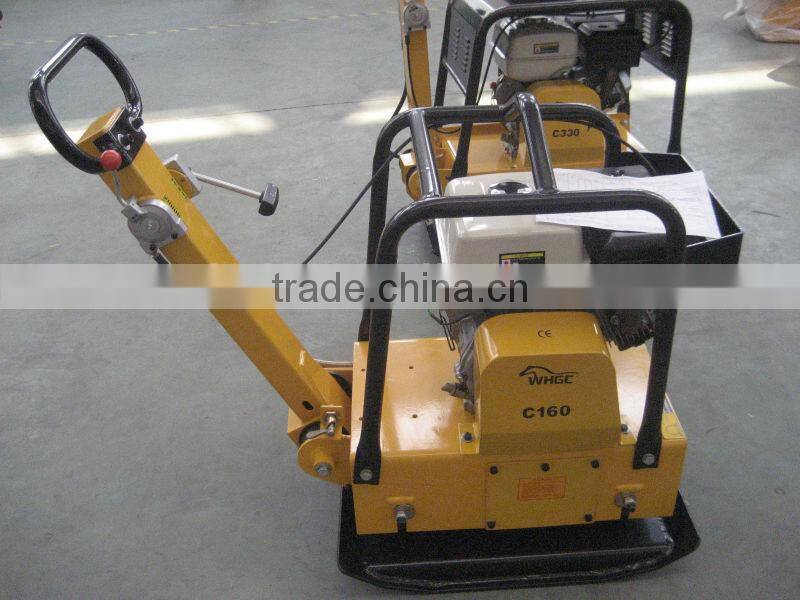

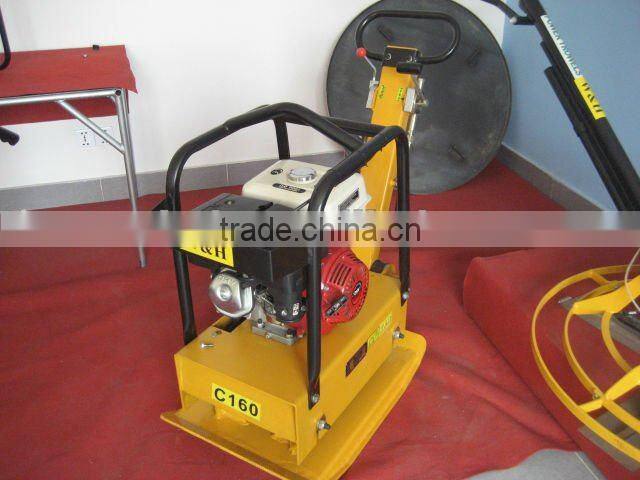

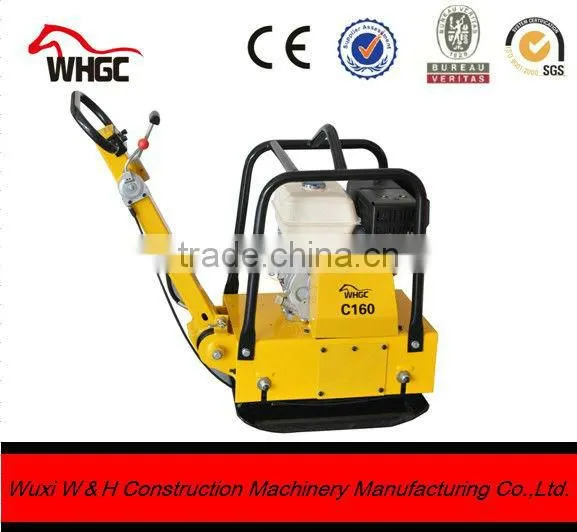

WH-C160 robin plate compactor

Specifications

Robin Plate Compactor WH-C160
1.with CE,SGS,BV,ISO
2.Air-cooled,single cylinder,4-stroke.
3.Engine:Honda,robin,diesel

   robin plate compactor WH-C160

  robin plate compactor Features:

1.Heavy-duty shock reduce vibration to the upper deck.
2. Centrally-located bar allows easy transportation in and out of trenches.
3. Wrap around protection cage protects the plate from accidental job-site damage.
4. Extension plate(weight 12kg)as optional.



    robin plate compactor Specification:

Model	WH-C160H	WH-C160R	WH-C160D
Engine (standard)	Honda GX160	Robin EY20	Diesel WH170F
Engine (heavy)	Honda GX270	Robin EY28	Diesel WH178F
Engine type	air-cooled  single cylinder  4-stroke
Size of base plate(L*W)(cm)	65*50
Compaction depth(soil) (cm)	50
Centrifugal force(KN)	30
Operating weight (kg)	168		225
Shipping weight (kg)	173		230
Shipping size(L*W*H)(cm)	91*53*111		91*63*111







    robin plate compactor Certificates:
