Product Details
Place of Origin: | Shandong, China | Brand Name: | Kersen | Model Number: | 502S |
Product Description

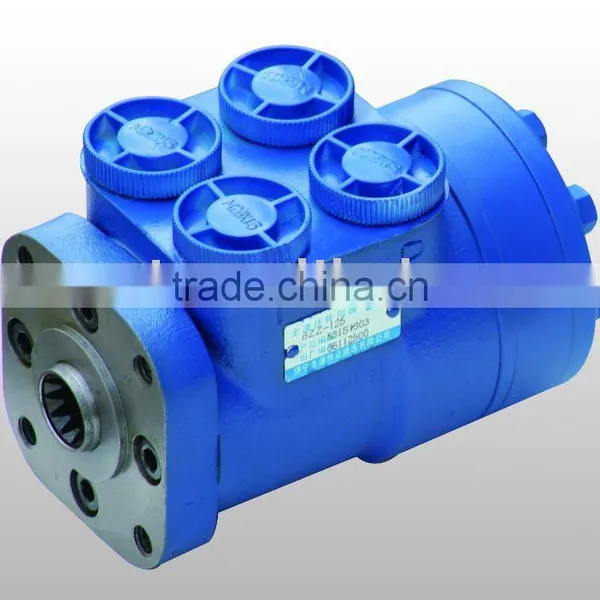

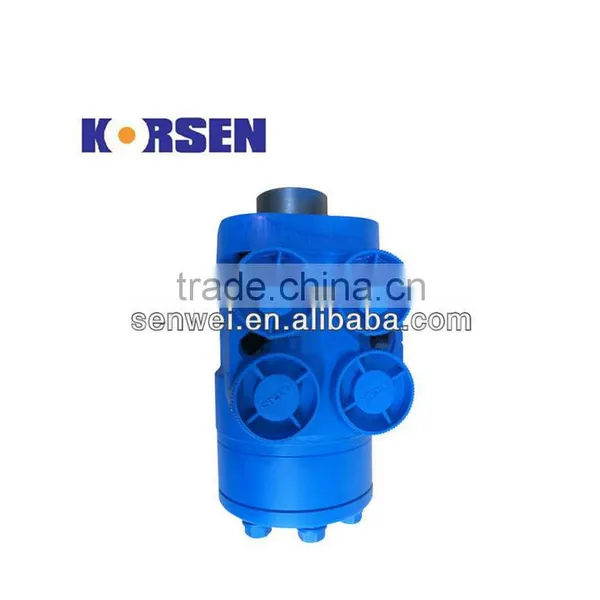

High Quality 502S Hydraulic Steering Control Units Motor
502S series of steering control units with foolowing features:
1.without integral valves except manual steering check and inlet plug-in check optiongal.
2.variety of optiongal features and applications.
3.typical applications are tractros, combines, lift trucks, wheel loaders and other heavy vehicles.
Main sepcification pls see the following diagram:
Model | Displacement (ml/r) | Flow (L/min) | Max. inlet pressure (MPa) | Max. cont. back pressure (MPa) | Input torque (N.m) | Weight (kg) |
502S | 50 | 4 |
16 |
2.5 |
2.5-3.5 | 4.08 |
502S | 63 | 5 | 4.85 | |||
502S | 80 | 6 | 5.05 | |||
502S | 100 | 7.5 | 5.22 | |||
502S | 125 | 9.5 | 5.70 | |||
502S | 160 | 12 | 5.38 | |||
502S | 200 | 15 | 6.03 | |||
502S | 250 | 19 | 6.43 | |||
502S | 320 | 24 | 7.07 | |||
502S | 400 | 30 | 7.73 | |||
502S | 500 | 38 | 8.62 |
