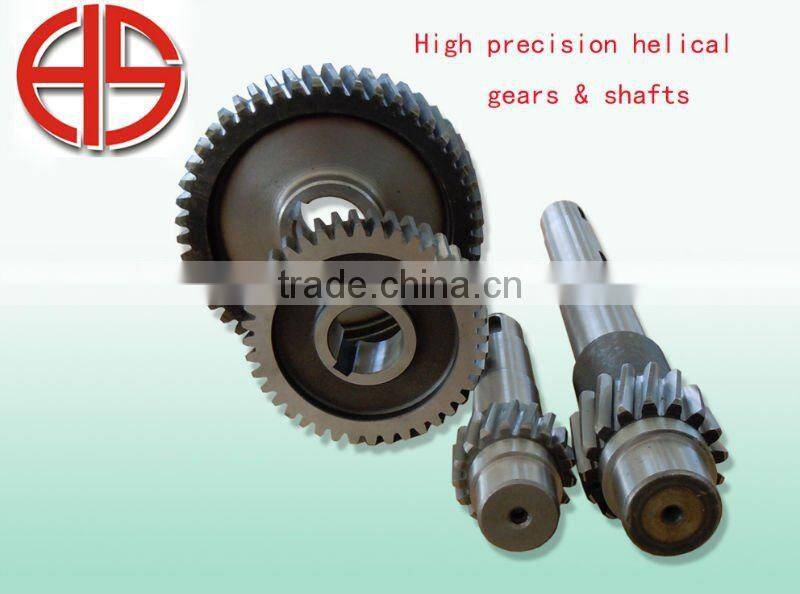

High precision groundgears for sprinkler parts

High Precision Gear for sprinkler parts : 4 pieces is one set , it is used in sprinkler warter pump .The followings are the details:

The model of the water pump :CLW80QZF-60/90,CLW80QZF-40/54.

Material: GB 40Cr.

Heattreatment :Quenching & tempering  , HRC45-50

 Accuracy Class: GB6(same as DIN6,ANSI3,JIS2)

 Finish of the teeth:Gb0.8   Grinding the teeth

 KTL-XSB-001  Driven gear :

 Module:2.5     NO.of teeth:17      pressure angle:20degree    right lead      OD:48

KTL-XSB-002  Gear pinion:

Module:2.5     NO.of teeth:40      pressure angle:20degree        left lead      OD:106

SB60/90-03    Driven gear :

Module:3    NO.of teeth:16      pressure angle:20degree    right lead      OD:56.48

 SB60/60-03   Gear pinion:

Module:3   NO.of teeth:48      pressure angle:20degree    left lead      OD:150.7

  If you are interested into our products, kindly offerus the drawing or sample and the right size, we will deal it in time.

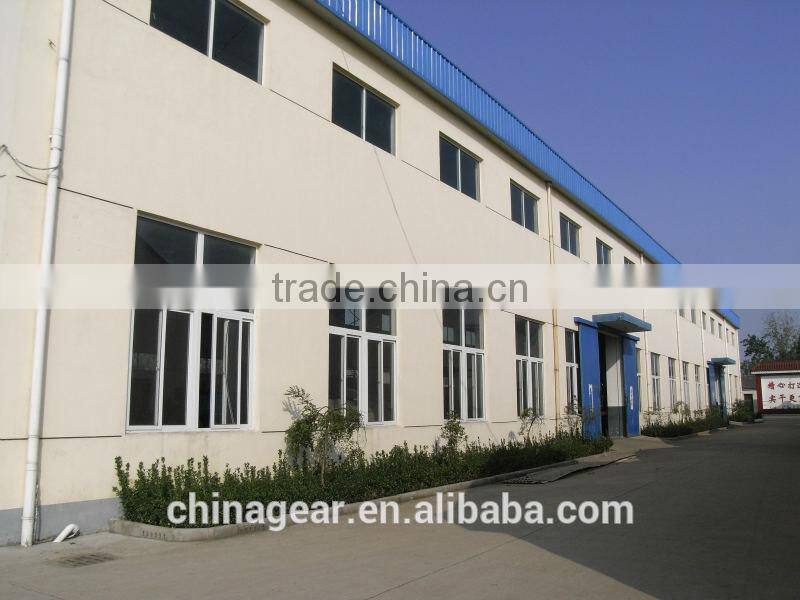

        Jianhu haisheng Machinery Manufacture CO., ltd specializes in designing and producing all kinds of gears , shafts and gearbox. Our products share a large market at home, and there are 35.6% of products exported to foreign countries, such as Canada, Austria, Tailand , Malaysia, USA and so on. We have won high reputation from our clients by high quality our products and good sale-service.

        If you are interested into our products, kindly offerus the drawing or sample and the right size, we will deal it in time.

                          Small order, Sample and Drawing are available!

1) Carton, or upon customers' specifications

2) Label: standard, or upon customers' specifications

3) Shipment: contract items
