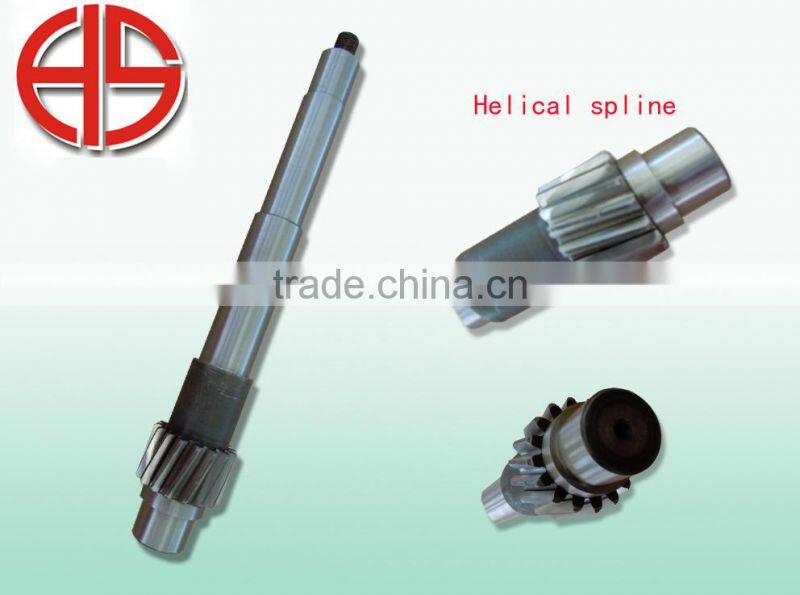

sprinkler parts gear and shaft Gear parts

Gear Parts , helical gear,  transmission gear, gear transmission

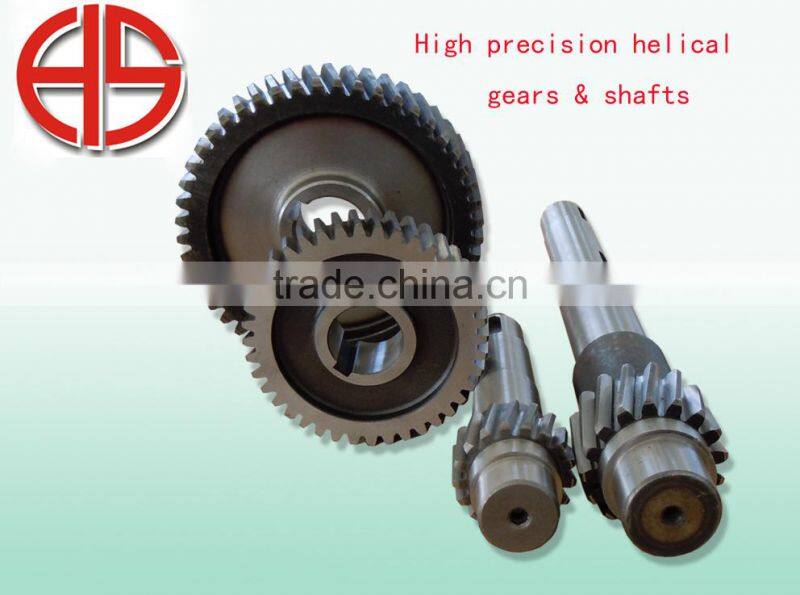

High Precision Gear for sprinkler parts : 4 pieces is one set , it is used in sprinkler warter pump .

The followings are the details:

 The model of the water pump :CLW80QZF-60/90,CLW80QZF-40/54.

Material: GB 40Cr.

Heattreatment :Quenching & tempering  , HRC45-50

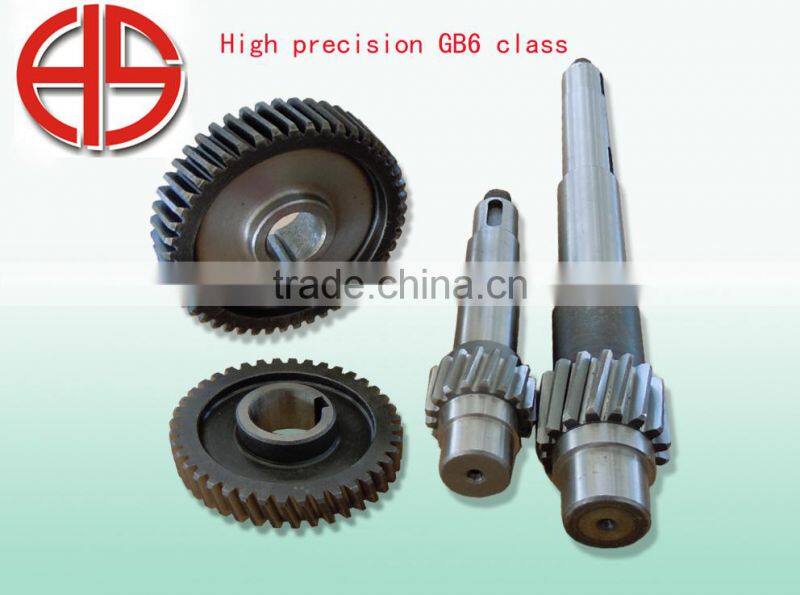

 Accuracy Class: GB6(same as DIN6,ANSI3,JIS2)

 Finish of the teeth:Ra 0.8um   Grinding the teeth

 KTL-XSB-001  Driven gear :

 Module:2.5     NO.of teeth:17      pressure angle:20degree    right lead      OD:48

KTL-XSB-002  Gear pinion:

Module:2.5     NO.of teeth:40      pressure angle:20degree        left lead      OD:106

SB60/90-03    Driven gear :

Module:3    NO.of teeth:16      pressure angle:20degree    right lead      OD:56.48

 SB60/60-03   Gear pinion:

 Module:3   NO.of teeth:48      pressure angle:20degree    left lead      OD:150.7

  If you are interested into our products, kindly offerus the drawing or sample and the right size, we will deal it in time.

We're Factory for 20 years' Production History

                              Website: http://

Our company is a professional manufacturer who make all kinds of gears, shaft  and gearbox for nearly 20 years with rich manufacturing experience . Our products have exported to USA, Europe and many other countries. If you are interested, feel free to contact me. Sample or Drawing are accpeted.

Our Advantage

• Professional gear factory for 20 years
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Best Factory Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service

FAQ:

1. Customer:   are these gear can be customized?

Our Company: Yes. All kinds of gears could be customized, includies teeth, module and materials etc.

2. Customer:  How to ensure the quality?

Our Company:  We can provide material report, metallographic report as your requirement

3. Customer:    What about the transportation?

Our Company: 1. we have cooperated with some transportation companies.

4. Customer:  How about the after-sale service?

Our Company: Of course. We have excellent after-sale services, if you have got any problem, you can contact us timely.

Tel: 0086-15848178629

 Skype: olivier.sun1

5. Customer:   What about OEM?

Our Company: Of course. If you need, we can do them as your requirement.

6. Customers: What about package?

Our company: 1. Standard export package: Boxes, Cartons, and Wooden Pallets.  2. Customized package.

7. Customers: Do you have any certificates of quality?

Our company: Yes. ISO9001:2008

Quality control

» Serious raw material inspection;
» Strict control over the entire manufacturing process;
» Sampling of all the products after final inspection before shipment;
» Quality trace after delivery

Before we deliver the goods to customer, we will inspect the quality.

Packing and shipment:

1) Carton, or upon customers' specifications

2) Label: standard, or upon customers' specifications

3) Shipment: contract items
