About Product
industrial machine tools digital protractor measuring angles

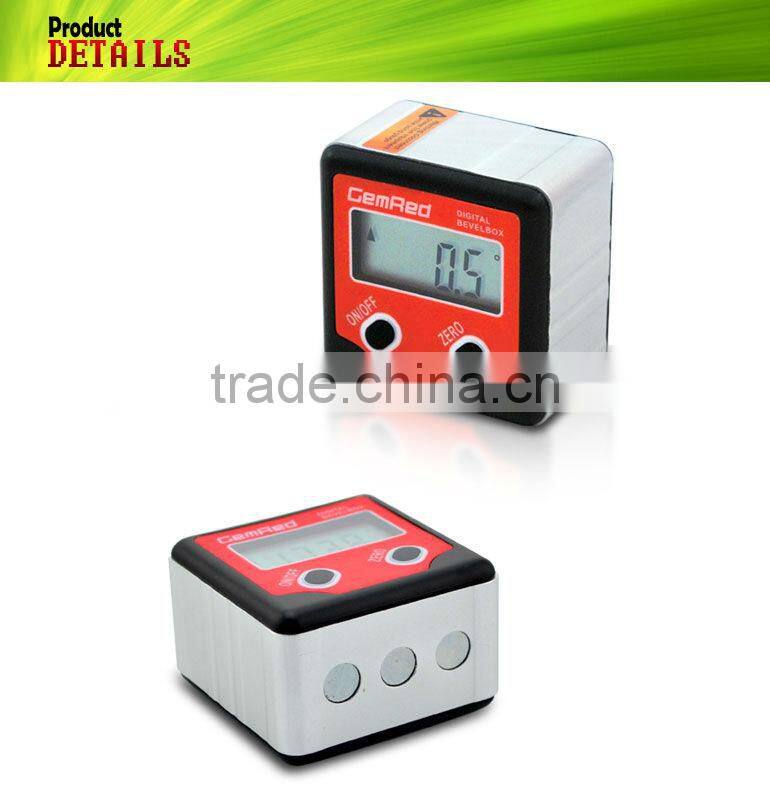

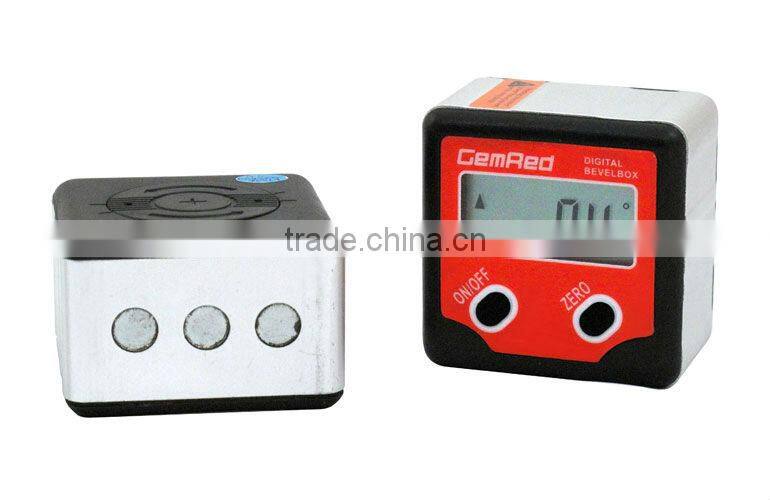

This precision digital bevel angle protractor provides relative and absolute measurements as well as zero setting to any position. Extra LCD is convenient to read. Small and light, it is real easy to be carried and used. Measuring plane contains disk magnet which can be attached to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair and so on.

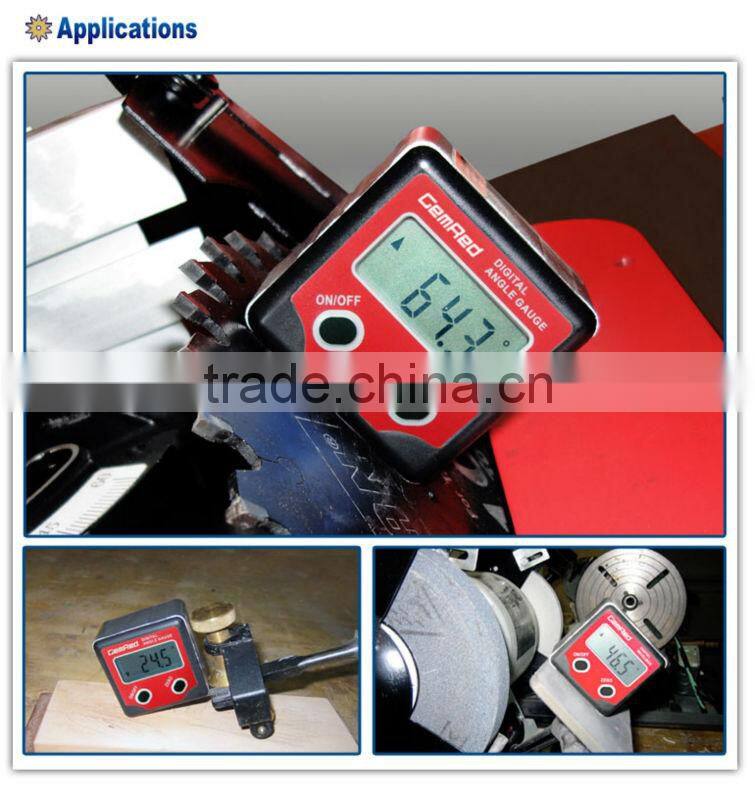

Applications
² Setting blade angle of Miter Saws
² Setting blade angle of Circular Saws
² Tool setting on Lathes
² Setting workpiece angle for milling
² Drainage angles and run off slopes
² Grader and tractor work alignment
² Platform monitoring
Features
² Absolute and Relative measurements
² with wide measuring range of ±180° (0 ~ 360°) with ± 0.1 Repeatability
² 3 Powerful built-in magnets on the base secures the attachment to any metal surface
² Easy-read large readout LCD display
² Light weight with compact design
² Fast and accurate measurements are guaranteed
² Zero button easily calibrates to any reference surface
² Auto power off after 5 minutes of no operation
Technical Data
Resolution |
0.1° |
Repeatability |
±0.1° |
Measuring range |
±180.00°(0°~360°) |
Waterproof |
IP54 |
Power |
3V CR2032 Lithium battery |
Working current |
<100μA |
Weight |
Approx 118g |
Dimension |
2” ×2” ×1.3” |
Package Inf

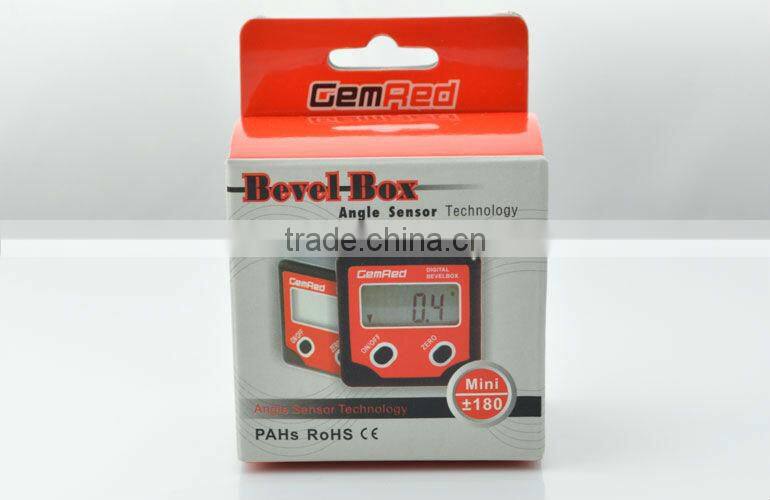

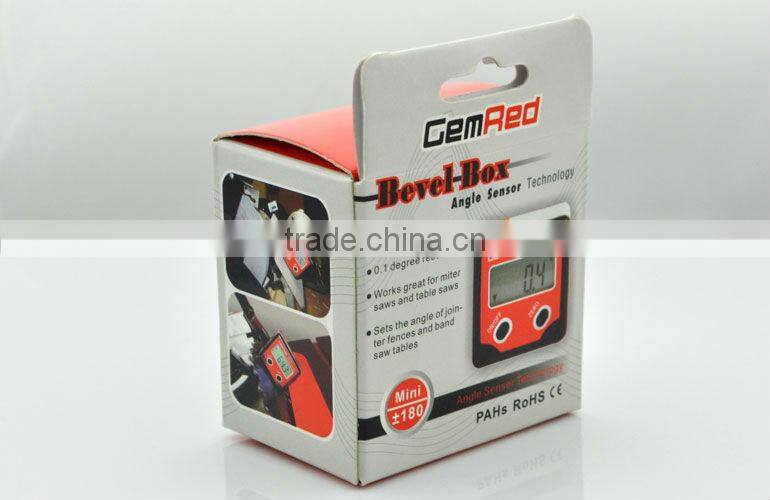

Package |
Color box |
Accessory |
Instruction, leather pouch, 3V CR2032 Lithium battery |
Size of unit package |
70*45*95mm |
Unit weight with package |
176g |
