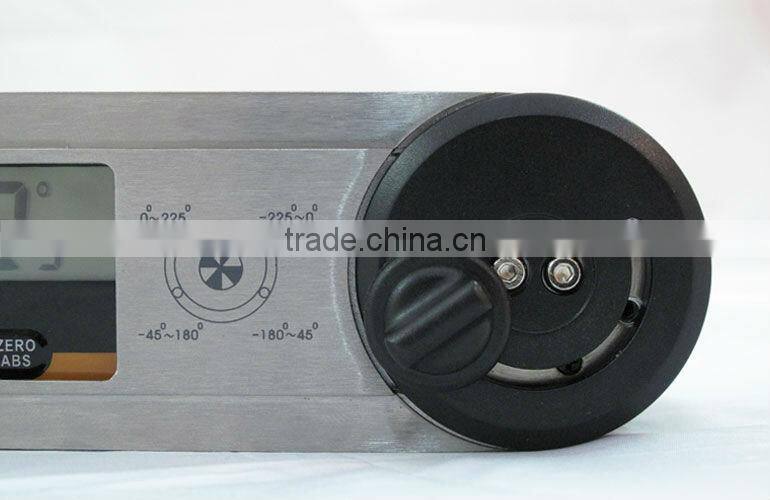

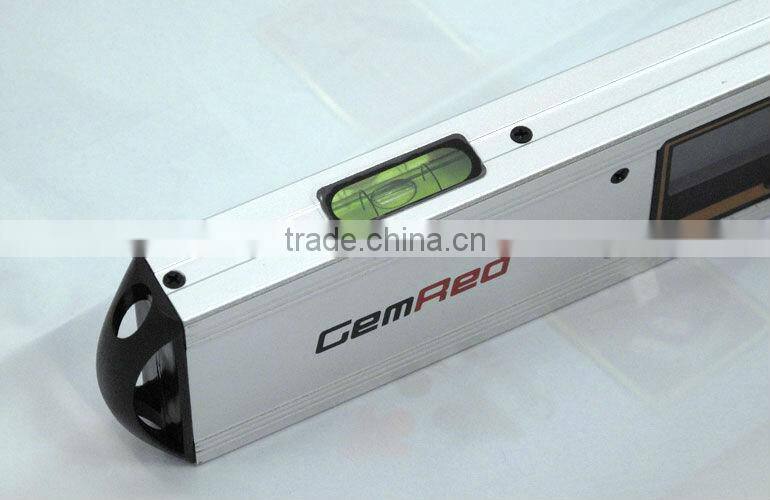

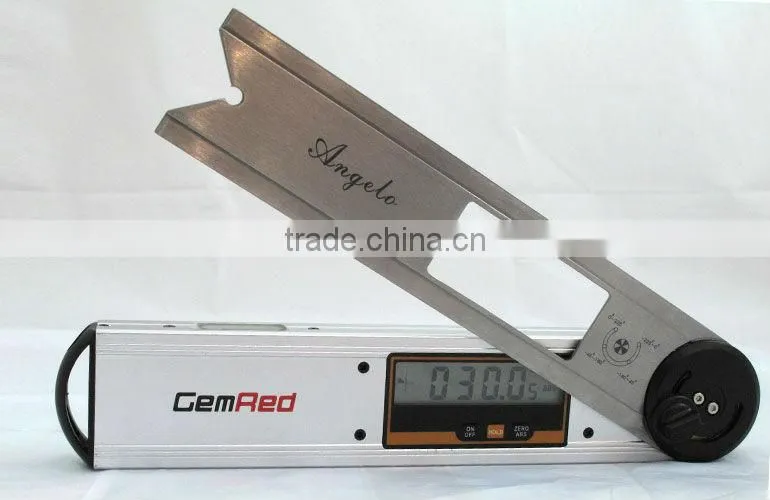

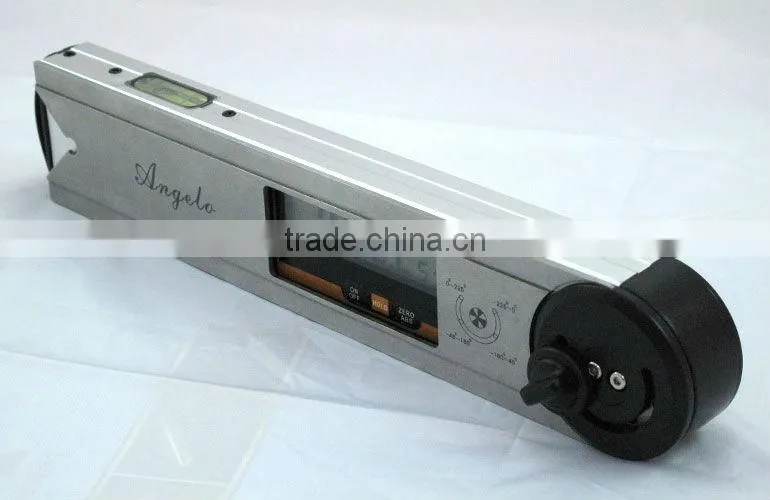

Electronic Goniometer for Measuring Angles Instrument

About Product

electronic goniometer for measuring angles instrument

An innovative angle finder can measure all kinds of angle, drawing lines, and accessory of power tool. It is accurate and operate easily.

Order NO. 82302-00 (Angelo)

1.  Aluminium fixing blade
2.  Metal moving blade
3.  High Accuracy vialHHHH
4.  Large LCD
5.  Membrane
6.  Locking knob function

Technical data:

Resolution: 0.05°/3´

Accuracy: 0.1°

Measuring range: 360 °

Working current: <80μA

Work temperature: +5°C ~ +45°C

Work humidity: <85%RH

Length: 254mm(10")

Power: 3V CR2032 Lithium battery

Battery life: more than 2000 hours

Features:

1. Easy to measure all kinds of angle and draw lines.
2. Conversion between absolute measurement and relative measurement.
3. Display always reads upright, no matter which way it is turned.
4. Easy calibration and Zero setting.
5. Analogue quadrant showing for easy reading.
6. High accuracy level bubble for measuring horizontal level easily.
7. Lock the moving blade at any angle.

 Standard products

 Order NO.82302-00-W

Pack inf.

unit size of product:268mm*50mm*30mm

unit weight of product: 335 g

package:clamshell

Accessory: 3V cr2032 Lithium Battery; Leaflet

size of unit package:125x32x325mm

unit weight with package:403g

 Personal service

a.Customize product

1. Customize fixing body

 2.Customize logo on fixing blade

3.Customize logo on moving blade

b.Customize package

 1. Customize inner card

 2.Customize clamshell

Shipping Ways

We support all kinds of shipping ways, by sea, by air freight or by express(TNT, UPS, FedEx or DHL ). You can also choose the ways you prefer.

Quality

Our company was established in year 2003, with rich experience in digital measuring industry, we have professional technical team and strict production process control,  we have exported the goods to all around the world, and all the feedbacks are good.

Why choose us?

1.       rich industry experience over 10 years

2.       professional technical team

3.       strict production process and quality control

4.       sufficient stock, timely shipment

5.       superior after-sale service, e-mail will be get back within 24 hours

6.       provide diversified customized service
