About Product

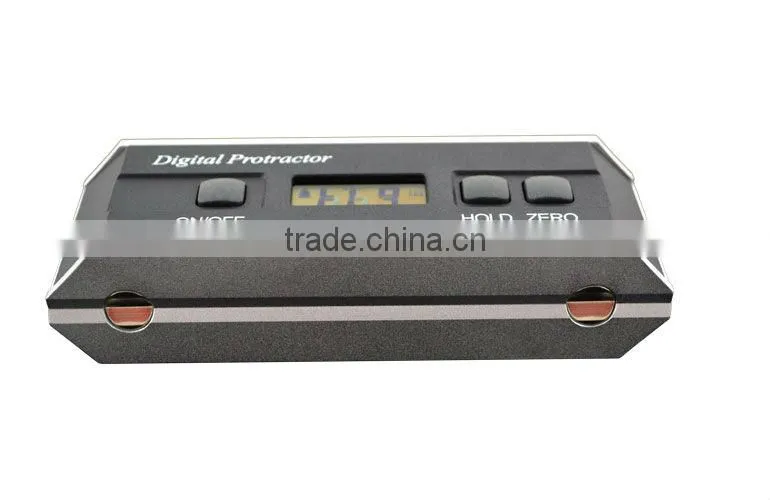

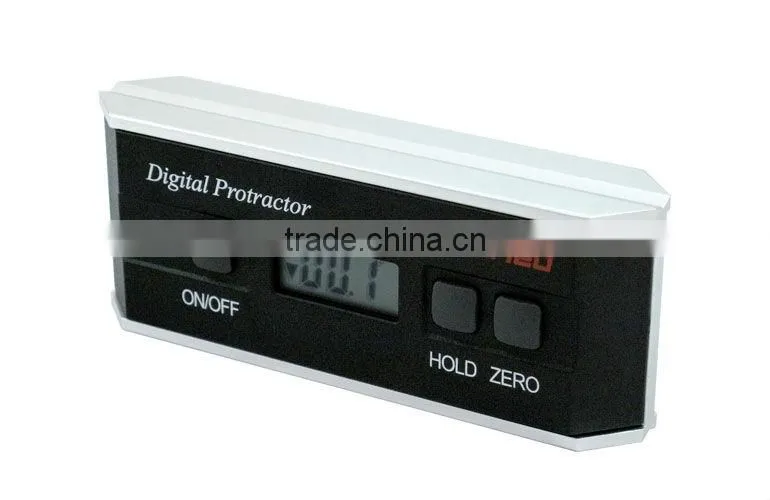

measuring with a protractor portable digital gauge is a revolutionary measuring tool to build 0.1° accuracy at vertical and horizontal planes and 0.2° accuracy at other angles. The aluminum frame with integral base-plate is light, rigid and ultra-precise platform. Allowing the state-of-the-art sensor and microprocessor circuit to provide unsurpassed accuracy throughout 360° range. The unit can also be easily recalibrated to any available flat surface.
Applications
² Automotive
n Drive line Measurement
n Wheel alignment
n Frame straightening
² Industrial
n Machine tool set up
n Lathe and mill alignment
² Setup of precision machines
² Road or rail-track layout
² Satellite or aerial alignment
² Tool setting on Lathes
² Setting blade angle of Circular Saws
² Setting blade angle of Miter Saws
² Setting work piece angle for milling
² Platform monitoring
² Suitable for Built wood and metalwork projects
² Ensure wallpaper and cornices are level for decoration
Features
² Full range 360° measurement allows you to work both horizontal and vertical planes
² Measuring range of 4 x 90° with ±0.1° repeatability
² Large and clear LCD display with 0.1° resolution
² Hold Reading function
² Simple self-calibration, calibrates the meter to any reference surface
² Display remains upright enabling viewing at all angles
² High-impact, high-precision machined aluminum framework
² Fast and accurate measurement
² Compact & portable design
² Absolute and relative measurement conversion
² 3V Lithium battery lasts for 2000 hours in continuous use
Technical Data
Resolution |
0.1° |
Accuracy |
0° and 90° ≤ 0.1°; the rest ≤ 0.2° |
Measuring range |
4×90°(0~360°) |
Waterproof |
IP54 |
Power |
3V CR2032 Lithium battery |
Battery Life |
more than 2000 hours |
Working current |
<50μA |
Weight |
Approx 297g |
Dimension |
152*33.8*60mm |
Package Inf
pacakge |
color box |
accessory |
3V CR2032 Lithium battery, ins 3V CR2032 Lithium battery truction, leather pouch, bubble bag |
size of unit package |
160*70*74mm |
unit weight with package |
430g |
unit size of product |
152*33.8*60mm
|
