About Product

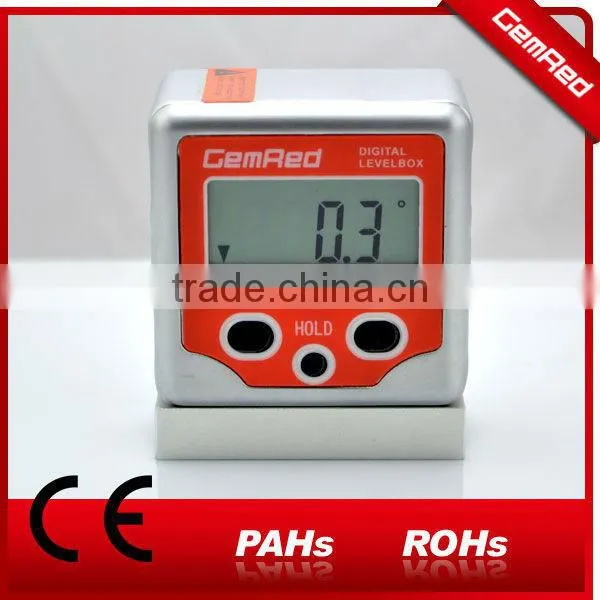

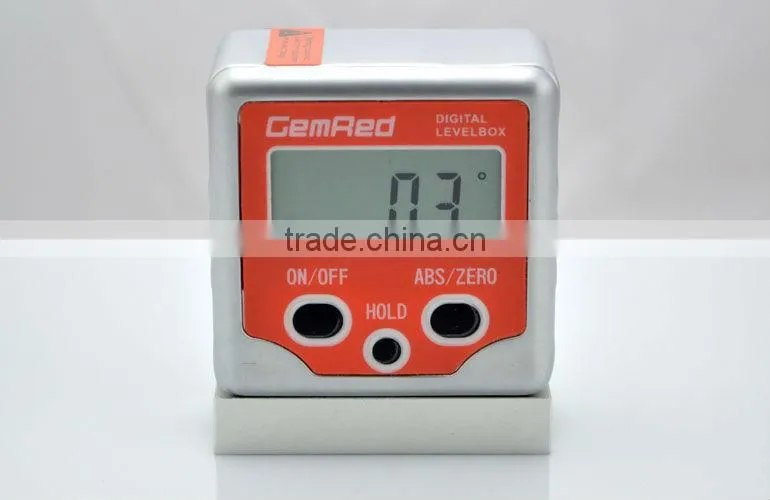

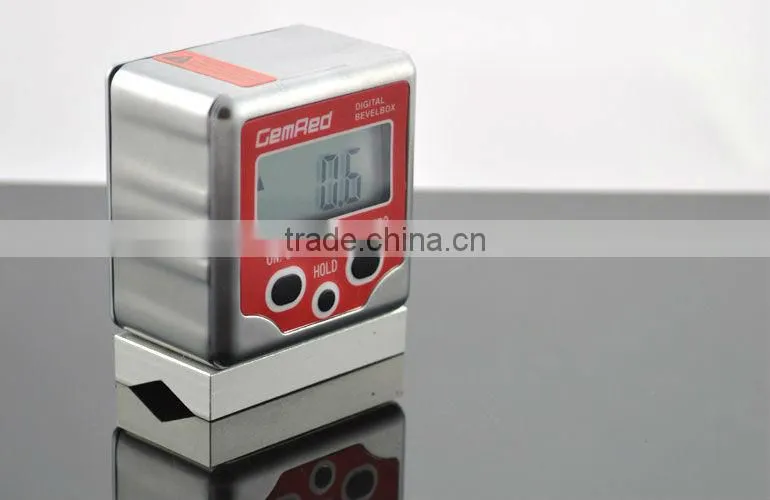

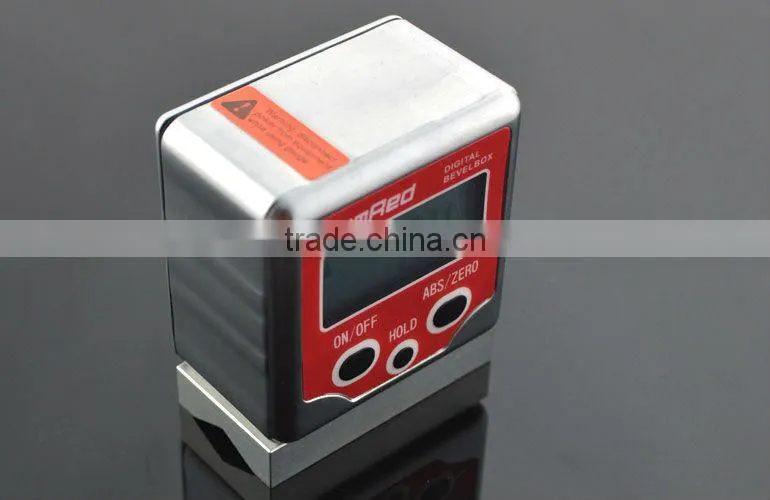

hand machine tools digital electronic protractor bevel is an innovative tool that provides digital reading between ±180.00°. Extra large LCD is convenient to read. Small and light, with V groove for easy sticking on round surface like steel tube or other metal cylinder, it is real easy to be carried and used. Measuring plane containing disk magnet can stick to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair and etc.
Applications
² Setting blade angle of Miter Saws
² Setting blade angle of Circular Saws
² Tool setting on Lathes
² Setting workpiece angle for milling
² Drainage angles and run off slopes
² Grader and tractor work alignment
² Platform monitoring
Features
² Absolute and Relative measurements
² with wide measuring range of ±180° (0 ~ 360°) and ± 0.1° repeatability

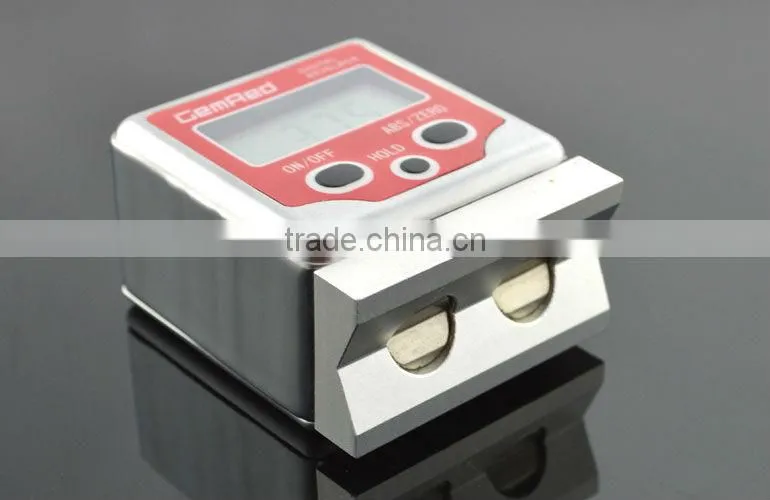

² 2 Powerful built-in magnets on the base and V groove secures the attachment to any metal surface
² Easy-read large readout LCD display
² with Data HOLD function and V groove
² Light weight with compact design
² Fast and accurate measurements are guaranteed
² Zero button easily calibrates to any reference surface
² Auto power off after 5 minutes of no operation
Technical Data
Resolution |
0.1° |
Repeatability |
± 0.1° |
Measuring range |
±180.00°(0°~360°) |
Waterproof |
IP54 |
Power |
3V CR2032 Lithium battery |
Working current |
<100μA |
Weight |
Approx 193g |
Dimension |
60*50.8*33 mm |
Package Inf
Package |
Color box |
Accessory |
Instruction, leather pouch, 3V CR2032 Lithium battery |
Size of unit package |
70*45*95mm |
Unit weight with package |
251g |
