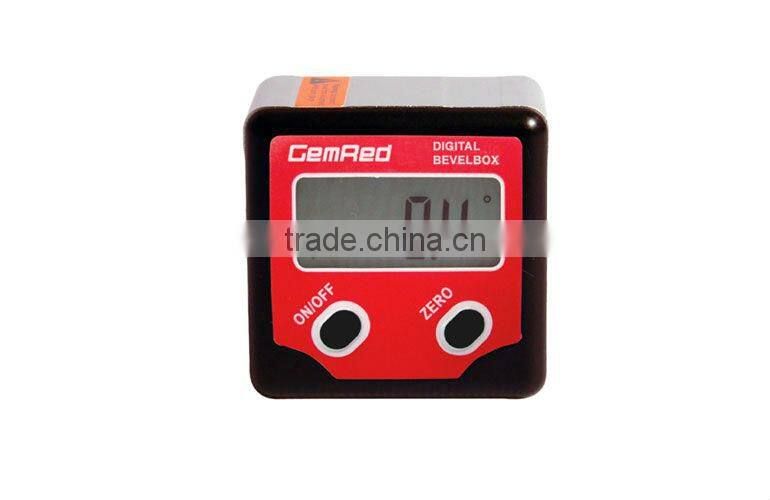

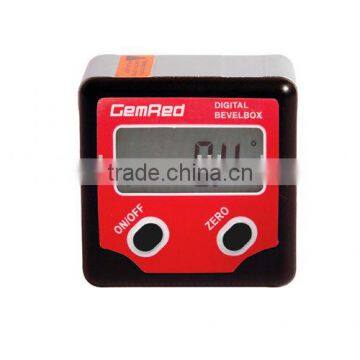

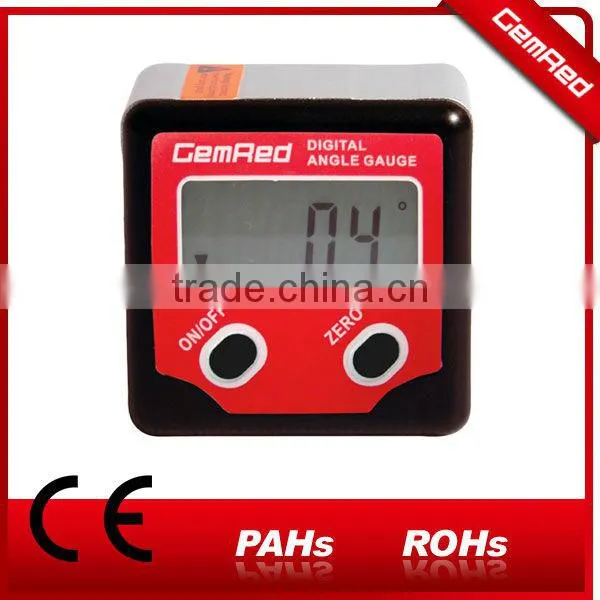

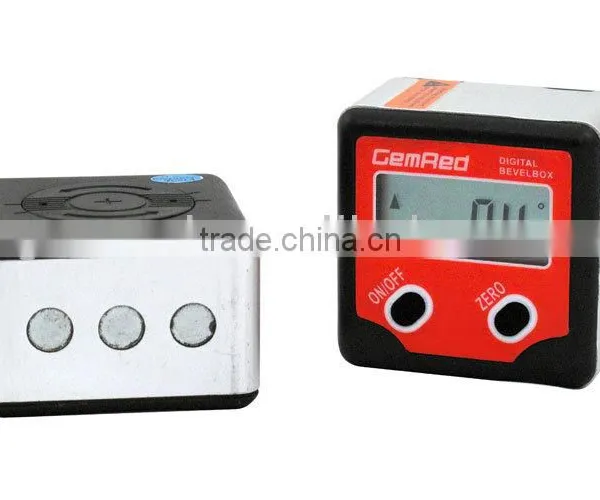

Portable 360 inclinometer mini digital protractor

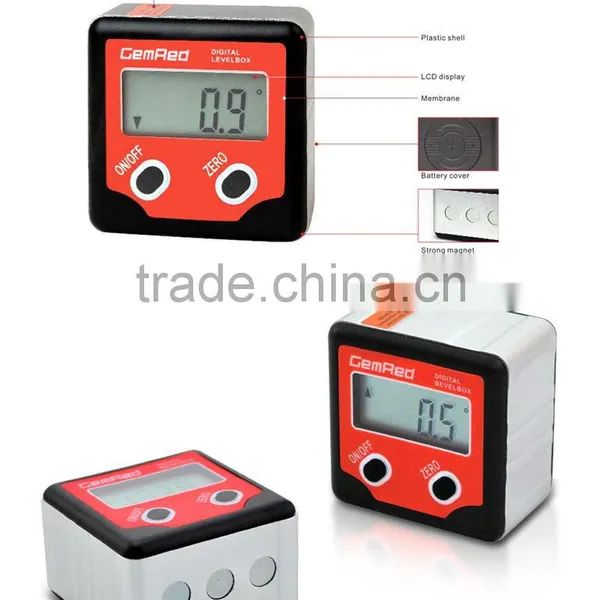

This Mini Digital protractor inclinometer provides relative and absolute measurements as well as zero setting to any position. Extra LCD on the digital protractor is convenient to read. The protractor is small and light, it is real easy to be carried and used. Measuring plane pf the digital protractor contains disk magnet which can be attached to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair and so on.

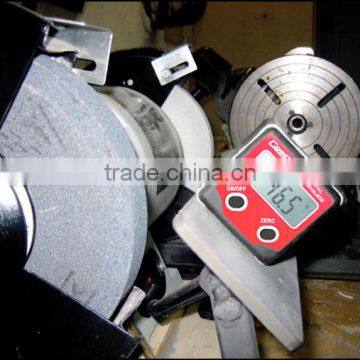

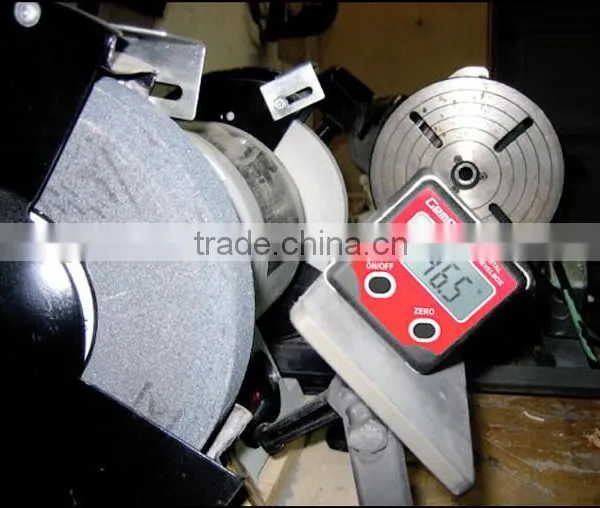

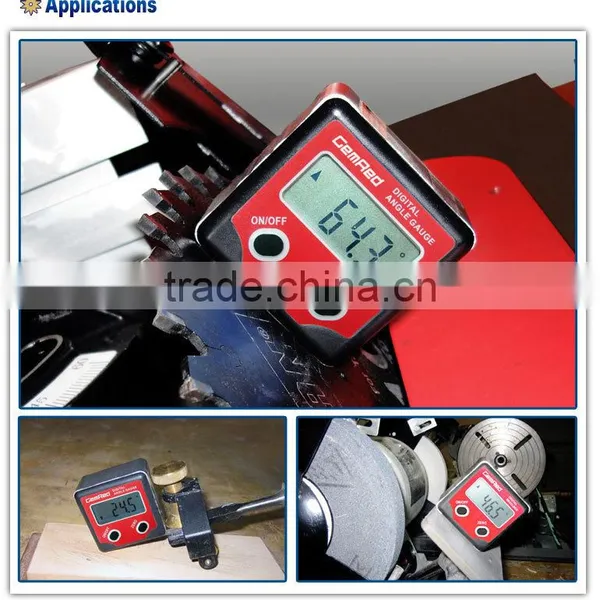

Applications of mini digital protractor
² Setting blade angle of Miter Saws
² Setting blade angle of Circular Saws
² Tool setting on Lathes
² Setting workpiece angle for milling
² Drainage angles and run off slopes
² Grader and tractor work alignment
² Platform monitoring
Features of mini digital protractor
² Absolute and Relative measurements
² with wide measuring range of ±180° (0 ~ 360°) with ± 0.1 Repeatability

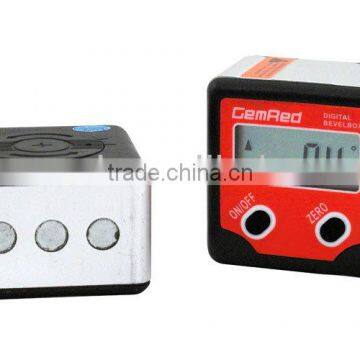

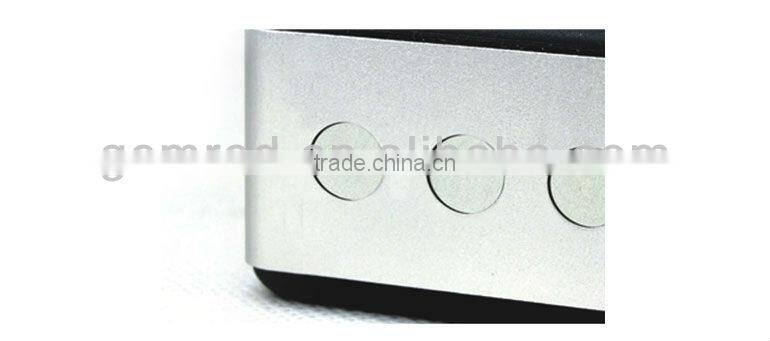

² 3 Powerful built-in magnets on the base secures the attachment to any metal surface
² Easy-read large readout LCD display
² Light weight with compact design
² Fast and accurate measurements are guaranteed
² Zero button easily calibrates to any reference surface
² Auto power off after 5 minutes of no operation
Technical Data of mini digital protractor
Resolution | 0.1° |
Repeatability | ±0.1° |
Measuring range | ±180.00°(0°~360°) |
Waterproof | IP54 |
Power | 3V CR2032 Lithium battery |
Working current | <100μA |
Weight | Approx 118g |
Dimension | 2” ×2” ×1.3” |
Package Inf of mini digital protractor
Package | Color box |
Accessory | Instruction, leather pouch, 3V CR2032 Lithium battery |
Size of unit package | 70*45*95mm |
Unit weight with package | 176g |
