Telescopic Tube1. Short lead time: 35 days.
2. Factory price
3. OEM welcomed
4. ISO 9001:2008

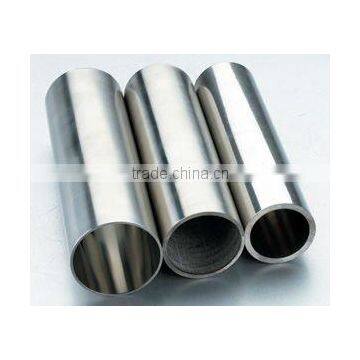

Product Name: Telescopic Tube
Alloy, Chemical Composition and Mechanical Property of K&B Metal Aluminium 7000 Series
Alloy No. | Chemical Composition | Al Content ≥ | Temper | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hard (HB) | ||||||||||
Si | Mg | Fe | Cu | Mn | Cr | Ti | Zn | Others≤ | |||||||||
| Single | Total | |||||||||||||||
7005 | <0.35 | 1.0-1.8 | <0.40 | <0.10 | 0.2-0.7 | 0.06-0.20 | 0.01-0.06 | 4.0-5.0 | Zr:0.08-0.15 | 0.05 | 0.15 | Rest | T4 T5 T6 | 390 380 430 | 255 315 355 | 17 15 11 | 101 109 108 |
7050 | <0.12 | 1.9-2.6 | <0.15 | 2.0-2.6 | <0.10 | <0.04 | <0.06 | 5.7-6.7 | Zr:0.08-0.15 | 0.05 | 0.15 | Rest | T73511 T7451 T7651 | 496 524 552 | 434 469 490 | 12 11 11 | 132 140 147 |
7075 | <0.40 | 2.1-2.9 | <0.05 | 1.2-2.0 | <0.30 | 0.18-0.28 | <0.20 | 5.1-6.1 | Ti+Zr<0.25 | 0.05 | 0.15 | Rest | T6 T73 | 570 505 | 505 435 | 11 — | 150 140 |
Payment and Shipping Terms for Telescopic Tube :
Sample Lead time: 15-18working days include 7-10days making tooling if it's necessary.
Production lead time: 10-20working days.
Payment term:
1. Tooling: 100% prepaid by T/T
2. Parts: 30% upon order confirmation and balance before delivery by T/T.
3. Other payment terms can be discussed.
Shipping Term: FOB, CIF or others can be discussed.
Products Line for Telescopic Tube :
Item | Series | Products | Alloy |
Series Alloy Product | Drawn Seamless Tube | Bike Suspension Tube | 7050-T651 / T7651 |
Motorcycle Suspension Tube | 6082-T651 | ||
Baseball Bat | 7001 / 7050 / 7046 | ||
Steady Material for Optical Equipment | 5056-H32 | ||
Ski Pole, Trekking Pole | 7075-T6 | ||
Arrow Tube | 7075-T6 | ||
Carabineer | 7075-T6 | ||
Hockey Stick | 7075 / 6082-T6 | ||
Aluminium Exturusion | Large Profile | Large Aluminum Tube | 6061-T6 / 6063-T6 / 3003-32 / 3003-34 / 3003-T0 |
Extrusion Profile | Special Profile | 7075-T6 / 2024-T4
|
Key special features:
Alloy: 1050, 2011, 2017, 2024, 6061, 6063, 7075, 7A04 and 7A09
Process of cold drawn is available.
Seamless
Temper: O, F, H112, T4, T5, T6, T3 and T8
Diameter: outer: 9- 500 mm
Inner: 8-450mm
Thickness: 0. 5 -50 mm
Customized lengths are accepted (not more than 12000mm)
ASTM BS and EN Standard
Finish: mill finish, anodized, powder coated, electrophoresis, sand blasting Etc.
Color available: silver, champagne and so on, depends on your demand
Type: square, round, rectangular
Procedure: extruding, cutting, coating, packing.
Standard: ASTM BS and EN Standard, ISO9001:2008
If the dimensions you required are not listed in above table, please contact us directly. We’ll do some adjustment according to your requests and try our best to meet your requirements.
