AS908 Compact wheel loader CS908 hydrostatic with 4-way quick hitch and variable piston pump

Name: AS908 Compact wheel loader CS908 hydrostatic with 4-way quick hitch and variable piston pump
Brand: ANSION
Availability: InStock

FOB Price

USD $8,800 - $9,200 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Qingdao Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	AX908	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	405015502450MM	Rated Load	800 kg
Certification	CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

ANSION Compact wheel loader AX908 with hydrostatic transmission

Main Features

1) Hydrostatic transmission with best Variable piston pump

2) USA EATON Motor
3) Hydraulic 4x4 drive axles
4) Standard European quick hitch with 4-ways pump
5) New-type parallel lift work device
6) USA Goodyear pipelines
7) CHANGCHAI or Japan Yanmar engine

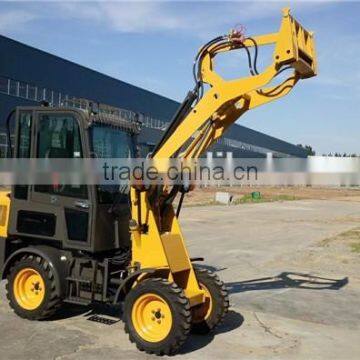

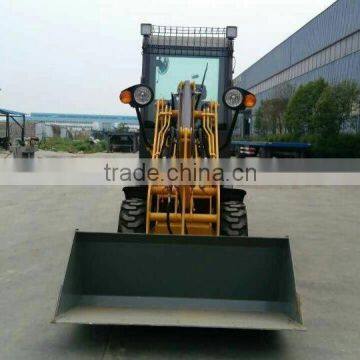

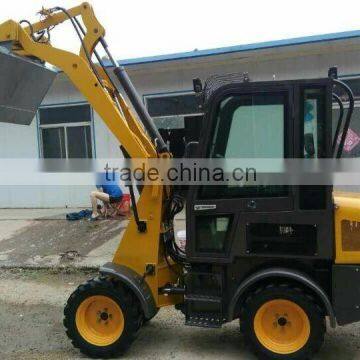

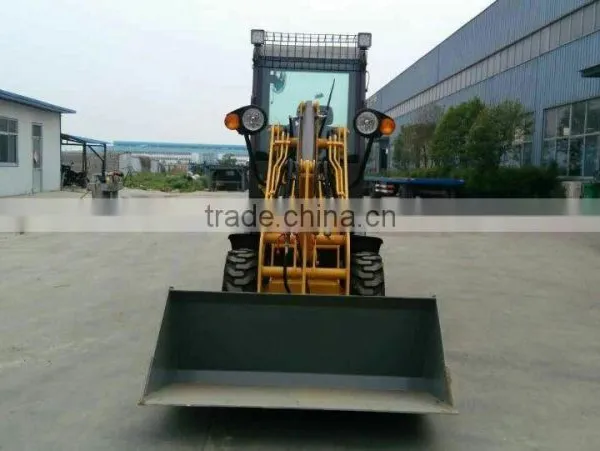

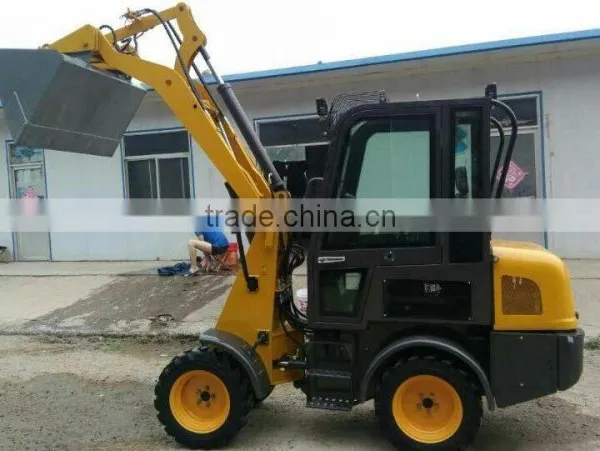

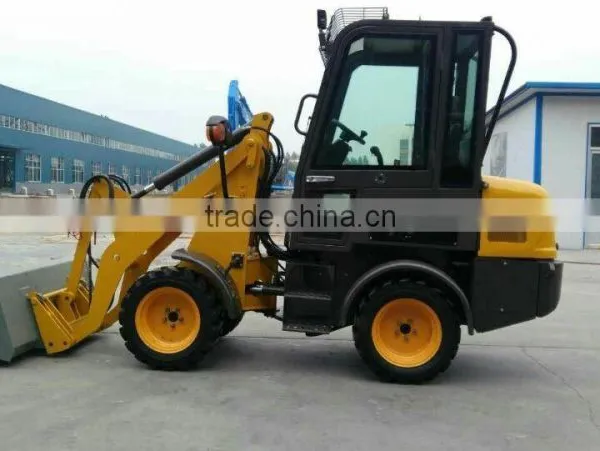

Real Picutres Show

Main Specification

Item	Specification
Kerb weight	2650kg(CS910J 2750kg)
Rated bucket capacity	0.4m³
Rated load	800kg
Max. tractive force	15kN
Max. breakout force	15kN
Max. gradeability	30%
Max. dumping height	2000mm
Dumping distance	741mm
Overall dimension(LWH)	412012902310mm
ENGINE
Model	ZN390G
Type	Inline, direct injection, water cooling
Rated power	20kW
Optional	Yanmar
Rated power	18.4 kW
Displacement	2.19L
TRANSMISSION SYSTEM
Hydrostatic transmission	Invariable pump, variable motor
Type of gear box	Axis-fixed, double reduction
Gear shift	2 forward shift, 2 reverse shift
Max. speed	12km/h
DRIVE AXLE
Main transmission type	Spiral gear, first stage deceleration
TYRE
Type specification	27*8.5-15
Optional
STEERING SYSTEM
Type	Articulated load-sensing hydraulic steering system
Steering angle	32°each side
Min. turning radius	3790mm
HYDRAULIC SYSTEM
System working pressure	18MPa
Lifting time	4s
Total time	9s
BRAKE SYSTEM
Service brake	Mechanical internal expanding shoe-type
Parking brake	Manual internal expanding shoe-type
FILL CAPACITY
Fuel	14L
Hydraulic oil	20L

Attachments

Service & Warranty

1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.

2- After-sale:

We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.

3 - warranty

1 year warranty from the date of receiving the loaders.

During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.

4- packing

one set by one 40HQ (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
