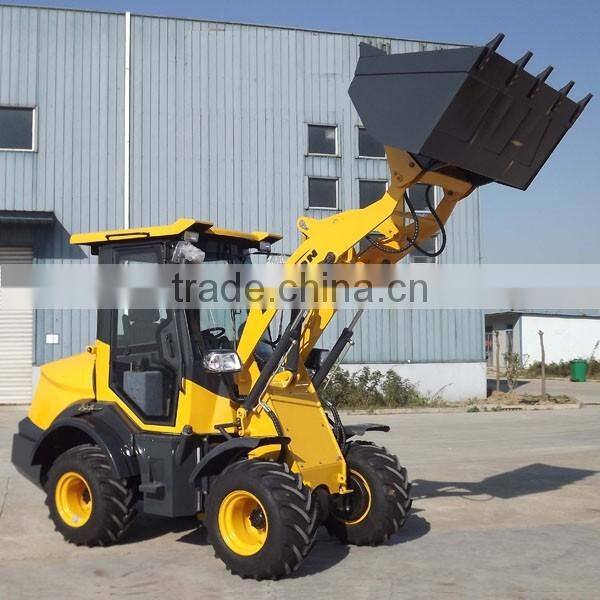

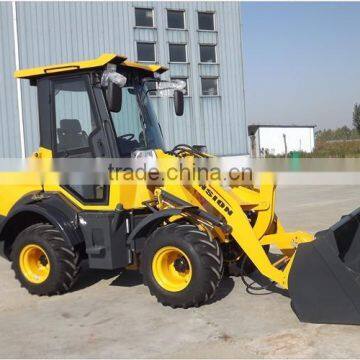

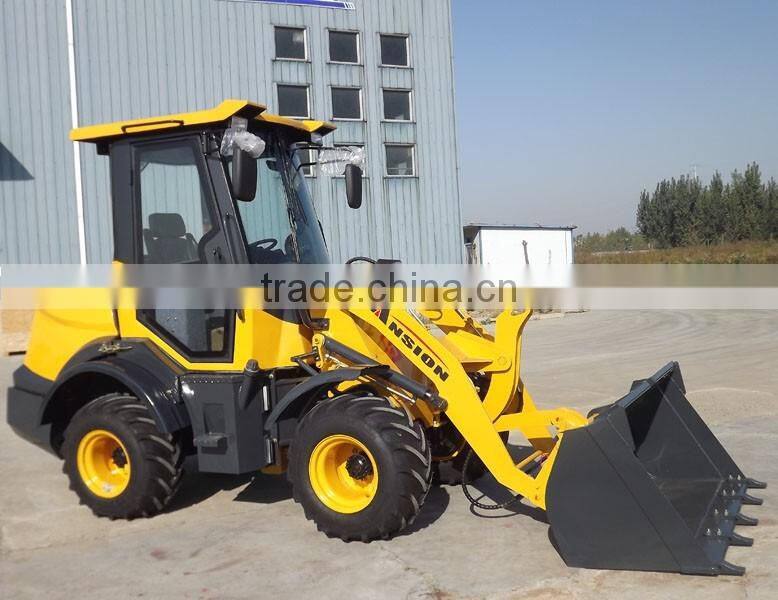

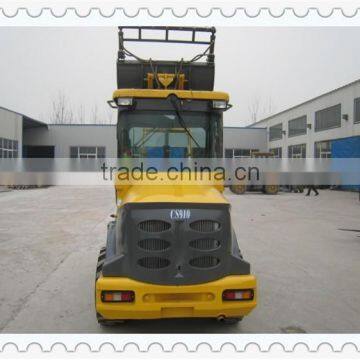

Mini loader CS910 (CE) with Electric joystick
CS910 wheel loader has the advantages of good flexbility high efficiency and easy operate which is an indispensable aide in machinery construction as well as household work. whith small turning radius, it can be used in narrow place to work.
1.Strong breakout forces, fast cycle times and aggressive performance packaged in one compact machine.
2.Superior reach, excellent visibility and low effort joystick control let you place material easily and efficiently.
3.Spacious cabs with joystick controls keep you comfortable throughout the work day.
4.Ride Control option provides an even more comfortable ride and greater material retention over rough terrain.
| Item | Specification |
| Kerb weight | 2650 kg |
| Rated bucket capacity | 0.5 m3 |
| Rated load | 1000 kg |
| Max. tractive force | 20 kN |
| Max. breakout force | 20 kN |
| Max. gradeability | 30% |
| Max. dump height | 2262 mm |
| Dump distance | 741 mm |
| Overall dimension (L*W*H) | 4113*1520*2323 mm |
| Engine | |
| Model | B490BT1 |
| Type | Inline, direct injection, water cooling |
| Rated power | 32.4 kW |
| Optional | Yanmar Euro III |
| Rated power | 25.4 kW |
| Displacement | 2.19 L |
| Transmission system | |
| Hydrostatic transmission | Invariable pump, variable motor |
| Type of gear box | Axis-fixed, doule reduction |
| Gear shift | 2 forward and 2 reverse shift |
| Max speed | 24 km/h |
| Drive axle | |
| Main transmission type | Spiral gear, first stage deceleration |
| Tyre | |
| Tyre specification | 10.0-16.5 |
| Optional | 12.0-16.5 ; 31*15.5-15 |
| Steering system | |
| Type | Articulated load-sensing hydraulic steering system |
| Steering angle | 32°each side |
| Min. turning radius | 3879 mm |
| Hydraulic system | |
| System working pressure | 22 MPa |
| Lift time | 4 s |
| Total time | 9 s |
| Brake system | |
| Service brake | Mechanical internal expanding shoe-type |
| Parking brake | Manual internal expanding shoe-type |
| Fill capacity | |
| Fuel | 17 L |
| Hydraulic oil | 23 L |
QINGZHOU ANSION MACHINERY CO.,LTD. is a professional factory of heavy earthmoving machinery including wheel loader, front end loader, mini loader, backhoe loader, skid steer loader, forklift truck and other construction equipments.
Our main products include :
• Mini loader ZL10F ZL16F ZL20F (0.5-1.1m3 bucket and 65kW engine)
• 3tons Wheel loader ZL25F ZL28F ZL30F ZL35E (1.3-2.0m3 bucket and 92kW YUCHAI/DEUTZ/CUMMINS engine)
• 4tons Wheel loader ZL40F (2.0-2.5m3 bucket and 129kW DEUTZ/CUMMINS engine)
• 5tons Wheel loader ZL50E ZL50G (3.0m3 bucket and 162kW WEICHAI/CATC6121/CUMMINS engine)
• 6tons Wheel loader 966H (3.5m3 bucket and 162kW CAT C6121 engine and ZF 4WG180 electric transmission)
• 7tons Wheel loader 973T (4.0m3 bucket and 175kW CUMMINS engine and ZF 4WG200 electric transmission)
• backhoel loader WZ10-10 WZ45-16 WZ30-16 WZ30-25 SAM388
• Skid Steer Loader 650D / 980 / 1605A
• 1-10tons Forklift Truck (Diesel / Gasoline / LNG / Electric)
1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
one set by one 40HQ (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
