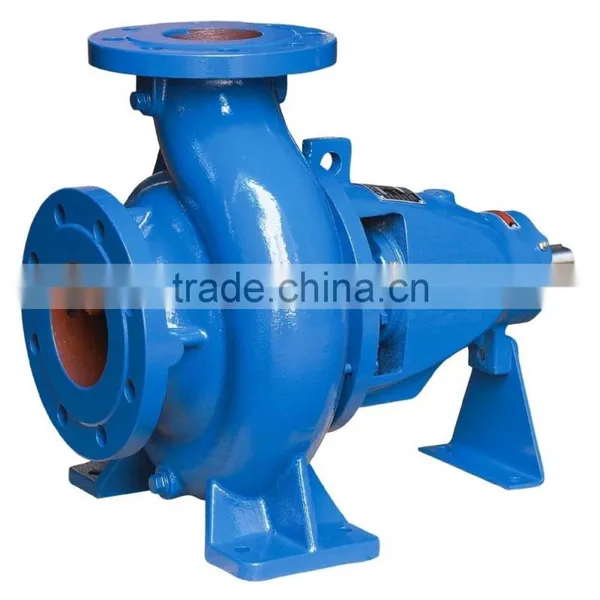

Horizontal Single Stage Centrifugal Water Pump IS80 IS50 High Flow

IS series single stage single suction pipeline centrifugal pumps are designed utilizing domestic excellent hydraulic model, and base on different working conditions of various users, applicable for cold and hot water, high temperature the corrosive environment, oil transporting and etc.

Water supply in industry, cities and high-rises, transport water from far away, cold and hot water circulation in air-condition, fire fighting pipeline pressurizing, pressurizing transport in industrial circulating system, and all kind of water supply equipments, boiler etc.

The series of products have the characters of saving power, low noise, reliable performance, etc.

Application

1. Transport pure-water and other liquids, the physical properties of which are similar to those of pure-water, in industrial and cities' water supply and drainage, high buildings' booster water supply, gardens irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold and hot water in bath rooms as well as in completion of equipments, the operation medium temperature is below 80C.

2. For the warming hot-water booster circular system and the heat transport system of production technology in the units where heat-supply systems are available, such as the power station, thermal power station, residual hest utilization, metallurgy, chemistry, textile, wood-processing, paper-making etc. industrial boilers' high-temperature hot-water, the operation temperature is below 120C.

3. Chemical pump is used to transport the liquids containing no solid grain, corrosive and the viscosity of which is similar to water or the departments of light and textile industry, petroleum, chemical industry, metallurgy, electricity, paper-making, food, medicine and synthetic fiber etc., the operation temperature is -20C~120C

Working Condition

1. Suction pressure <= 1.0MPa, or the maximum working pressure of pump system <=1.6MPa, i.e. pump suction pressure + pump head <=1.6MPa, and pump static test pressure is 2.5MPa. Please specify the system working pressure when placing an order. If the working pressure of pump system is to be greater than 1.6MPa, then it should be specified separately when placing an order for our convenience to use cast steel material for wetted parts and joints.

2. Ambient temperature<40°C, relative humidity<95%.

3. The volumetric content of solid particles in the medium to be handled shall not exceed the 0.1% of unit volume, and the granularity shall be<0.2mm.

Remark: To handle medium containing small particles, please specify when placing an order for our convenience to use wear resisting mechanical seal.

Structures:

Parameters:
