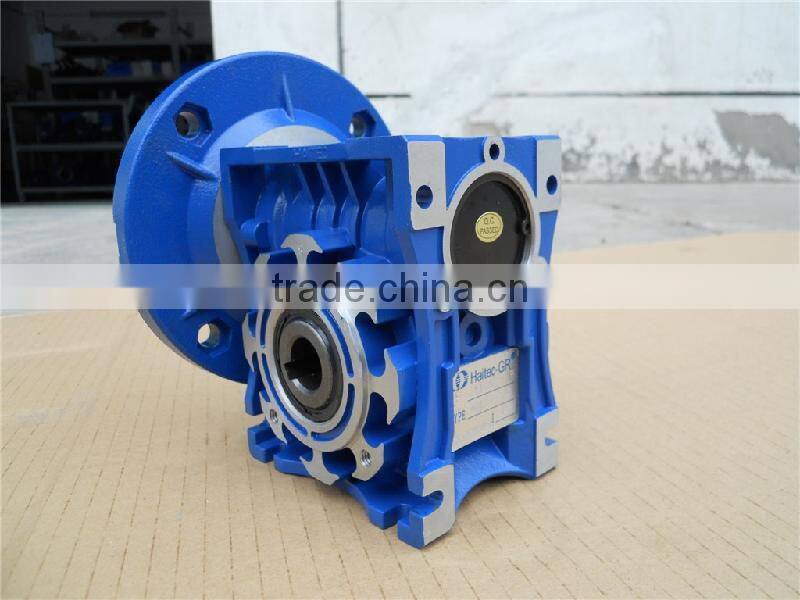

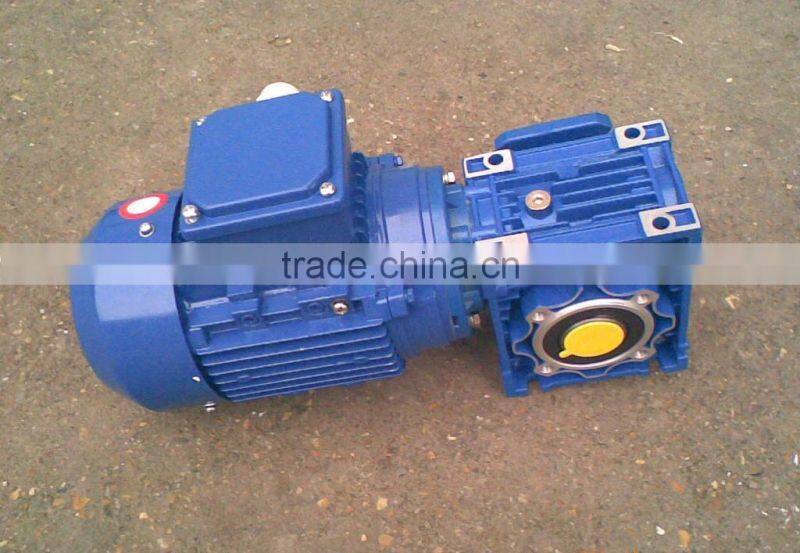

Aluminum Worm Gearbox / RV, NMRV
- Main port of China
- T/T L/C D/P D/A Credit Card
You May Like
-
NMRV/RV/WPS/WPW/WPA/WPDS worm gearbox/reducer
-
B series industrial helical bevel gear speed reducer grease nipple on inspection cover
-
H series industrial helical gear speed reducer motor scoop with V-belt drive
-
H industrial heavy dute speed reducer can be designed
-
Heavy Duty High Power Industrial Right Angle Bevel Helical Gearbox Speed Gear Reducer
-
ZSY series parallel shaft hard tooth surface 3 reduction reverse walking gearbox
Product Details
Place of Origin | Shandong, China | Brand Name | WAN XIN | |
Model Number | RV/NMRV worm reducer | Gearing Arrangement | Worm | |
Output Torque | 160-18000N.m | Rated Power | 0.06-15KW | |
Input Speed | 0---1500rpm | Output Speed | 14---280rpm |
Product Description
Specifications
Aluminum Worm Gearbox / RV, NMRV15 years specializing in the production
Excellent design
ISO9001-2008

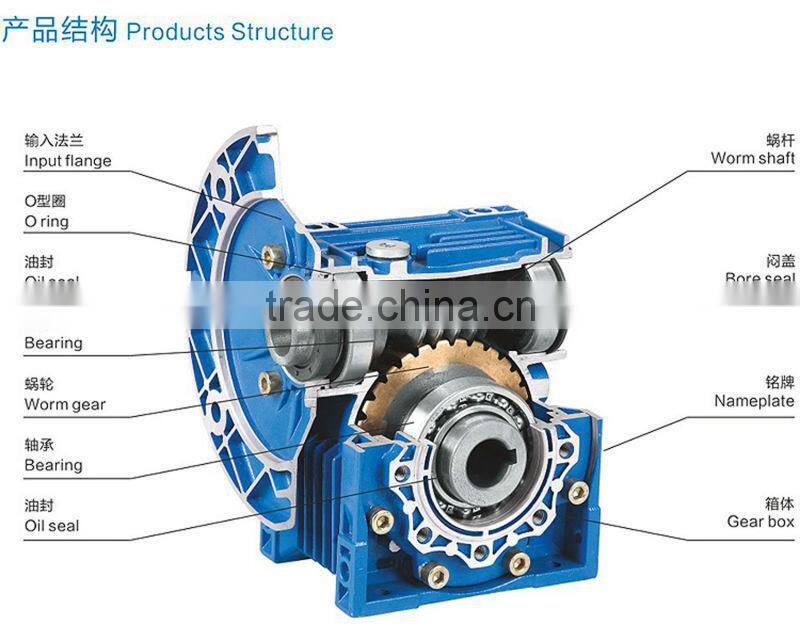

Aluminum Worm Gearbox / RV, NMRV
1.Worm:20CrMnTi
2.Worm wheel:wearable stannum bronze
3.Carburize heat treatment,hardness of gear's surface:56-62HRC
Technical data:
1) Aluminium worm reducer ranging from 025 to 090
2) Speed ratio: 11 kinds, ranging from 5 to 100
3) Input power: ranging from 0.06 to 15kW
4) Output torque ranges from 2.6 to 1,074N.
Characteristics:
-Made of high quality die casting aluminum alloy housing, suitable for universal mounting.
- Heat sink design for cooling provides great surface area and higher thermal capacity than the casting iron housings.
- 8 sizes from 030 to 130, with power scope rom 7.5w to 60kw.
- Larger speed ratio range. each single frame size has 12 ratios from 5:1 to 100:1.
- Hardened worm with fine grinding has the features of higher efficiency and big output torque.
- Low noise and stably running, can adapt long term work condition in terrible environments.
- Light weight, high mechanical strength.
Shipping standard wooden box:
1. Have many years of production experience.
2. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.
3. Professional engineers for your design, drawing, ensure the quality of production if non-standard products.
4. The photos and films of prosuction process will be reported to you.
5. The Warranty period is 12 months.
1. Payment Term: 30% TT in advance+70% balance before shipment or total advance.
2. The remitter is responsible for the remittance charge.
3. The working time is about 20 days from receive payment.
Our company specializes in producing high quality gear transmission equipment, pumps, mining equipment, chemical products, various kinds of ceramic & glassware.
We are close to Qingdao Port, and we enjoy a comfortable environment and convenient transportation access. Our factory is equipped with high precision processing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality water treatment chemical aluminum sulphate and so on. Our products conform to international standards, such as ISO9001:2008, and are also authorized by SGS. Meanwhile, OEM and ODM orders are welcome.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
