Specifications
NMRV/RV/WPS/WPW/WPA/WPDS worm gearbox/reducer15 years specializing in the production
Excellent design
ISO9001-2008
NMRV/RV/WPS/WPW/WPA/WPDS worm gearbox/reducer
Specifications:
Worm gearbox is widely used in turbines,shaft liners and axletrees:
Performance and characteristics:
1. A basic input shaft connection mode type (single-and dual-input shaft input shaft), with motor flange two.
2. The basic structure of the output shaft type (single output shaft, dual output shaft) and the hollow output shaft two.
3. Output, input shaft position and direction of the input shaft on the next; output axis up and down; input axis up and down.
4. Can be 2 or 3 sets of gear reducer composed of multi-level, to get great gear ratio.
Product overview:
The WPA type worm gear reducer, which has the advantages of compact structure, convenient installation, stable and reliable, no working noise (especially the single head worm), self-locking and so on.
The speed reducer is widely used on the equipment smaller industry mining, lifting, transportation, chemical industry, light industry and so on.
Conditions of use:
1. The sliding velocity of worm gear is not greater than 7.5m/s;
2. high speed shaft speed of not more than 1500 rpm.
3. Work environment temperature of -40 °C ~ 40 °C
4. can be positive and negative two to run.
Product features:
1, the structure as a whole, beautiful appearance, good rigidity.
2, box type has a basic type (box with bottom plate of vertical or horizontal two structure) and universal (the box body is a cuboid, polygon is provided with a fixing screw, without bottom board or other bottom board and so on many kinds of structure types)
3, the input shaft connection mode has a basic type (single input shaft and double input shaft), with the motor flange two.
4, the output shaft structure has a basic type (single, double output shaft output shaft) and the hollow output shaft two.
5, the output, the input shaft position direction of input shaft and output in the axial direction; and the downward axial upwards and downwards; input.
6, 2 or 3 sets of reducer multistage speed reducer, in order to obtain the maximum transmission ratio.
Models:
WPA 40,50,60,70,80,100,120,135,147,155,175,200,250
Welcome to request catalog and more parameters from us.
Standard Wooden case:
2. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.
3. Professional engineers for your design, drawing, ensure the quality of production if non-standard products.

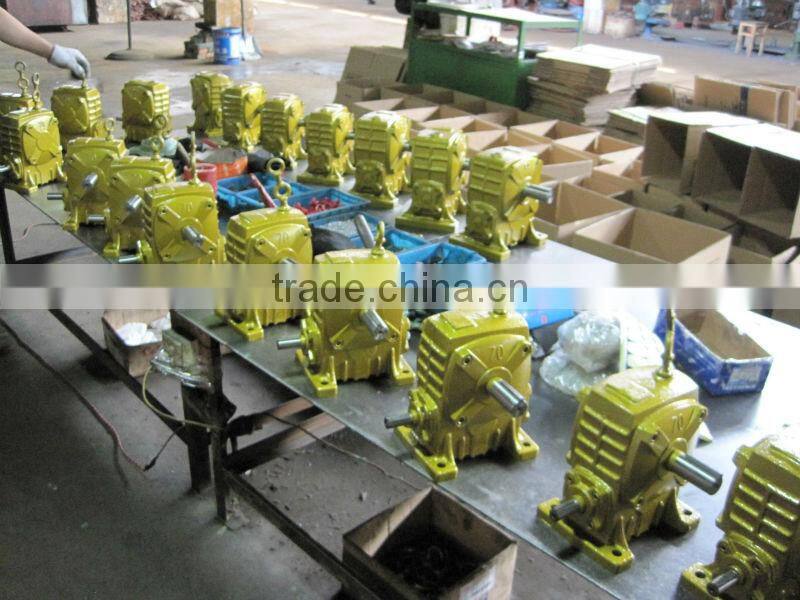

4. The photos and films of prosuction process will be reported to you.
5. The Warranty period is 12 months.
1. Payment Term: 30% TT in advance+70% balance before shipment or total advance.
2. The remitter is responsible for the remittance charge.
3. The working time is about 20 working days from receive payment.
Company Information
Our company specializes in producing high quality gear transmission equipment, pumps, mining equipment, chemical products, various kinds of ceramic & glassware.
We are close to Qingdao Port, and we enjoy a comfortable environment and convenient transportation access. Our factory is equipped with high precision processing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality water treatment chemical aluminum sulphate and so on. Our products conform to international standards, such as ISO9001:2008, and are also authorized by SGS. Meanwhile, OEM and ODM orders are welcome.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
