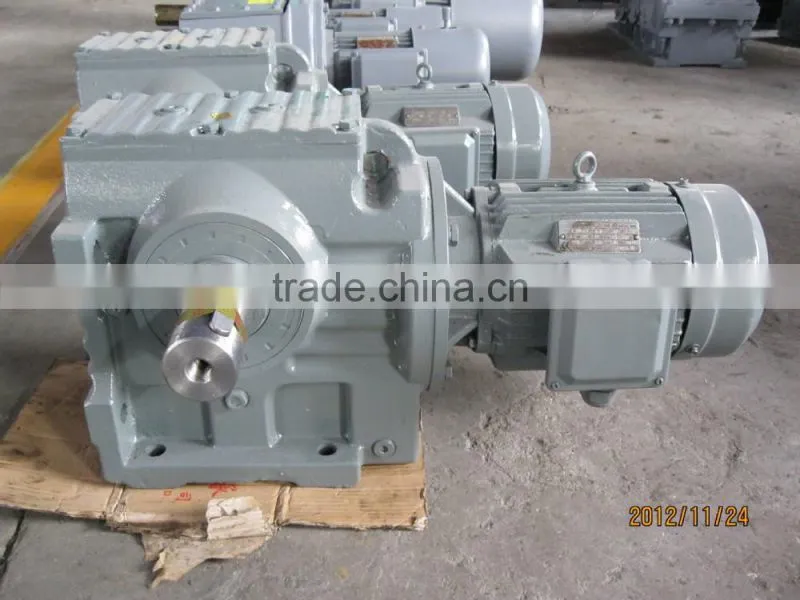

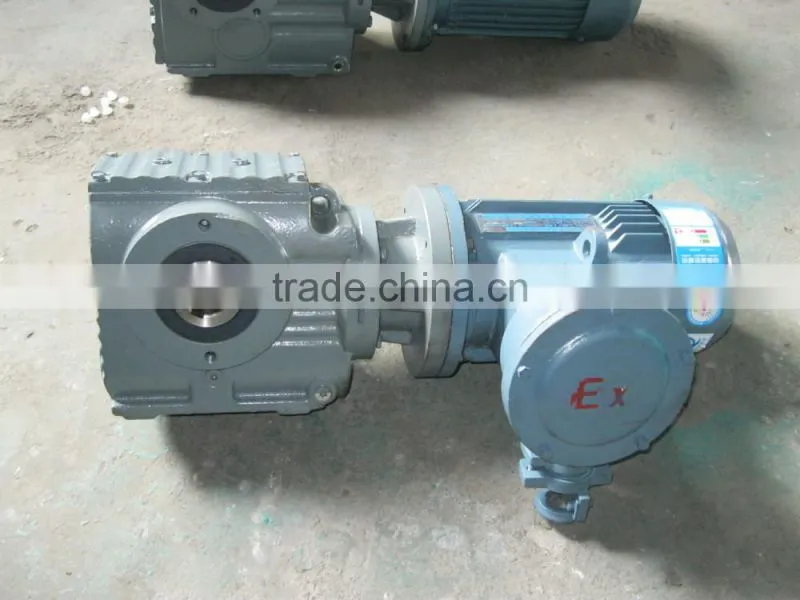

SEW style's S series 90 degree shaft helical worm gear reducer motor reducer

Specifications

1.Pass ISO9001:2008, SGS
2.Capacity: 12000pcs per year.
3.low noise, excellent efficiency

- Structures: foot-mounted, flange-mounted, hollow shaft output or solid shaft output, with or without motor, with torque-arm lever, shaft-input type for sprocket or pulley;



- Has self-locking function like backstop;



- Modularization design: parts of gearbox owns high exchangeability, coupling between gearbox and motor is standardized(usually IEC standard);



- Transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;



- Worm wheel made of high-quality Tin Bronze ZCuSn10Pb1, output shaft made of high-quality low-carbon alloy steel 40Cr, the gearbox housing made of high-strength casting iron HT250, may also adopt material as requested;



- High efficiency up to 98%per stage, low noise <60-70dB, and temperature rise <45-55°C;



- Gears and gear shafts through carburizing and quenching then fine profile grinding process, gearbox housing through aging treatment then annealing to relieve stress twice, therefore the bearing capacity very high;



- Best China bearings used on products, may apply other bearings like SKF, NSK and FAG, and double-lip oil seal make sure no oil leak;



- May custom different models according to clients' requirement;



- Every gearbox 100 percent tested prior to delivery.

Size	37	47	57	67	77	87	97
Structure	S   SA   SF   SAF   SAT   SAZ
Ratio	6.80-157.43	7.28-201	7.28-201	7.56-217.41	8.06-256.47	11.8-222.0	8.26-286.4
Maximum torque (Nm)	90	170	300	520	1270	2280	4000



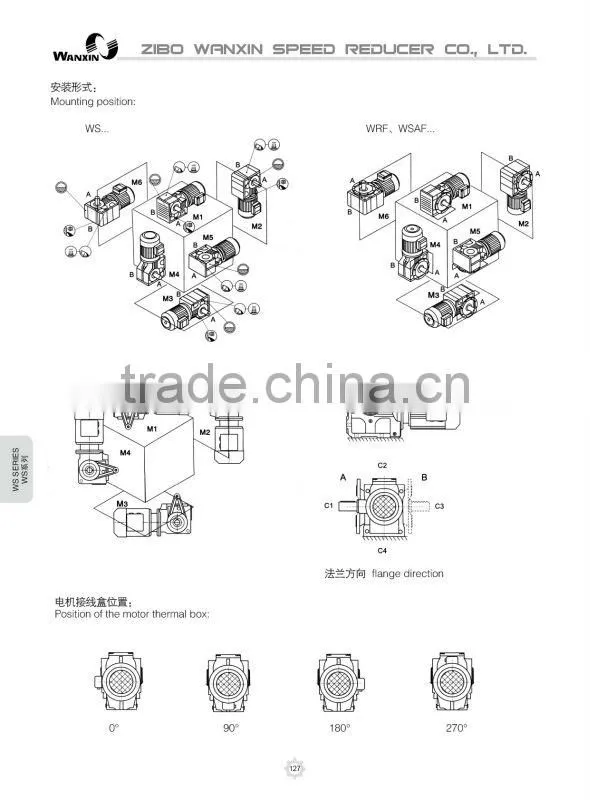

Mounting positions





Zibo XinWan Group is dedicated to all kinds of construction machinery and equipment companies. The main production and operation of submersible pumps, vacuum pumps, sand production line, reduction gearboxes.



With 15 years of reducers production, powerful technical force, and complete inspection measures, quality Management System is in conformity with GB/T19001-2000-ISO9001:2000 standard.
