Specifications
1.Long work life2.Running Smoothly
3.Low nosie
4.High efficiency
5.15 years manufacturing experience

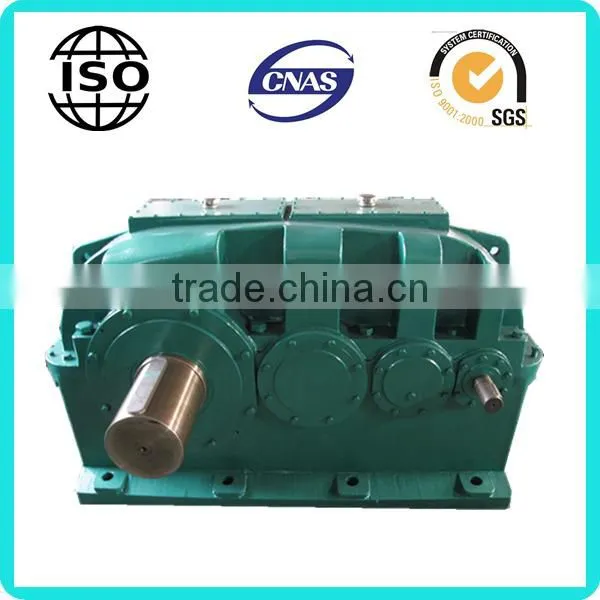

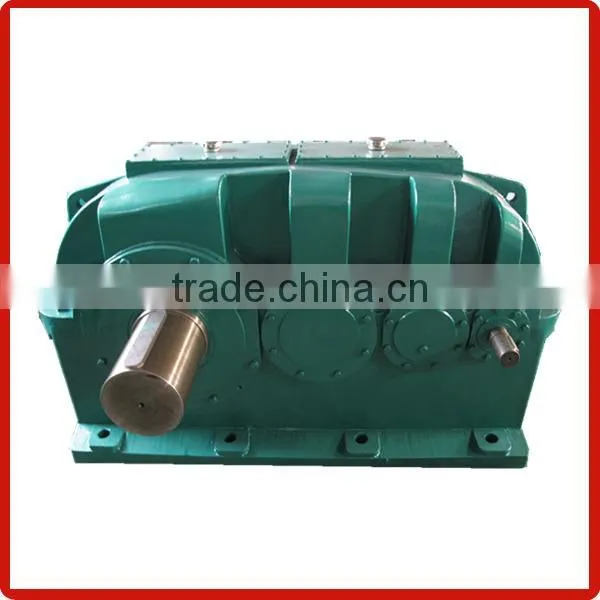

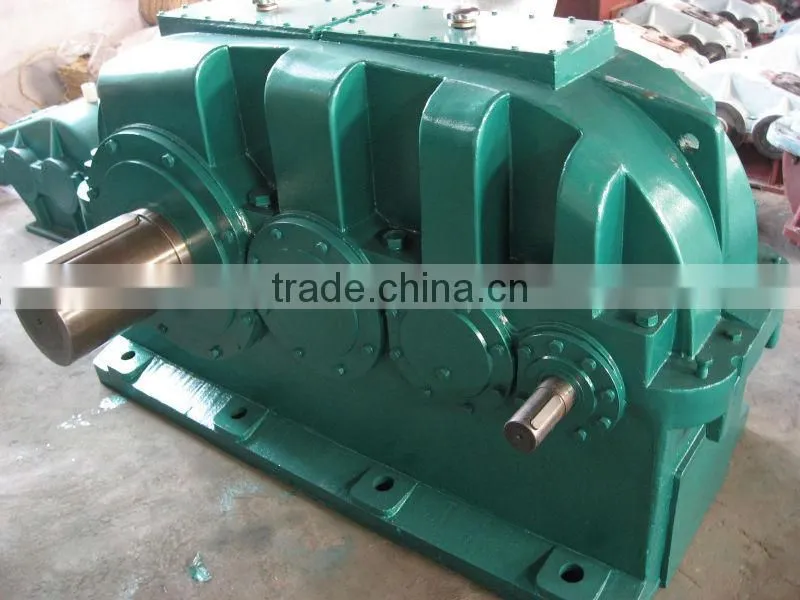

ZSY series Cylindrical Helical Gearbox,Horizontal Gear Reducer for Shredder
Model No.:
ZSY160 ZSY180 ZSY200 ZSY224 ZSY250 ZSY280 ZSY315 ZSY355 ZSY400 ZSY450 ZSY500 ZSY560 ZSY630 ZSY710
Product overview:
Hardened reducer is widely used in metallurgy, mining, lifting, transportation, cement, construction, chemical, textile, printing and dyeing.Field Hardened reducer, pharmaceutical etc.. Hardened reducer, a power transmission mechanism, the gear speed converter, motor rotating number reduction to rotation number, and obtain larger torque device. Hardened reducer is a relatively sophisticated machinery, use it for the purpose of increasing the torque, reduce speed, suitable for high speed shaft speed of not more than 1500 rpm, gear circumferential speed of not more than 20 m / s, the environmental working environment temperature is -40 °C - 45 °C.
Product features:
Hardened reducer gear with high strength low carbon alloy steel after carburizing and quenching into high gear, tooth surface hardness, CNC grinding technology, high precision, good contact, high transmission efficiency, stable operation, low noise; small volume, light weight, long service life, high bearing capacity; easy to remove inspection, easy to install.
1, center distance, center height, drive number priority than using priority number system.
2, the gear parameters, structure optimization design by computer.
3, gear made of high strength low carbon alloy steel after carburizing and quenching gear grinding. Tooth surface hardness is high, the precision of gear up to international standard class 6.
4, high transmission efficiency, low noise.
Scope of application:
1, high-speed shaft speed is not greater than 1500 r/ min;
2, gear circumferential speed of not more than 20 m / s.;
3, working environment temperature is -40 °C - 45 °C, if less than 0 °C, before the start of the lubricating oil should be preheated to 0 °C.
Why do so many customers choose us?
1).Competitive price
2).Perfect After-Sale Service
3).One year guarantee time
4).Various kinds of models available
5).We accept customized products as per your special requirement
6).One Year Warranty Time
We expect the win-win solution with you sincerely!
