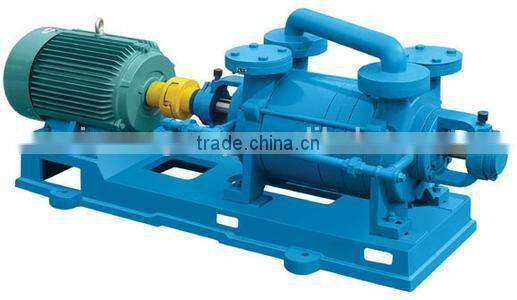

Help Center2SK Series Double-stage Air Compressor for Mining Air Compressor Pumps
Related Products
-
2SK Series Liquid Ring Vacuum Pump Two Stage Vacuum PumpUS$ 5,000 - 100,000MOQ: 1 Set -
2BV Liquid Ring Vacuum Pump Explosion-proof Pump Vacuum Pump ManufacturerUS$ 1,100 - 100,000MOQ: 1 Set
-
WQ Series 10hp Sewage Submersible Water PumpUS$ 200 - 3,000MOQ: 1 Set
-
WQ Series Electric Submersible Sewage PumpUS$ 200 - 3,000MOQ: 1 Set
-
2BV Liquid Ring Water Jet Vacuum Pump,water Ring High Quality Vaccum PumpsUS$ 1,100 - 100,000MOQ: 1 Set
Specifications
1. high vacuum, low power,high pump speed2. widely used in mining industry
3. ultimate pressure: 33mbar
Usage:
Two water ring vacuum pump or the unit is used to suction air or other water-insoluble, solid particles, non-corrosive gases in sealed containers to a certain degree of vacuum, best suited to textile, food, metallurgy and chemical industries for vacuum evaporation, vacuum concentration, vacum resurgence, vacuum drying, vacuum smelting and other processes.
Technical parameters :
2SK series double stage liquid ring vacuum pump
| type | suction amount m3/min | utmost pressure | power (kw) | rotary speed(r.p.m) | supplied water amoun(L/min) | caliber of the suction port and drain port | ||
max | when the suction pressure is 0.093Mpa, it is no less than | mmHg | MPa | |||||
| 2SK-1.5 | 1.5 | 0.9 | -730 | -0.097 | 4 | 1440 | 1015 | φ40 |
| 2SK-3 | 3 | 2 | -735 | -0.098 | 7.5 | 1440 | 1520 | φ40 |
| 2SK-6 | 6 | 4 | -735 | -0.098 | 15 | 1460 | 2535 | φ70 |
| 2SK-12 | 12 | 8 | -735 | -0.098 | 22 | 970 | 4050 | φ100 |
| 2SK-30 | 20 | 14 | -735 | -0.098 | 45 | 740 | 6080 | φ125 |
| 2SK-30 | 30 | 20 | -735 | -0.098 | 55 | 740 | 7090 | φ125 |
2SkP1 series double-stage liquid ring vacuum pump------air ejecting pump unit
| type | suction amountm3/min | utmost pressure | power (kw) | rotary speed(r.p.m) | supplied water amoun(L/min) | pump body material | |||
| when the suction pressure is 0.093Mpa(-700mmHg) | when the suction pressure is 0.097Mpa(-700mmHg) | when the suction pressure is 0.099Mpa(-700mmHg) | mmHg | MPa | |||||
| 2SK-1.5P1 | 1.05 | 0.9 | 0.75 | -750 | -0.099 | 4 | 1440 | 1015 | stainless steel |
| 2SK-3P1 | 2.1 | 1.8 | 1.5 | -750 | -0.099 | 7.5 | 1440 | 1520 | stainless steel |
| 2SK-6P1 | 4.2 | 3.6 | 3 | -750 | -0.099 | 15 | 1460 | 2535 | stainless steel |
| 2SK-12P1 | 8.4 | 7.2 | 6 | -750 | -0.099 | 22 | 970 | 4050 | stainless steel |
| 2SK-20P1 | 14 | 12 | 10 | -750 | -0.099 | 45 | 740 | 6080 | stainless steel |
| 2SK-30P1 | 21 | 18 | 15 | -750 | -0.099 | 55 | 740 | 7090 | stainless steel |
Note:
1. The value in the table is obtained under the following condition: air pressure is 0.1013Mpa760mmHg; inlet water temperature is 20; relative air humidity is 70.
2. The value is obtained when the supplied water amount is the suction pressure 0.05Mpa(400mmHg). It can be bigger than this when it reaches utmost vacuum.
3. The performance difference will not exceed ±10
