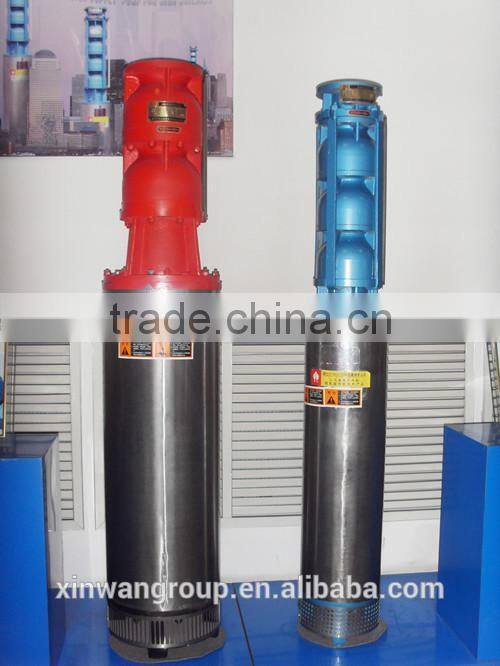

Solar powered submersible water pumps, 2 inches submersible well pump

Specifications

    Solar powered submersible water pumps, 2 inches submersible well pump

Applications:

1. Product usage: QJ series submersible motor pump for well is a complete set of equipment to draw water from deep well.It is widely used for farm irrigation,water supply and drainage in factories and mines,providing human being and animals with drinking water in plateau or mountain areas.

2.  Product form: The motor part and the pump part are connected as a whole,and the whole equipment operates under water.With compact structure and high efficiency,it is convenient to use and maintain.

3. Pump Part: At the top of submersible motor pump,the centrifugal pump is connected with motor by rigid shaft coupling.The bearing is water lubricated.The backpressure valve is fixed on the top of the pump to avoid the working parts being damaged by the returned water in pump when the submersible motor pump stops.The water in pump can flow away through the drainage hole in the valve in case the pump is broken in winter.(Note:There is no backpressure valve in low head submersible motor pump).

 4.  Motor Part: At the bottom of submersible motor pump,closed water-filled structure,guiding bearing and thrust bearing use water lubricated material.The compensation diaphragm is fixed on the bottom of motor to adjust the differential pressure caused by the ring temperature of motor.The sand-proof structure is fixed on the top of motor to prevent mud and sands to enter inside of motor.

 Operation Conditions:

1.   Power Source:Three-phase AC 380V 50HZ

2   Water temperature should not exceed 20°C

3   Solid content(weight ratio)in water should not exceed 0.01%

4   The PH value should be in between 6.5 and 8.5

5   The chlorine content should not be over 400mg/L

6   We can also design and manufacture the submersible motor pumps beyond the above conditions according to customer’s requirements

The Choice of Submersible electric Pump:

  The followig content should be understood in order to choose and operate submersible motor pump correctly:

1   Understanding all clauses mentioned in operation conditions

2   Pay attention to the diameter and the depth of well

3   Pay attention to the static water level and the flowing water level of well

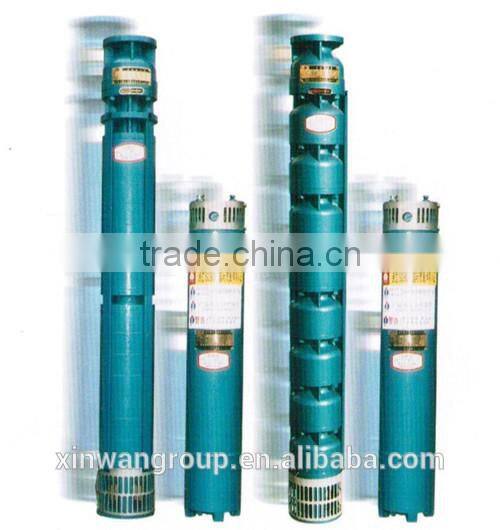

Models of QJ series Pump:

150QJ, 175QJ, 200QJ, 250QJ, 300QJ, 350QJ, 400QJ, 500QJ

Wooden case packages.

Product worranty time:  The guarantee period for equipment is one year.

Payment terms:30% advance payment before produce and 70% balance before shipment.

Why do so many people choose our product?

1. we will offer you the dest service, high quality and high precision product to you.

2.The product will following your order to producing. also can accept your special need.

3. Provide convenience to customers for the visiting to our factory as possible.

Zibo Xinwan Import&Export Co.,LTD. is a famous manufacturer of crushing and screening equipments in China. We provide our customers complete crushing plant, including cone crusher, jaw crusher, impact crusher, VSI sand making machine, mobile crusher and vibrating screen. What we provide is not just the high value-added products, but also the first class service team and problems solution suggestions.  The complete crushing plants are exported to Russia, Mongolia, middle Asia, Africa and other regions around the world.

1. Based the high quality, our machinery seldom have problems. If our machine have some trouble, our engineer and technician will solve them  in 12 hours by written.

2.  We will offer you the details about the product, welcome to contact me for more information and enquirt!!

Welcome to click me for more details and enquiry!!!
