TY1669 new design factory misting system for cooling agriculture garden sprayer,Low Pressure Misting System,Fog Machine

HAIGINT low pressure misting system

Product Description in Detail

Misting Sysem item

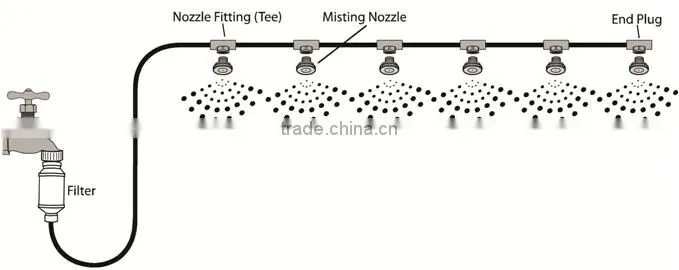

Installation Instructions

1. connect the filter to the water tap,and then connect the misting system assembly to the filter.
2. Turn on the water tap to wash the system for 1 minute to purge the system and remove any impurities.

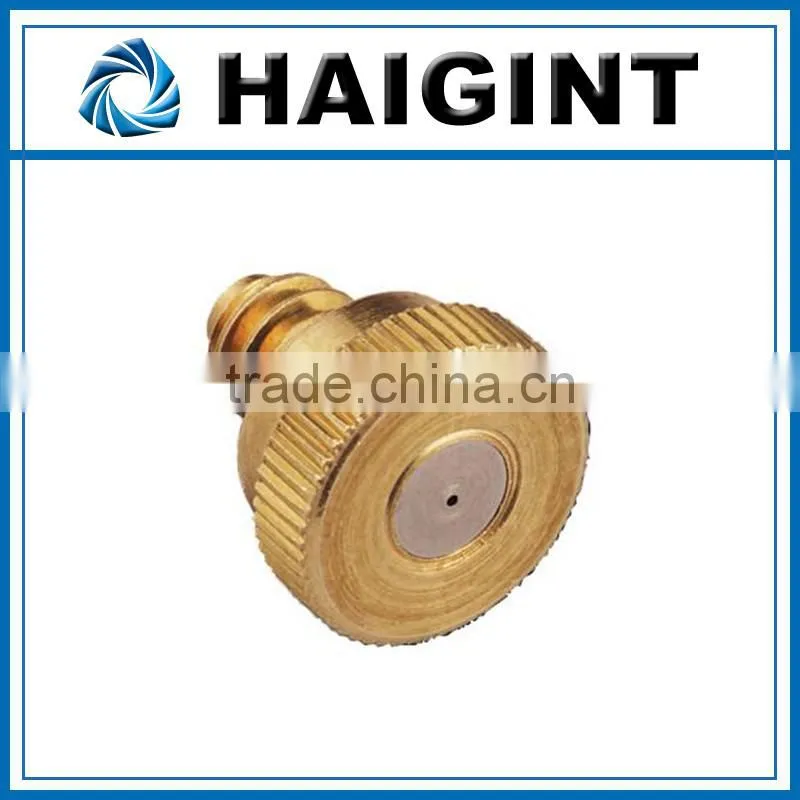

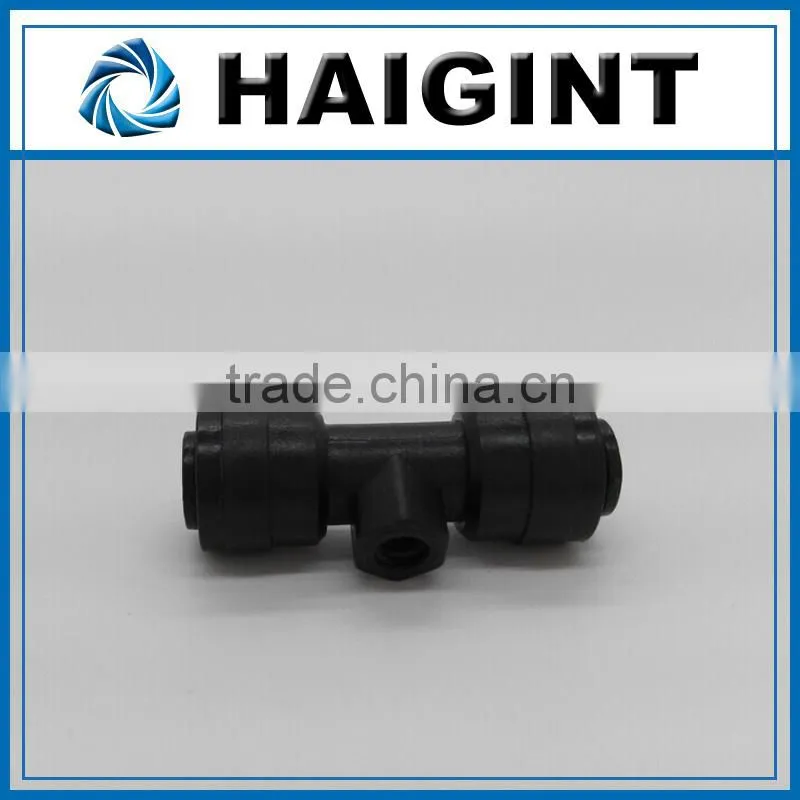

3. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.
4. Turn on the water tap to wash the system for 2 minute to insure that system is fully purged.
5. Turn the watet off and install the last nozzle into the fitting with the end plug.
6. Fix the misting line by the saddle clamps provided.
7. Turn on the tap slightly until jets are working, enjoy the cooling misting system.
8. Periodically remove the misting nozzles, and follow steps 2-5 to clean out the misting system.
9. Replace the filter as necessary.

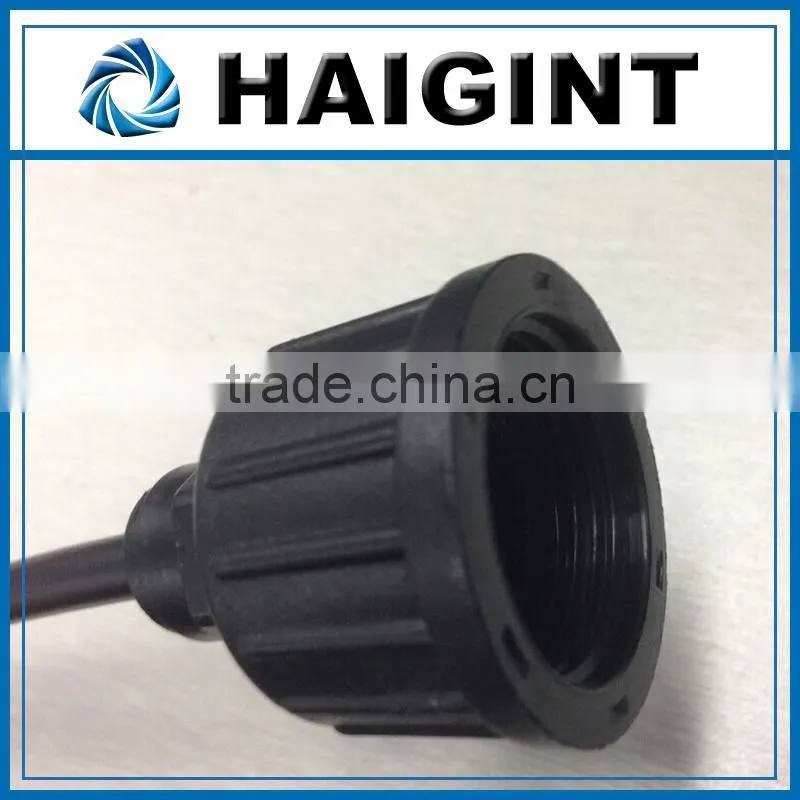

Three different misting water tap adapter

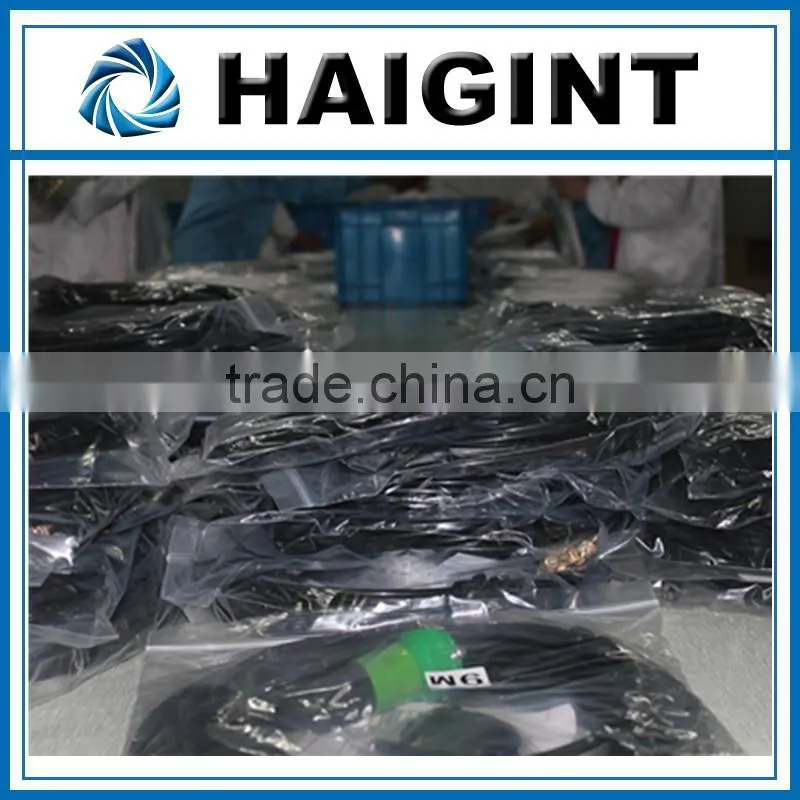

Misting System Package

Where the product is used?

A. Humidifying, cooling, noise reducing
1.Bus stations;
2.Train stationexternal;
3.Air port terminal external;
4.Entrance of shop and scenic;
5.All kinds of exhibition, expo, fair;
6.The beach, swimming pool, clubhouse...
7.Other open area;
B. Sterilizing, dedusting, mosquit & flies removing
1.Stockbreeding industry of chicken farm, Cattle Farm etc.;
2.Dump area to kill virus & bacteria and remove odor;
3.Open public place remove mosquit & flies;
4.Mining, explosion-proof remove the dust;
5.Public washroom remove odor;
6.Infectious disease & epidemic area kill virus & bacteria ;
C . Landscaping , beauty & remove haze
1.Rockery, boskage, lakes, bridge... in scenic spot;
2.Villas, townhouses & other high-end house;
3.Farm stay, shopping malls & others place for decoration;
4.Support the stage effect;
D. Watering, planting, spraying for Greenhouse, farm and garden
1.Precious flowers, plants, trees;
2.Mushrooms & seedling;
3.Vegetable greenhouse, orchards & nurseries;
4.Sunshine ecological restaurant;

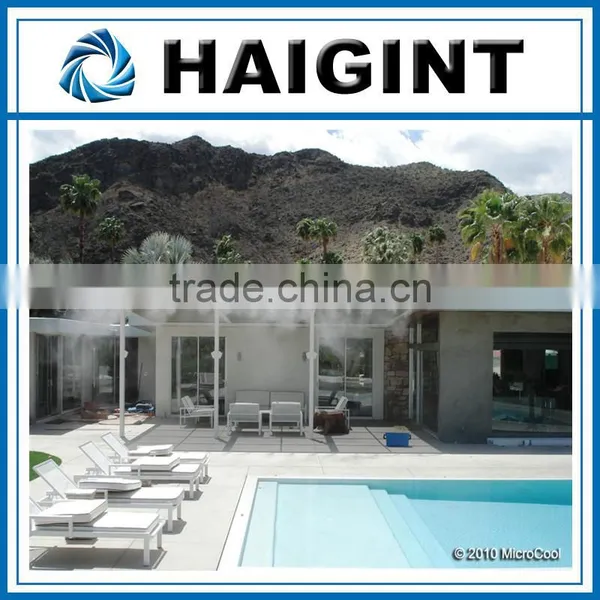

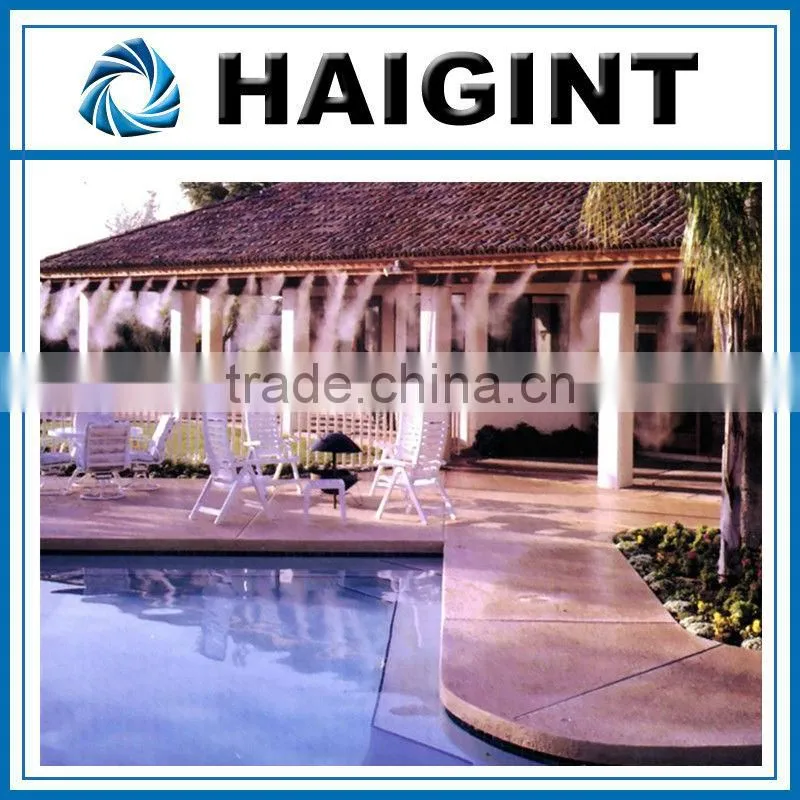

Patio misting systemscan turn your outdoor space into a peaceful oasis from the heat...even during the hottest days of the summer. So transform your hot patio into a refreshing escape from the heat with a Misting Pros outdoor cooling system. With high-pressure mist technology, our patio misting systems expand your usable space and bring wonderful relief from the heat outdoors.

This Kit includes everything for a complete misting/fogging/cooling system. They come ready to plumb into a garden hose or faucett. Great for the patio, outdoor events, pool areas, under umbrellas, around kids playground equipment, water features, animal kennals, or anywhere that needs to be cooled down misted or even greenhouses for propagation and humidification. System is designed to operate at standard pressure 30 to 450 PIS( NO BOOSTER PUMP NEEDED)! Misters should be hung 3 to 6 feet apart or above the targeted area or based upon the desired effect (modular system allows precise placement of the nozzle). Other items can be added to complement the system such as more nozzles, timers, anti drain devices (prevent the dripping from nozzles), cable ties (to secure the hose) and more. This is the same material used by many commercial companies to help cool, humidify, and even propagate. This system can be expanded for future growth, and the sprinklers are modular to allow for change if the application requires it. The pictures show a typical installation on a 6 foot spacing. The possibilities are endless with these kits. We even have some where they are used to keep certain equipment run cooler and more effecient.

Let us Know what you would like to see in our store. Contact us if there are any questions or if you need assistance in system design and/or layout.

So How Does Our Misting System Work?

When mist produced by a misting system evaporates, it instantly cools the air and reduces the temperature by up to 10°. This happens because the evaporation process needs heat. Once the mist absorbs the heat, the temperature in the greenhouse drops. You will also have the flexibilty to not only cool the Greenhouse but if you increase the presure at the tap it will provide low level watering to your pants!

Benefits Of A Misting System?

In many countries, cooling a greenhouse can be a greater problem than heating it! Keeping the greenhouse cool is accomplished by obtaining a balance of shading, ventilation and humidity. Providing the proper amount of each is the secret to a cool and functional greenhouse.

Patio misting kits can cool the summer heat quickly .

(1)used for restaurants and business locations

     cool the temperature

    beautify the environment

    attract guests

(2) used in the supermarket, fresh vegetables

(3) used for greenhouse, garden and theme park

     drop the temperature

     to be a bright landscape

(4) used in work shop ,station ,entrance port and ect.
