HAIGINT High Pressure Misting Nozzle with filter
HAIGINT high pressure misting nozzle is one necessary part for the high pressure misting system, it can spray finest mist and no dripping. With the SS filter inside the nozzle, it will never be blocked, Using the system, can cool the heat summer quickly. And create a cooling environment for you.
Standard Design
10/24 UNC Thread
Droplets from 1.2 to 47.9 Microns
1000 PSI Rated Operating Pressure
O-Ring Seal Design
Brass/Stainless Steel Material
0.04" to 0.020 orifice size
Includes anti drip adapter.
Products Specifications
| Orifice | 0.1mm |
| Material | Brass with nickle pated water mist nozzle |
| Male thread | UNC10-24 |
| Orifice material | Ceramics |
| Features | Antidrip and with SS filter |
| Water flow | 0.03L/min |
| Working pressure | 465PSI-1015PSI |
| Length | 4cm |
Advantages of high pressure misting nozzles
With filter, the water mist nozzle will never be blocked
Brass with nickle pated, will not get rusty
Finest mist, can create a cooling environment.
Antidrip valve, it is no dripping
High pressure spring, can bear 415PSI to 1015PSI
Size and working flow
| Item | Material | Orifice | Flow rate |
| PI-MNBNL-#0 | brass with nickle pated | 0.1mm (0.004") | 0.030lpm |
| PI-MNBNL-#1 | brass with nickle pated | 0.15mm (0.006") | 0.050lpm |
| PI-MNBNL-#2 | brass with nickle pated | 0.2mm (0.008") | 0.075lpm |
| PI-MNBNL-#3 | brass with nickle pated | 0.3mm (0.012") | 0.105lpm |
| PI-MNBNL-#4 | brass with nickle pated | 0.4mm (0.015") | 0.150lpm |
| PI-MNBNL-#5 | brass with nickle pated | 0.5mm (0.02") | 0.190lpm |
| PI-MNBNL-#0 | stainless steel with ceramics orifice | 0.1mm (0.004") | 0.030lpm |
| PI-MNBNL-#1 | stainless steel with ceramics orifice | 0.15mm (0.006") | 0.050lpm |
| PI-MNBNL-#2 | stainless steel with ceramics orifice | 0.2mm (0.008") | 0.075lpm |
| PI-MNBNL-#3 | stainless steel with ceramics orifice | 0.3mm (0.012") | 0.105lpm |
| PI-MNBNL-#4 | stainless steel with ceramics orifice | 0.4mm (0.015") | 0.150lpm |
| PI-MNBNL-#5 | stainless steel with ceramics orifice | 0.5mm (0.02") | 0.190lpm |
Please tell us item and material, that is OK
Any question, please feel free to contact us.

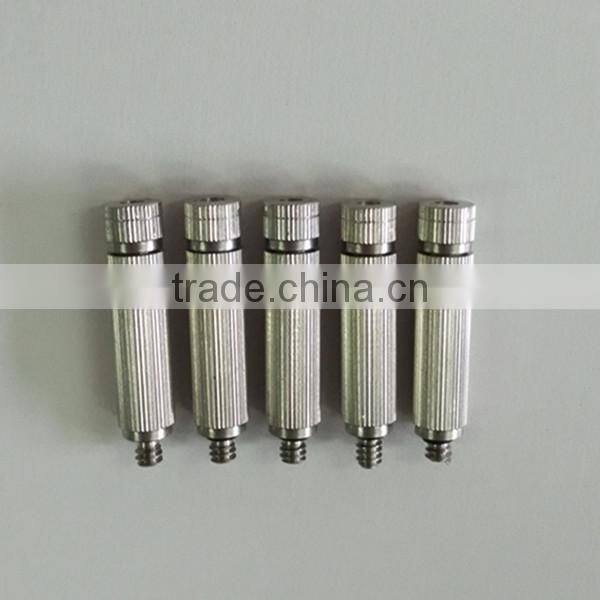

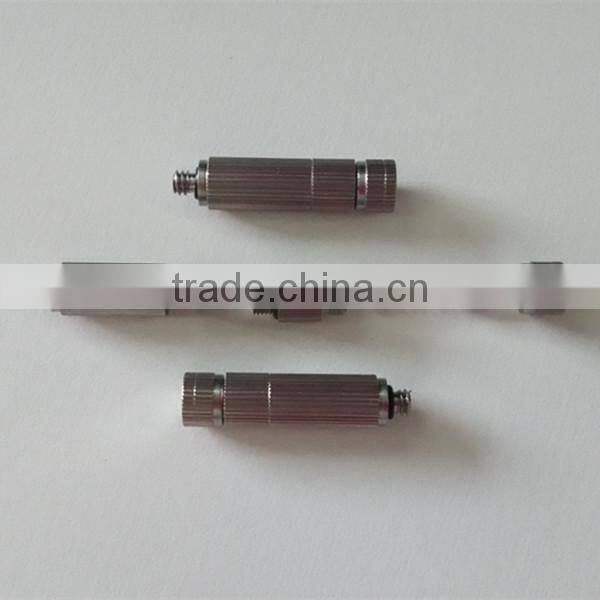

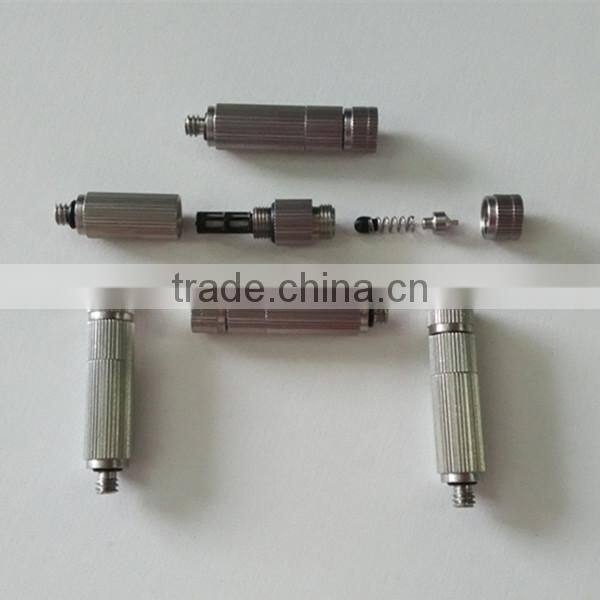

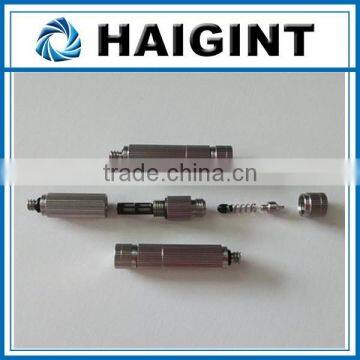

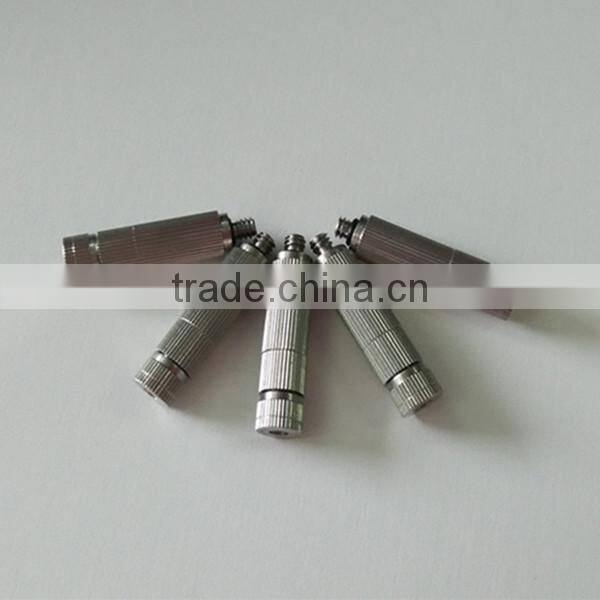

Pictures of the misting nozzles in details
Functions of water mist nozzle
To lower the temperature
Residential Cooling, Outdoor Cooling, Commercial Place Cooling
To add the humidity
Industrial, Horticultural: Green house, Garden, Livestock Farming/ Poultry
To reduce the dust
Industry process, Bulk powder, Cement plant, Grain silo, Foundry dust, Fly ash control, Waste transfer, Recycling process
To approve the ordour
Waste transfer, Chemical plant, Livestock farming/ Poultry, Landfill

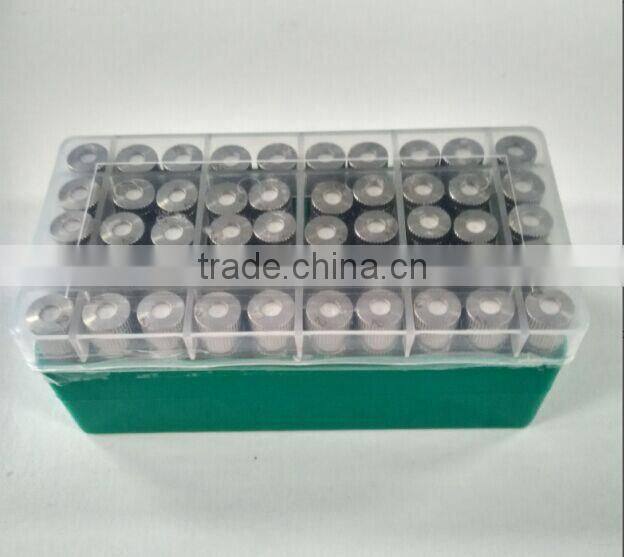

Package detail:
50 pieces in one plastic box
Box size: 11*5.5*4.5cm

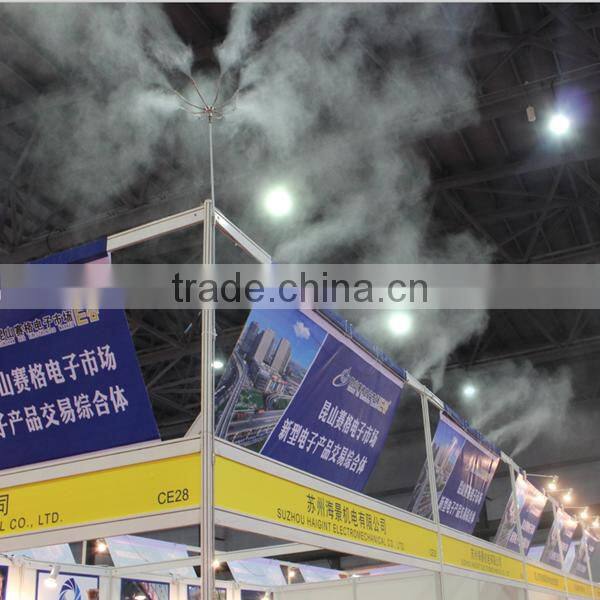

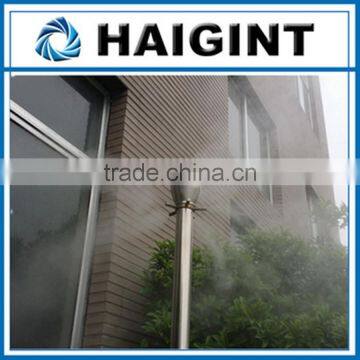

High pressure misting nozzle woeking pictures
