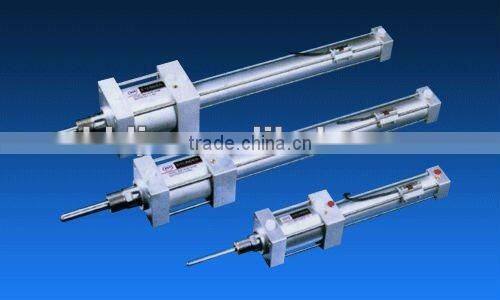

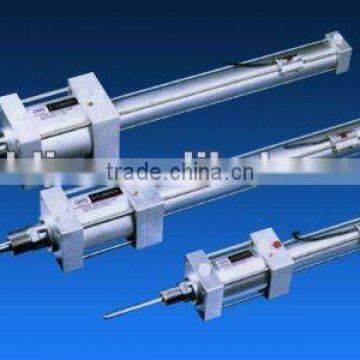

QGKE Double Acting Pneumatic Cylinder
Standard or Nonstandard: Nonstandard
Structure: Piston Cylinder
Power: Pneumatic
Body Material: Steel
Maximum Stroke: 1000mm
Shaft Diameter: 32-100mm
Place of Origin: Zhejiang, China (Mainland)
Model Number: QGY-pneumatic lock cylinder
Brand Name: LD
Specifications:
1. The double entry cylinder is combined with a large cylinder and a small one. The large piston of large cylinder cover the small piston, it can repetitively move on the axle.
2. Both large and the small cylinder have buffer adjustable devices, the small cylinder can equipped with magnet ring, the user can equip the magnetic switch according to necessity.
3. The double entry cylinder equipped with stroke adjustable device, the user can adjust the stretch length of the small piston rod, and this is more accurate than magnet switch.
Peumatic cylinder Features:
1) Working medium: filtered air
2) Motion pattern: double actions
3) Max. operating pressure: 1.5MPa
4) Min. operating pressure: 0.1MPa
5) Ambient temperature: 0~60°C
6) Operating speed: 50-500mm/s
7) Oil: lubricated and not lubricated
8) Joint pipe bore: 1/8"-1/2"
9) Cushion: adjustable cushion at both ends
Process Flow Chart:
Our Slogan: regarding the quality as the factory's life
We are:
1. Real factory with about 20 year’s history and are licensed to export, providing competitive price.
2. Factory with about 200 workers and 40 seniors, equipped with CNC milling and turning machines, CNC Lathes, etc.
3. Quality Certificates: ISO9001-2000, ISO9001-2008 Quality Assurance System, the USA UL.
4. Products covering hydraulic cylinders, pistons, flanges, valves parts, casting and forging parts, engineering goods, etc.
5. Quality control following 3 phases of thorough inspection, first-off inspection, during-processing inspection, and 100% inspection one by one before dispatching.
6. MOQ: 10pcs. Production capacity: 100000pcs/month
7. The way of payment: 30% deposit by T/T in advance, balance T/T before shipment, L/C is negotiable
8. Delivery Time: about 20 days by the sea transportation.
9. The sea port of the shipment: Beilun Ningbo Zhejiang province.
