Specifications:

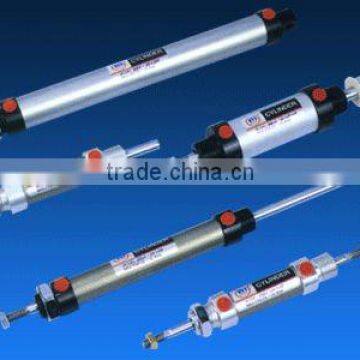

This series of cylinders are standard pneumatic cylinder, with complete specifications and wide applications.
| Standard or Nonstandard | Nonstandard |
| Structure | Piston Cylinder |
| Power | Pneumatic |
| Body Material | Steel |
| Maximum Stroke | 1000mm |
| Shaft Diameter | 32-100mm |
| Place of Origin | Zhejiang, China (Mainland) |

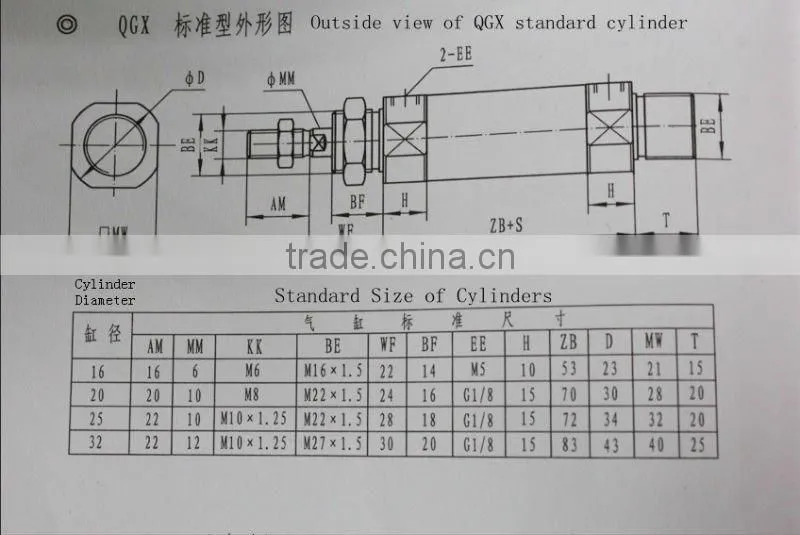

| Model Number | QGX-double acting pneumatic cylinder |
| Brand Name | LD |
| Body material | Steel |
| Model Number | SMB |
Peumatic cylinder Features:
1) Working medium: filtered air
2) Motion pattern: double actions
3) Max. operating pressure: 1.5MPa
4) Min. operating pressure: 0.1MPa
5) Ambient temperature: 0~60°C
6) Operating speed: 50-500mm/s
7) Oil: lubricated and not lubricated
8) Joint pipe bore: 1/8"-1/2"
9) Cushion: adjustable cushion at both ends
Process Flow Chart:
Our Slogan: regarding the quality as the factory's life
We are:
1. Real factory with about 20 year’s history and are licensed to export, providing competitive price.
2. Factory with about 200 workers and 40 seniors, equipped with CNC milling and turning machines, CNC Lathes, etc.
3. Quality Certificates: ISO9001-2000, ISO9001-2008 Quality Assurance System, the USA UL.
4. Products covering hydraulic cylinders, pistons, flanges, valves parts, casting and forging parts, engineering goods, etc.
5. Quality control following 3 phases of thorough inspection, first-off inspection, during-processing inspection, and 100% inspection one by one before dispatching.
6. MOQ: 10pcs. Production capacity: 100000pcs/month
7. The way of payment: 30% deposit by T/T in advance, balance T/T before shipment, L/C is negotiable
8. Delivery Time: about 20 days by the sea transportation.
9. The sea port of the shipment: Beilun Ningbo Zhejiang province.
