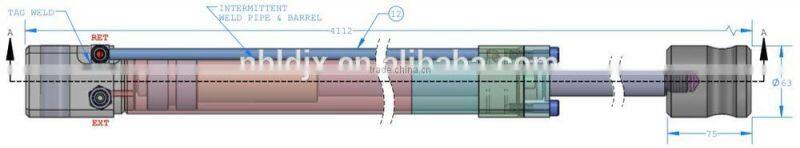

High Quality Welded Double Acting Hydraulic Cylinder
- 1000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Standard or Nonstandard: | Nonstandard | Structure: | Piston Cylinder | Power: | Hydraulic |
Body Material: | Steel | Maximum Stroke: | 100 inches | Place of Origin: | Zhejiang, China |
Model Number: | OEM | Brand Name: | Longda |
Product Description
Welded Double Acting Hydraulic Cylinder
Welded Double Acting Hydraulic Cylinder:
Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
Welded Double Acting Hydraulic Cylinder Parameter
The Welded Double Acting Long Stroke Hydraulic Cylinder we produced before used in
- Road Trans. Machinery: with long stroke
- CraneTruck: use the type of heavy cylinders
- Garbage Truck: both telescopic and hydraulic cylinders.
- Agriculture Machinery: Like plough machinery, harvester,etc.
- Engine Machienry: huge cylinder need very high requirements.
What is the information we require for customer before we make the quotation for Welded Double Acting Long Stroke Hydraulic Cylinder?
- 1. Bore & Rod Dia. ( inch or mm)
- 2. The closed & opened length (Stroke)
- 3. Mounted Type: like bearing or clevis
- 4. Working & Testing Pressure
- 5. The oil port size, thread size
- 6. Assembling way & distance
- 7. Drawing or blueprint is enough for quotation
- 1. Customer RFQ
- 2. Information Confirm (Drawing or samples specific reuqiremnets)
- 3. Quotation (Reply in 24 hours)
- 4. Order Confirm (PI, PO)
- 5. Sample producing (upon receipt of 30% deposit)
- 6. If sample approved, go to main production
- 7. Delibery ( balance T/T, Customs clerance documents, 70% against B/L
What working plants we equiped to producing Welded Double Acting Long Stroke Hydraulic Cylinder ?
1. Sand/Ludux Casting Plants: 30 workers with advanced equipments, 4000 square meters with stove, mould design machinery,testing machinery, material analisis equipments, etc.
2. Manufacturing Plants: 50 workers in 4000 square meters workshop, have CNC Center, CNC Lathe, Milling and Cutting Machine, Tensile test machine, etc.

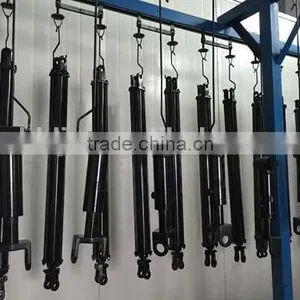

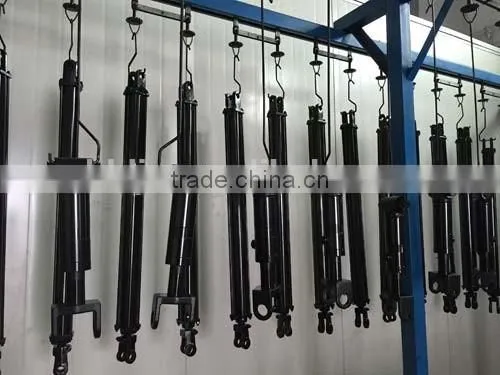

3. Cylidner Assembling Plants: 20 workers with auto-line assembling producing. 2000 square meters workshop equipments with Auto-pressure test machine, auto-pianting line, auto-cleaning machine, etc.
Company video introduction: http://youtu.be/ONMf5U1TZeE
Welded Double Acting Hydraulic Cylinder Packing detail : productions shoud be packed with cartonbox, with or without edge protectors ,according to the demand of our clients
Q1: what are we doing before Welded Double Acting Long Stroke Hydraulic Cylinders shipping out?
Re.: 1. 100% Inspecting for products , final check for the packing, notice customer.
2. Giving customer the chain information, like the material certification, inspect reports, testing results.etc.
3. Providing the packing detail, including the customs documents, products putting pictures, container chaining. etc.
Q2: what we will do after customer receive the bad Welded Double Acting Long Stroke Hydraulic Cylinders?
Re: 1. For shipping problems: check with forwarder why it happened, and take responsibilty if our packing is wrong.
2. If the sample is approved, and problems happened in main production. We first to find out the reason, and then come out the best solution for customers. Like giving some discount, take charge for the air shipping cost, etc.
3. We will have " quality feedbacks" in factory, and give a lesson to workers, and insure this problem will not be happen next time.
Q3: Any favor for VIP Customer or old customer?
Re: 1. Giving some discounts for normal products
2. Providing better and quick services , every quotation or question reply on 8 hours.
3. Emergency order will be VIP Chanel.
Willing to answer your any questions
Now we have customers in America, Canada, Australia, Europe,Arab, Brazil, etc. Welcome to Join us
