Polished High Quanlity Semi Truck Wheel 22.5

FOB Price

US$ 30 - 50 / Set

20 Sets(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Alloy
Finishing	Zinc Plated	Truck Model	Dongfeng
OEM No.	N/M	Brand Name	TIMAX/BETTER
Model Number	22.5X8.5

Product Description

Polished High quanlity semi truck wheel 22.5

Product Description

Truck Wheels 22.5X8.5

SIZE inch	INOFFSET mm	OUTOFFSET mm	max load kg	Thickness mm	bolt hole	center hole mm	PCD mm	dia for bolt hole mm	VALVE

22.5*8.25	145	168	3650	23	10	ø281.2	ø335	ø26	70MS-07
								ø26.75
								ø32
								ø32.5
	145	168	3650	23	10	ø220	ø285.75	ø26
								ø26.75
								ø32
								ø32.5
	144.5	169	3650	24.5	10	ø220	ø285.75	ø26
	145	168	3650	23	10	ø221	ø285.75	ø26
								ø26.75
								ø32
								ø32.5
	145	168	3356	23	8	ø221	ø275	ø26
								ø26.75
								ø32
								ø32.5
	145	168	3356	23	8	ø221	ø285	ø26
								ø26.75
								ø32
								ø32.5
								ø32R22
								ø32.5R22
	144	167.5	3650	23.5	10	ø281.2	ø335	ø26	TR554D/ TR544D
								ø26.75
								ø32
								ø32.5
	144	167.5	3650	23.5	10	ø220	ø285.75	ø26
								ø26.75
								ø32
								ø32.5
	144	168	3650	23.5	10	ø221	ø285.75	ø26
						ø281.2	ø335	ø26
	144	167.5	3356	23.5	8	ø221	ø275	ø26
								ø26.75
								ø32
								ø32.5
	144	167.5	3356	23.5	8	ø221	ø285	ø26
								ø26.75
								ø32
								ø32.5
								ø32R22
								ø32.5R22

Other hot sizes TRUCK Wheels,

17.5*6 17.5*6.75 19.5*7.5 19.5*8.25 22.5*7.5 22.5*9 22.5*11.75 22.5*13 22.5*14 24.5*8.25

Size	ET	P.C.D	STUD.DIA	C.B	Max Load
22.5*8.25	24	285.75	26/26.75/32.5	220/221	3550kg
17.5*6.75	21	245*10	26.75	220	2500KG
22.5*7.5	24	285.75/335*10	26/26.75/32.5	220/281.2	3550KG
22.5*9.0	25	285.75/335*10	26/26.75/32.5	220/221/281.2	4125KG
22.5*11.75	26	285.75/335*10	26/26.75	220/281.2	4500KG
22.5*11.75	24	285.75/335*10	26/26.75	220/281.2	4500KG
24.5*8.25	22	285.75/335*10	26/26.75/32.5/32.5R22	220/221/281.2	3360KG
22.5*8.25	24	285.75*10	26.75	220	1544KG

The advantage of our products

1, Have lighter weight about 1/2 as much as steel wheels

2, Fuel economy , Forged aluminum wheels are lighter in weight , which , easily increase accelerating performance and decrease braking energy demand , and correspondingly save fuel .

3, Quicker heat dissipation , reduce tire wear . increase longevity and reduce the possibility of tyre burst .

4, Higher loading capacity , compare with steel wheel , forging aluminum wheels have higher loading capacity five times as much .

5, Higher resistance to corrosion

6, 95 percent of the aluminum used in a vehicle is recycled

7, Using aluminum to replace steel saves 22.9kg of Co2 per kg of aluminum .

8, help increase the price of second-hand trucks and buses .

Products pictures

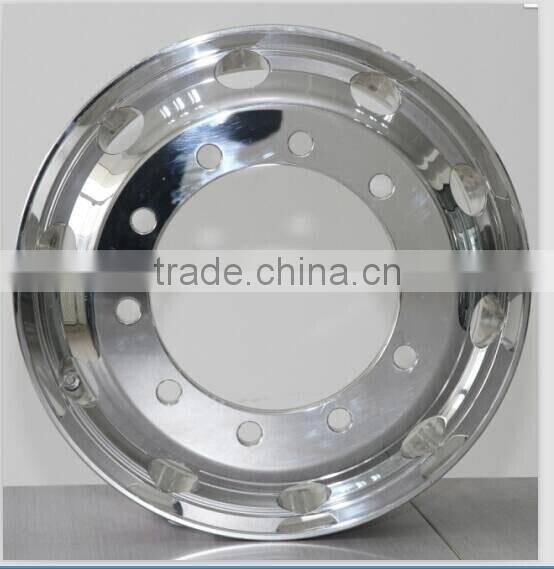

1. Machined finished

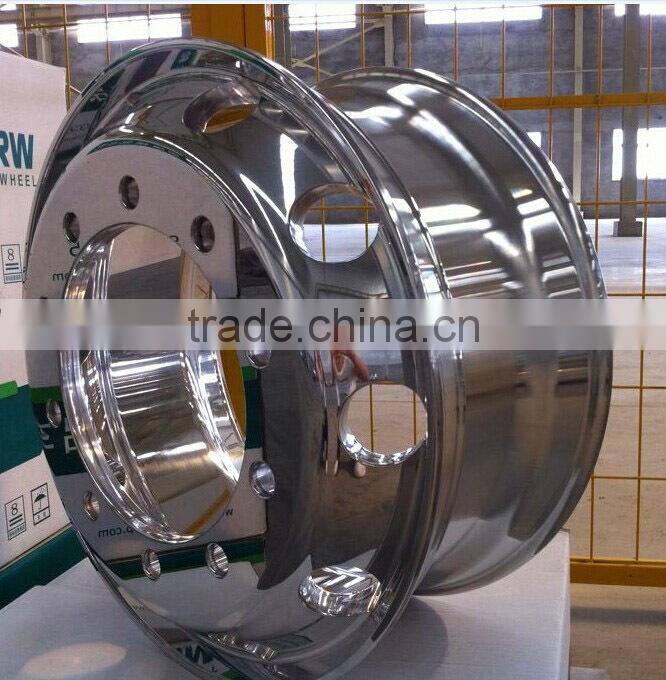

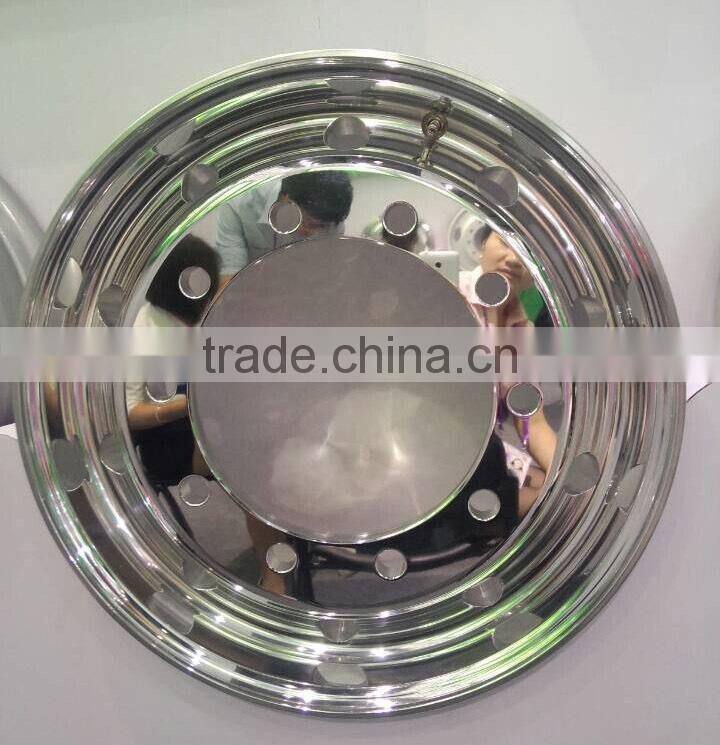

2.Outside Polished

3.Double Polished

Our Services

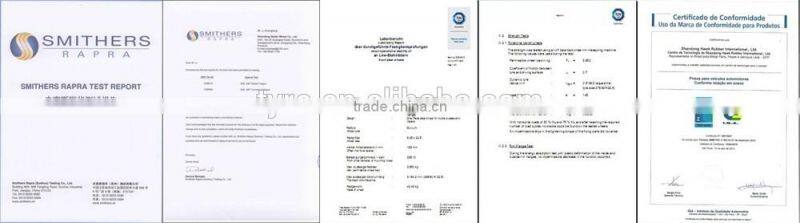

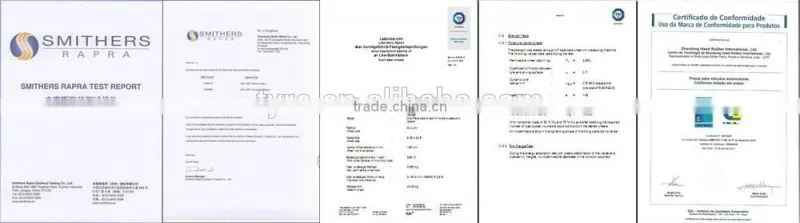

1. Certificate

US SMITH

US DOT

EU TUV

Brazil INMETRO

IATF

2.Most professional team

1).Every inquiry and cooperation are in highly attention and valued.

2).most professional team:24 hours online service, 2 hours inquiry reply ,12 hours complain deal.

3).5 years wheel warranty.

4).Every customer's choice,requirements and feedback are highly respected.

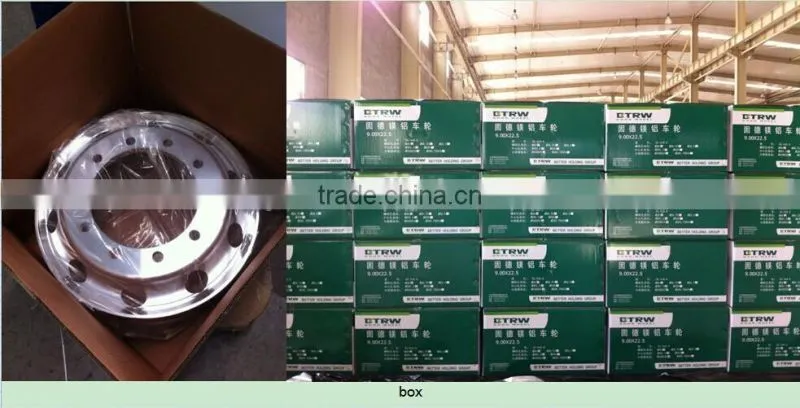

Packaging & Shipping

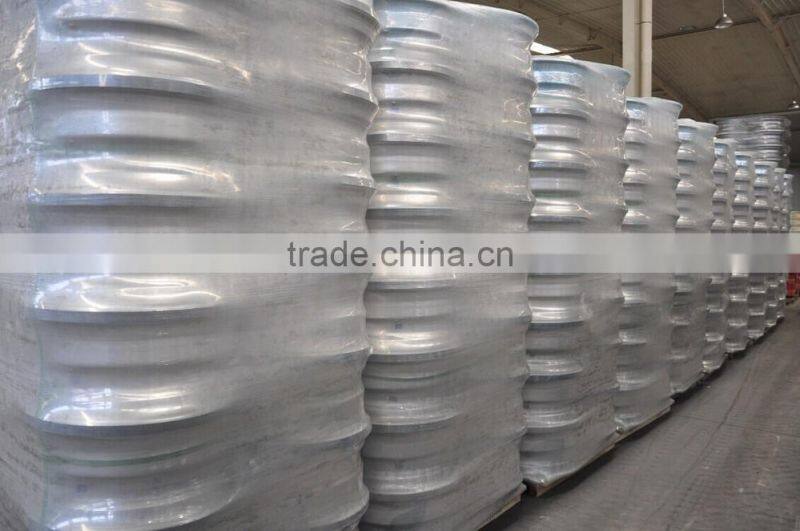

packing

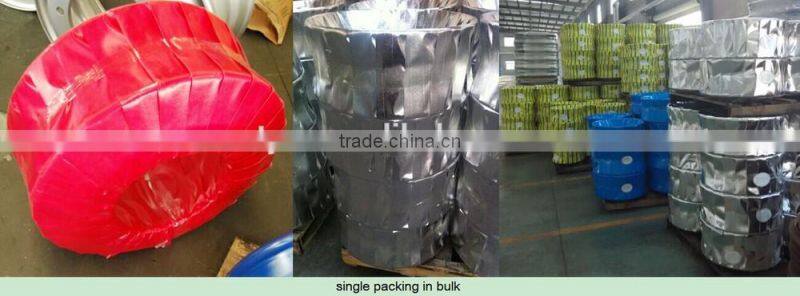

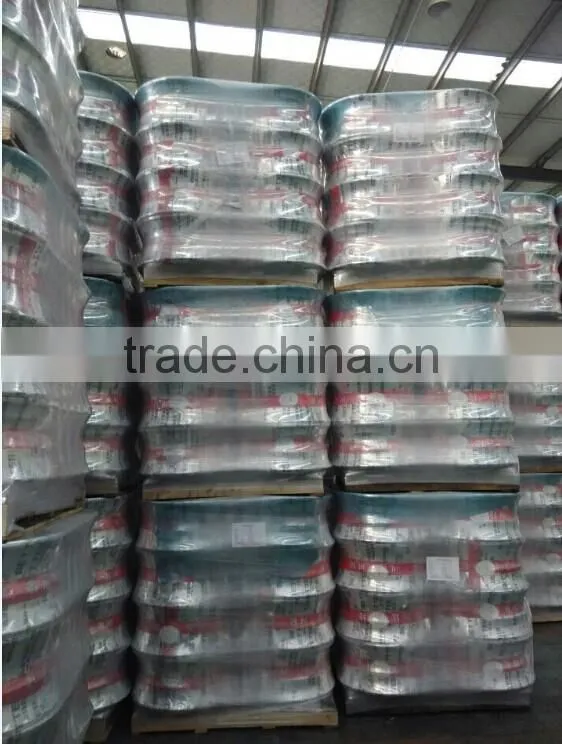

Single Packing with Pallets

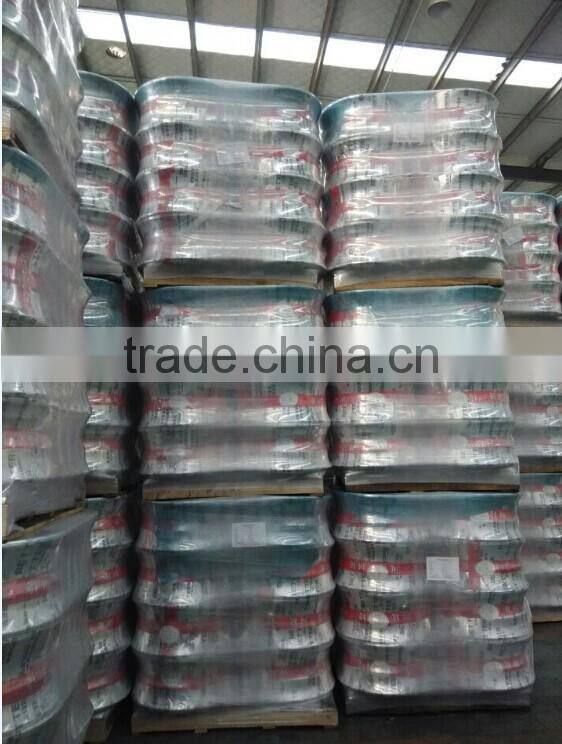

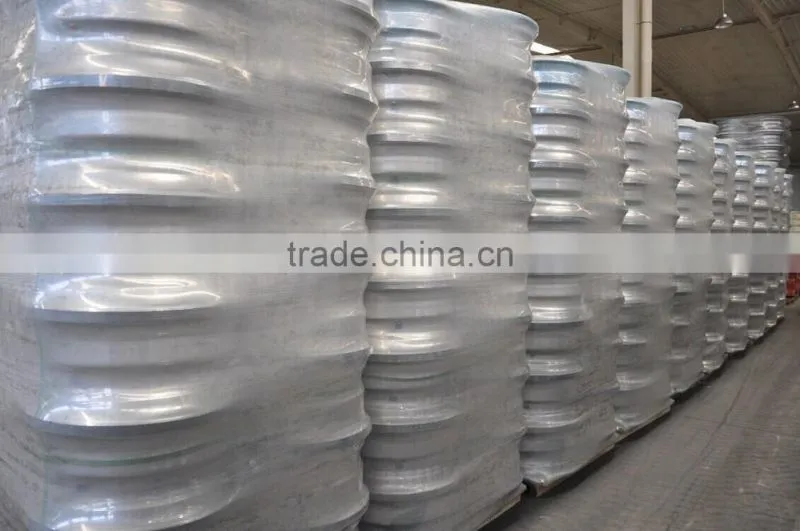

Double Packing with pallets

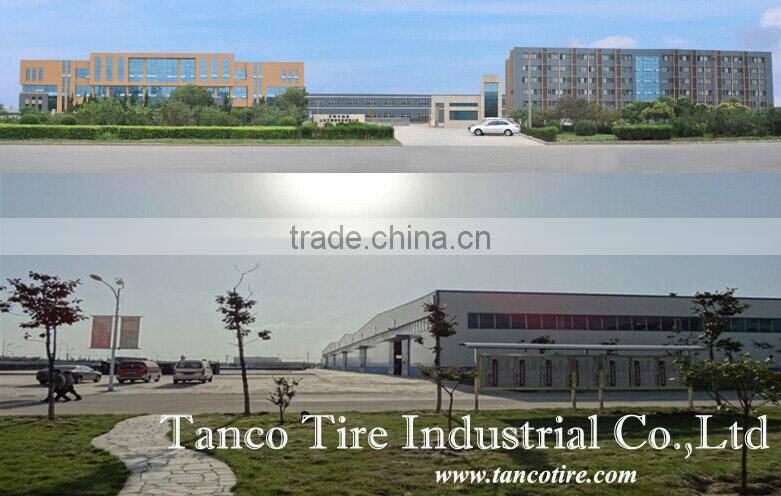

Company Information

Main Products	Tyre, Wheel
Location	Shandong,China(Mainland)
Year Sart exporting	1999
Number of Employees	11-50 people
Total Annual Sales Volume	20,445,000.00
Main Market	Africa,North America,Mid East,South Africa, Southeast Asia
Certifications	ISO9001,ISO/TS 16949
Product Certificates	ECE, DOT,GCC,Inmetro,Smith, TUV,IATF
Average Lead Time	15 days
Brands offer	TIMAX,Aeolus,Triangle,Taishan,Annite,Superhawk,Farroad,Comferser,Double King,Better Wheel

Why choose TANCO TIRE?--------Quality & Technology

1.HIGH STRENGTH ,SAFE AND RELIABLE
a)High loading
Loading capacity of forged alloy wheel is 5 times than common iron wheel.forged wheels has a deformation of 5cm when carrying 71200kg while comon iron wheel just carrying 13600kg .In other words ,strength of forged alumium wheel is 5 times than iron wheel
b)Impact test
we simulated a lorry crashed into a curb stone at over 50km/h,equivalent to a weight of 910kg falling from a height crashing into the tire and wheel.Jananese VIA certificated the analog test result of test equipment :Forged alloy wheels just got minor damage ,but the iron wheel is very serious .

2.LIGHT IN WEIGHT,EASY IN OPERATION
a)LIGHT IN WEIGHT
Forged alumum wheels for truck /coach weight less than 23kg,while steel wheels weight about 46kg ,so that each coach will be 161kg ligther itself.According to the statistics by international Alumium institute ,every 10% lighter itself ,an automobile will save 6%-8% fule generally
b)Easy in Operation
Because forged alumium wheels is light ,drivers in the autos which use such wheels feel easier in driving and specially stable when running fast ,meanwhile ,faster starting ,easier braking and excellent immoilization makes driving and excellet immobilization makes driving more enoyable

3.FAST IN HEAT DISSIPATION, REDUCING TIRE BURST
a) Excellent in safty
To autos running in high speed ,tire burst and braking failure often happen becasuse of friction between tires and ground and frequent braking.For the heat conduction factor of alumium alloy wheels unique structure,the heat produced by autos will be let off easily .So it helpfs to keep the tire's temperature stable and reduce tire burst
b)For the better heat dissipation ,forged alumium wheel will extend tire's life 26%
Reducing tires' fraying by 26% for alumium alloy's unique feature ,combined with alumium alloy wheels' unique structure,forge alumium wheels' temperature in running is 20-30 degrees lower than steels ones.So tires' fraying is greatly reduced ,which makes each tires could run 30,000~50,000km more.
c)Fast in heat dissiption ,reducing the maintaining cost of braking systerm
Because forged alumium wheels' fast in heat dissipation and low temperature in running,the braking systerm is excellently protected,so as to reduce the maintaining cost greatly

4.HIGH ROUDNESS ,EXCELLENT DYNAMIC EQUILIBRIUM

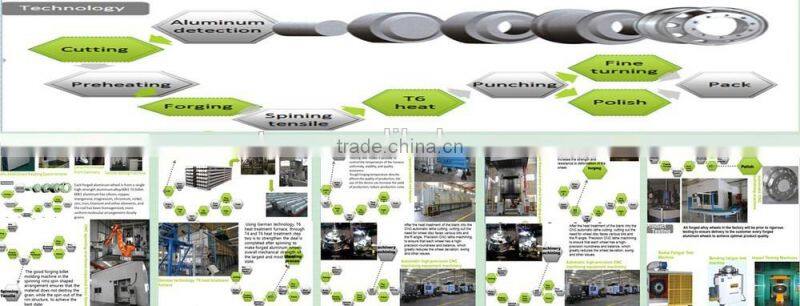

Forged alumium wheels brief producing process:after forging to be the blank ,and then machine in CNC,the roundness error is less than 0.1mm .The steel wheel is welded by bending steel plate,roundness error is more than 1mm .Forged alumium wheel is homogeneous and the dynamic balance is less than 50g. While the dynamic balance of steel is greatly exceed this figure .Therefore,forged alumium wheel makes truck and bus better driver comfort and stable

5.SHAPE UP BY FORGING IN ONE PIECE,ARTISTIC AND BEAUTIFUL
Shape up by forging in one piece,the wheel surface is smooth and treated easily .After Mirror -surface turning ,the wheel have the unique metallic feeling .If coated.polished or chromed,the wheels will have noble apperance.

We sincerely hope to cooperate with you and support you do better in your market!

Any interest in our wheels, please be free to contact us!

Etta Xu/TANCO TIRE

Tel:86-532-81927818-800

Fax:86-532-81927817

Whatsapp:86-185-6186-8587

Skype:MMETTA

Thanks and regards
