Home > Products > Angular contact ball bearing > CNC spindle router ceramic bearing H7002C-2RZ P4 HQ1 Bearing 15x32x9mm
CNC spindle router ceramic bearing H7002C-2RZ P4 HQ1 Bearing 15x32x9mm
- 100000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Brand Name: | GQZ or Other famous brand | Bore Size: | 15, | Outside Diameter: | 32, |
| Model Number: | H7002C -2RZ P4 HQ1 | Precision Rating: | ABEC7 or P4 | Seals Type: | Rubber Seals |
| Number of Row: | Single Row | Place of Origin: | Jiangsu, China |
Product Description
H7002C-2RZ P4 HQ1 High Precison Ceramic Ball Bearing
1.Type:Angular Contact Ball Bearing
2.Size:15x32x9mm
3.Material:
(1)Ceramic Balls
(2)Inner Ring and Outer Ring is Gcr15
4.Feature:
(1)High Precision:ABEC 7 Bearing Precision Level
(2)Very high rotating speed
(3)Contact Angle: C15° AC25°

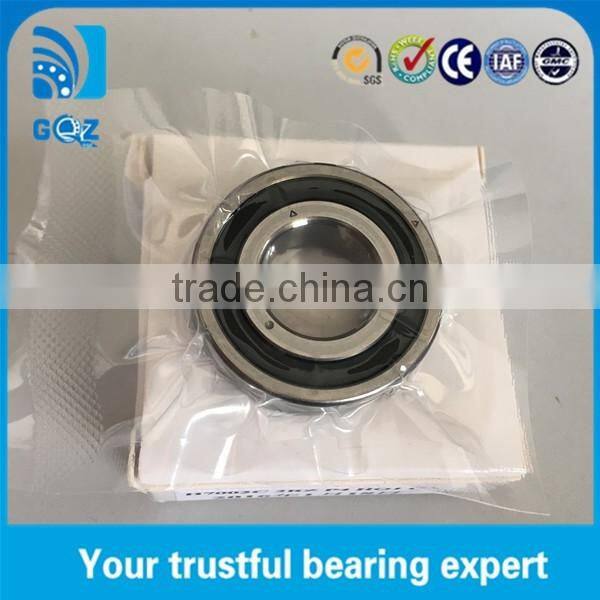

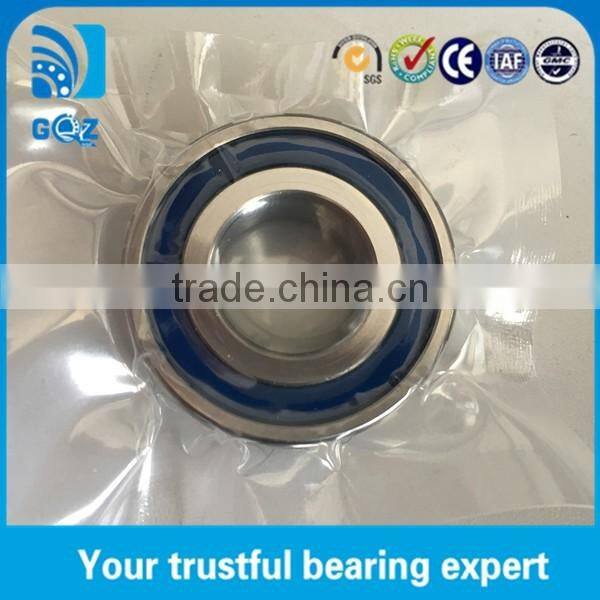

5.Bearing Picture:
6.We also supply following angular contact ball bearings:
Bearing No. | d(mm) | D(mm) | B(mm) |
H708C.T.HQ1.P4A | 8 | 22 | 7 |
H709C.T.HQ1.P4A | 9 | 24 | 7 |
H7000C.T.HQ1.P4A | 10 | 26 | 8 |
H7001C.T.HQ1.P4A | 12 | 28 | 8 |
H7002C.T.HQ1.P4A | 15 | 32 | 9 |
H7003C.T.HQ1.P4A | 17 | 35 | 10 |
H7004C.T.HQ1.P4A | 20 | 42 | 12 |
H7005C.T.HQ1.P4A | 25 | 47 | 12 |
H7006C.T.HQ1.P4A | 30 | 55 | 13 |
H7007C.T.HQ1.P4A | 35 | 62 | 14 |
H7008C.T.HQ1.P4A | 40 | 68 | 15 |
H7009C.T.HQ1.P4A | 45 | 75 | 16 |
H7010C.T.HQ1.P4A | 50 | 80 | 16 |
H7011C.T.HQ1.P4A | 55 | 90 | 18 |
H7012C.T.HQ1.P4A | 60 | 95 | 18 |
H7013C.T.HQ1.P4A | 65 | 100 | 18 |
H7014C.T.HQ1.P4A | 70 | 110 | 20 |
H7015C.T.HQ1.P4A | 75 | 115 | 20 |
H7016C.T.HQ1.P4A | 80 | 125 | 22 |
H7017C.T.HQ1.P4A | 85 | 130 | 22 |
H7018C.T.HQ1.P4A | 90 | 140 | 24 |
H7019C.T.HQ1.P4A | 95 | 145 | 24 |
H7020C.T.HQ1.P4A | 100 | 150 | 24 |
If you want to buy these bearings,just feel free to contact us.
