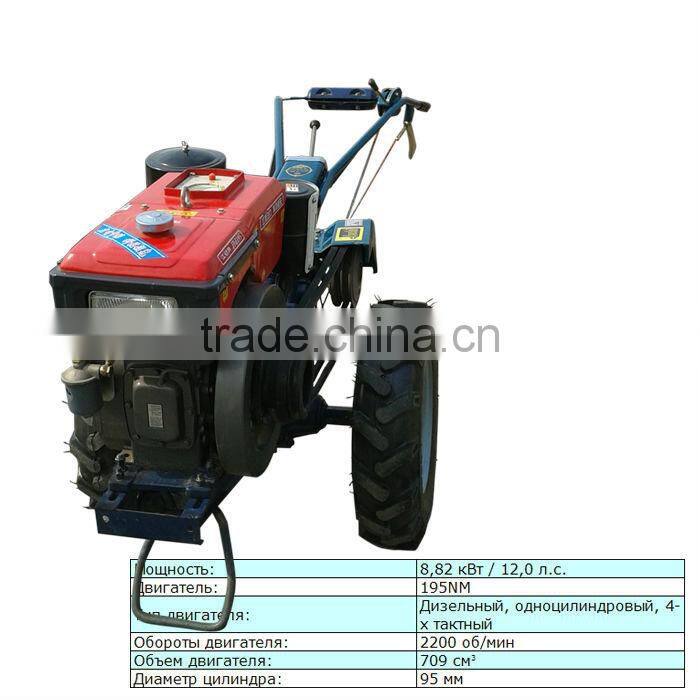

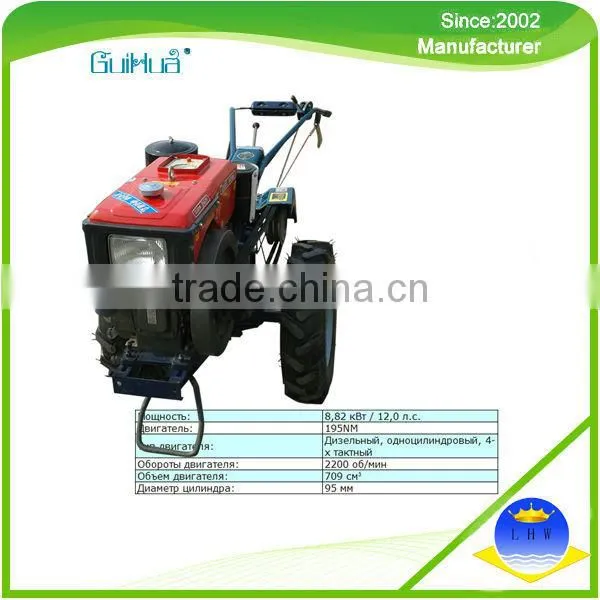

12HP hand start mini tractor made in China

FOB Price

USD $450 - $800 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Walking Tractor	By wheel:	2WD
Usage:	Garden Tractor	Drive Type:	Gear Drive	Power(W):	8.82K
Certificate:	Other, ISO	Brand Name:	Guihua	Model Number:	LHW101-12hw-c
Place of Origin:	Shandong, China	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

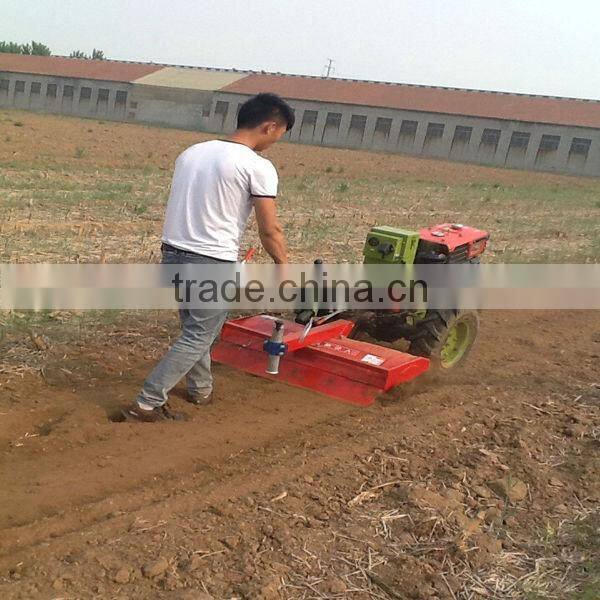

The mini tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.

Our Services

Responsibility ,Quality, Innovation,Struggling,Development.

Working hard, forging ahead, improving production technology, improving production efficiency, reducing production cost, to provide customers with competitive agricultural equipment. That’s the belief we always keeping.

Product Description

Chassis Information
Model	LHW101-12hw-c
Overall Dimensions:(L×W×H)	2950×980×1240mm
Wheel tread	Rubber wheel: 570-810mm; Iron wheel: 850-1090mm
Tyre Size	Front 6.00-12 (rubber); Rear 4.00-8 (rubber)
Ground clearance	210mm
Net Weight (without rotary tiller)	380 kg
Net Weight (with rotary tiller)	480 kg
Tyre Inflation Pressure(kg/cm²)	For Cultivation 1.1`1.4
	For Carrying 1.8~2.0
Speed (km/hr)	Forward 1.39,2.47, 4.15, 5.14, 9.12, 15.30
	Reverse 1.10, 4.10
Rotary tiller	Blades number: 18
	Width 600 mm
	Turning Speed: 1st: Low:220, High:251 2nd: Low:233 High:291
	Blades: 2 sets (1 for dry&1 for wet land cultivation)
Engine Information
Model	ZH195N Diesel
Type	Single cylinder,4-stroke,horixontal,water-cooled,direct injection
Cooling System	Condenser (Radiator, made by brass metal)
Rated power	12.24HP(9KW)
Rated speed	2000rpm
Fuel Tank Capacity	9 kg
Fuel Consumption (g/kw.hr)	≤258.4
Structure Weight (kg)	150
Engine Oil Sump (kg)	2.5
Air Cleaner	Oil Bath Type
Fuel filter	Duel Fuel Filter(Primary and Secondary) for controlling fuel adulteration
Starting system	Manual Cranking Type
Clutch	Multiple Dry Plate, Friction Type
Lubricating way	Combine pressure and splashing
Other technical data
Gear Box	Six Speed Forward, Two Speed Reverse
Main Frame Implements	1) Anti-skid steel wheel(with 10 sprockets and extra bit) – 1 set
	2) 1 nos. rear iron wheel for mud cultivation
	3) Rotary blades 2 sets (1 for dry&1 for wet land cultivation)
Clutch	Double friction flat of constant combination
Brake System	Drum Type
Accessories	1 set tools and 1 set fast moving spare parts
MOQ	1units
Container Load QTY
20GP	20units(with plywood case package), 30units(nude packing)
40HQ	40units(with plywood case package)

Packaging & Shipping

40' container:

20' container

Only one set, including rotary tiller & plough.

We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.

we would like to try our best to help you to choose the suitable type!

Contact Us

Weifang Guihua Agricultural Equipment Co., Ltd.: Contact namesally hou; Phone0086-0536-8260516; Addressjun bu kou district Weifang,Shandong
