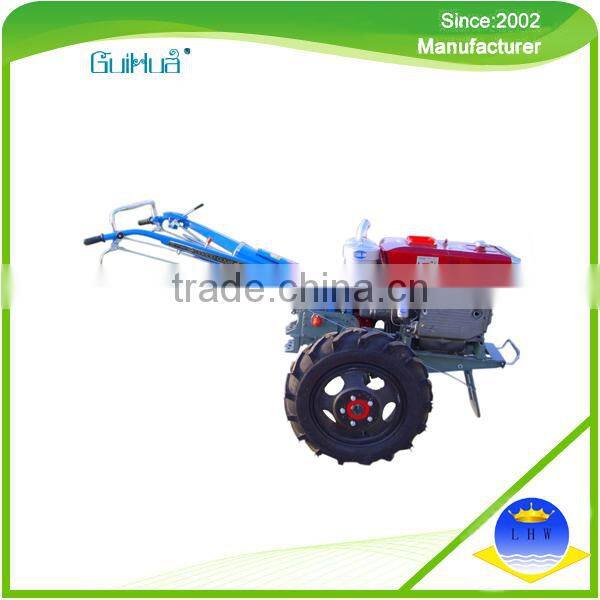

China Hand Start Condensational Hand Tractor

Weifang Guihua Agricultural Equipment Co., Ltd.
China Hand Start Condensational Hand Tractor thumbnail-1
China Hand Start Condensational Hand Tractor photo-1
US$ 500 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Garden Tractor
Drive Type Gear Drive
Power(W) 8.82K
Certificate Other, ISO
Brand Name Guihua
Model Number 1012-12-hw
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas






 The mini  hand tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.









Our Services



Responsibility ,Quality, Innovation,Struggling,Development.

Working hard, forging ahead, improving production technology, improving production efficiency, reducing production cost, to provide customers with competitive agricultural equipment. That’s the belief we always keeping.












Product Description



Chassis Information
ModelGH- 1012-12-hw
Overall Dimensions:(L×W×H)2150×980×1240mm
Wheel treadRubber wheel: 570-810mm; Iron wheel: 850-1090mm
Tyre SizeFront 6.00-12 (rubber);  Rear 4.00-8 (rubber)
Ground clearance210mm
Net Weight (without rotary tiller)280 kg
Net Weight (with rotary tiller)380 kg
Tyre Inflation Pressure(kg/cm²)For Cultivation 1.1`1.4
For Carrying  1.8~2.0
Speed (km/hr)Forward 1.39,2.47, 4.15, 5.14, 9.12, 15.30
Reverse 1.10, 4.10
Rotary tillerBlades number: 18
Width 600 mm
Turning Speed: 1st: Low:220, High:251 2nd: Low:233 High:291
Blades: 2 sets (1 for dry&1 for wet land cultivation)
Engine Information
ModelZH195N Diesel
TypeSingle cylinder,4-stroke,horixontal,water-cooled,direct injection
Cooling SystemCondenser (Radiator, made by brass metal)
Rated power12.24HP(9KW)
Rated speed2000rpm
Fuel Tank Capacity9 kg
Fuel Consumption (g/kw.hr)≤258.4
Structure Weight (kg)150
Engine Oil Sump (kg)2.5
Air CleanerOil Bath Type
Fuel filterDuel Fuel Filter(Primary and Secondary) for controlling fuel adulteration
Starting systemManual Cranking Type
ClutchMultiple Dry Plate, Friction Type
Lubricating wayCombine pressure and splashing
Other technical data
Gear BoxSix Speed Forward, Two Speed Reverse
Main Frame Implements1) Anti-skid steel wheel(with 10 sprockets and extra bit) – 1 set
2) 1 nos. rear iron wheel for mud cultivation
3) Rotary blades 2 sets (1 for dry&1 for wet land cultivation)
ClutchDouble friction flat of constant combination
Brake SystemDrum Type
Accessories1 set tools and 1 set fast moving spare parts
MOQ1units






We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.
