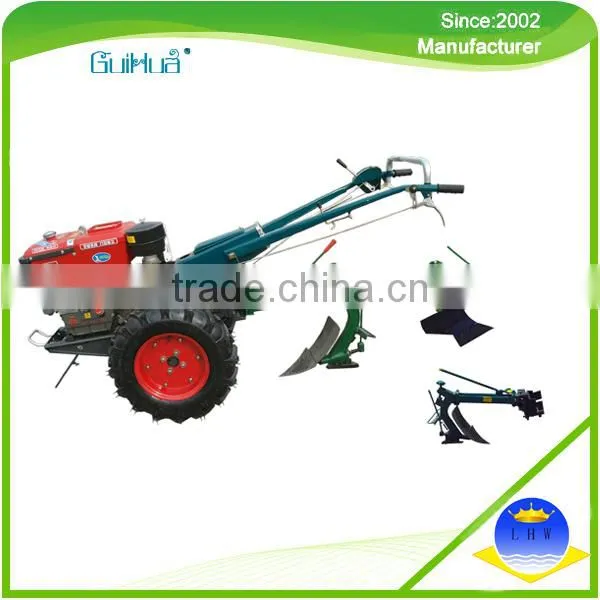

For Farm Work Manual Start Mini Walking Tractor

For Farm Work Manual Start Mini Walking Tractor thumbnail-1
For Farm Work Manual Start Mini Walking Tractor photo-1
US$ 405 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Guihua Agricultural Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Garden Tractor
Drive Type Gear Drive
Power(W) 8.82K
Certificate Other, ISO
Brand Name Guihua
Model Number 121-1
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Original manufacturer
2.High quality and competitive price
3.Multi-function
4.Easy to operation






 The mini tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.









Our Services



Responsibility ,Quality, Innovation,Struggling,Development.

Working hard, forging ahead, improving production technology, improving production efficiency, reducing production cost, to provide customers with competitive agricultural equipment. That’s the belief we always keeping.



For farm work Manual Start mini walking Tractor








Product Description



Chassis Information
Model GH-121
Overall Dimensions:(L×W×H) 2950×980×1240mm
Wheel tread Rubber wheel: 570-810mm; Iron wheel: 850-1090mm
Tyre Size Front 6.00-12 (rubber);  Rear 4.00-8 (rubber)
Ground clearance 210mm
Net Weight (without rotary tiller) 380 kg
Net Weight (with rotary tiller) 480 kg
Tyre Inflation Pressure(kg/cm²) For Cultivation 1.1`1.4
For Carrying  1.8~2.0
Speed (km/hr) Forward 1.39,2.47, 4.15, 5.14, 9.12, 15.30
Reverse 1.10, 4.10
Rotary tiller Blades number: 18
Width 600 mm
Turning Speed: 1st: Low:220, High:251 2nd: Low:233 High:291
Blades: 2 sets (1 for dry&1 for wet land cultivation)
Engine Information
Model ZH195N Diesel
Type Single cylinder,4-stroke,horixontal,water-cooled,direct injection
Cooling System Condenser (Radiator, made by brass metal)
Rated power 12.24HP(9KW)
Rated speed 2000rpm
Fuel Tank Capacity 9 kg
Fuel Consumption (g/kw.hr) ≤258.4
Structure Weight (kg) 150
Engine Oil Sump (kg) 2.5
Air Cleaner Oil Bath Type
Fuel filter Duel Fuel Filter(Primary and Secondary) for controlling fuel adulteration
Starting system Manual Cranking Type
Clutch Multiple Dry Plate, Friction Type
Lubricating way Combine pressure and splashing
Other technical data
Gear Box Six Speed Forward, Two Speed Reverse
Main Frame Implements 1) Anti-skid steel wheel(with 10 sprockets and extra bit) – 1 set
2) 1 nos. rear iron wheel for mud cultivation
3) Rotary blades 2 sets (1 for dry&1 for wet land cultivation)
Clutch Double friction flat of constant combination
Brake System Drum Type
Accessories 1 set tools and 1 set fast moving spare parts
MOQ 1units
Container Load QTY
20GP 20units(with plywood case package), 30units(nude packing)
40HQ 40units(with plywood case package)





For farm work Manual Start mini walking TractorFor farm work Manual Start mini walking Tractor





We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.





For farm work Manual Start mini walking TractorFor farm work Manual Start mini walking TractorFor farm work Manual Start mini walking TractorFor farm work Manual Start mini walking Tractor



we would like to try our best to help you to choose the suitable type!
