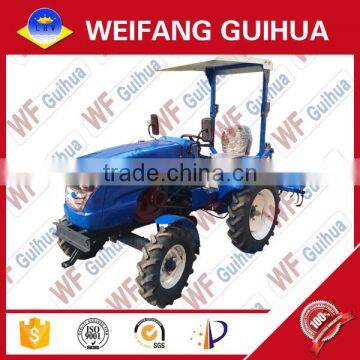

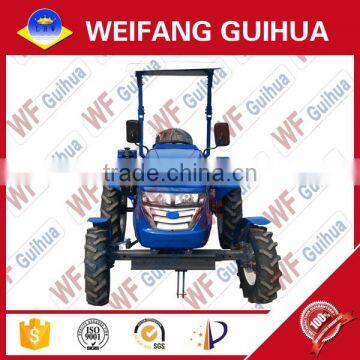

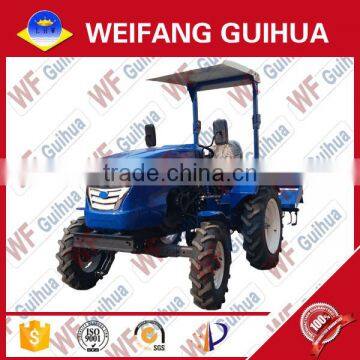

Factory Sales 2016 Year New Type 24 hp Farm Mini Tractor

1.Specification request new type 24 hp farm mini tractor,electric start mini tractor

Overall tractor

Model

LHW-New Type

Transmission box:

Special steel casting transmission:20CrMnTi

Main dimension(mm):

LxWxH=(2400X1300X1320)

Wheelbase:(mm)

Frant:1050mm;Raer:980mm

front wheel(mm)

550mm

Rear-wheel(mm)

750mm

Mini-turning circus  radius:(m)

2.8m

Structural weight:(kg)

540kg

 speed:km/h

Forward speed

1.73,3.42,5.71,8.01,15.80,26.40

Reverse speed

1.37,6.35

 Engine

Engine model:

Diesel Engine

Fuel consumption per hour:

1.0L~1.5 L

Rated turning speed:

r/min      2400

Rated power:

20HP    24HP

Cooling type:

Evaporative cooling, Condense

 Drive system

Clutch

Dry type

Final drive:

Single stage spur gear transmission

Differential:

Support  conical planetary gear reducer

Transmission:

(3+1)*2 cylinder gear drive

Brake:

External shoe type brake

Drive type between engine and clutch:

Triangle belt

Drive type between PTO and hydraulic pump :

V-belt

Travel and turning system

Front axle:

Adjustable separating type

Front wheel

Front wheel   5.0-12

Rear-wheel

Rear-wheel   7.50-16

Tyre size and pressure of front wheel

Front wheel: 600kpa

Tyre size and pressure of Rear-wheel

Rear-wheel: 250kpa

Steering gear:

Worming gear type

Toe-in of front wheel(mm):

   4~8

Front-wheel camber:

20±30’

King pin inclination:

70±15’

Kingpin caster:

30±15’
