Home > Products > New Products > 2015 new product!pcd tungsten carbide deep drawing die heading die manufacture china gold silver copper aluminum steel iron
2015 new product!pcd tungsten carbide deep drawing die heading die manufacture china gold silver copper aluminum steel iron
- Shanghai/Shenzhen/Guangzhou/Dalian/Tianjin
- T/T D/P D/A Credit Card PayPal
You May Like
-
new products for cemented tungsten carbide bearing spare parts ball china supplier
-
cemented tungsten carbide insert tips blades construction tool parts type SCARIFIER CUTTER
-
Sichuan Chengdu santon cemented carbide co.,ltd cermet cutting insert milling insert
-
YT YG YW ST k05 k10 k20 M05 M10 M20 P10 P20 P30 P40 lathe tool insert/turning insert/turning tool insert milling insert
-
wholesale hot sale high quality as Japan Sweden Swedish cemented tungsten carbide INSERT SHIMS gasket cutting tools
-
Sichuan Chengdu Santon cemented carbide tungsten company No1 best long life INSERT SHIMS made in china turning milling
Product Details
Brand Name | Santon, Santon | Model Number | various | |
Shaping Mode | Extrusion Mould | Product Material | Other, tungsten carbide | |
Product | Other, machine |
Product Description
Cemented carbide drawing die grades and properties:
Grade | Density g/cm3 | hardness HRA | Bending Strength >=N/mm2 |
YG3x | 15.1-15.3 | 93.6 | 1450 |
Superior wear resistance.Suitable for drawing steel wire,non-ferrous metal wire and alloy wire of less than 2mm in diameter under low stress.Much better for drawing the finer wire of less than 1.0mm in diameter. | |||
YG3 | 15.1-15.3 | 92.4 | 1500 |
Good wear resistance.Suitable for drawing steel wire,non-ferrous metal wire and alloy wire of less than 6mm in diameter under low stress. | |||
YG6x | 14.8-15.0 | 92.5 | 1700 |
Good wear resistance.Suitable for drawing steel wire,non-ferrous metal wire and alloy wire,rod and steel,non-ferrous metal and alloy pipes of less than 10mm in diameter under higher stress. | |||
YG6A | 14.8-15.0 | 92.8 | 1700 |
Good wear resistance.suitable for drawing steel wire,non-ferrous metal wire and alloy wire and rod of less than 20mm in diameter and steel,non-ferrous metal and alloy pipes of less than 10mm in diameter under higher stress. | |||
YG6 | 14.9-15.1 | 91.5 | 2000 |
Good wear resistance .Suitable for drawing steel wire,non-ferrous metal wire and alloy wire and rod of less than 20mm in diameter and steel,non-ferrous metal and alloy pipes of lesss than 10mm in diameter under higher stress. | |||
YG7 | 14.8-15.0 | 91.2 | 2000 |
suitable for drawing steel wire,non-ferrous metal wire and alloy wire and rod of lesss than 50mm in diameter and steel,non-ferrous metal and alloy pipes of less than 20mm in diameter under higher stress. | |||
YG8 | 14.6-14.8 | 91.0 | 2100 |
suitable for drawing steel wire,non-ferrous metal wire and alloy wire and rod of less than 50mm in diameter and steel ,non-ferrous metal and alloy pipes of less than 35mm in diameter under extreme stress | |||
YG6z | 14.4-14.9 | 89 | 1500 |
suitable for drawing steel wire ,non-ferrous metal wire and alloy wire and rod of less than 50mm in diameter and steel,non-ferrous metal and alloy pipes of less than 20mm in diameter under hihger stress. | |||
YG8z | 14.3-14.8 | 89.0 | 1500 |
suitable for drawing steel wire ,non-ferrous metal wire and alloy wire and rod of less than 50mm in diameter and steel,non-ferrous metal and alloy pipes of less than 35mm in diameter under extreme stress. |
including the following:

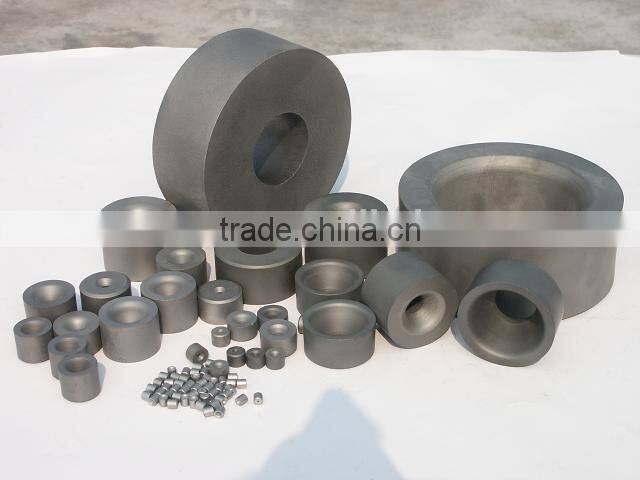

Drawing die blank for ferrous and non-ferrous metal wire
Drawing die blank for ferrous and non-ferrous metal rod
Diameter reducing carbide die blank for drawing metal tube
Diameter die blank for tube floating plug
Drawing die blank for square rod
Drawing die blank for rectangle non-ferrous rod
Drawing die blank for non-ferrous metal strips
Drawing die blank for hexagonal ferrous metal bars
Drawing die blank for ferrous metal wires
Modified drawing die blanks
Please feel free to contact us.
Our Service
1. We not only provide standard parts but also OEM service.
Please feel free to connect us all the time 24/7.
2. Our experienced technican and enthusiastic service will keep you free from worry.
3. The completely production line from raw material to delivery,all links are
under our control.
Our advantages:
1. Made from 100% virgin raw material.
2. Products with advanced equipment and perfect workmanship.
3. All products go through in-process and final inspection.
4. Stable and continuous production ability.
5. We produce tungsten carbide plate in various size,grades and surface
conditions.the product can also be customized by customer's design.
6. All products must be inspected strictly and only those with out any
harm can be shipped out.
7. We located in Chengdu International Airport(less than 0.5 hour'sdrive),
so it will be very convenient for our overseas customers' on-site
visit if requred,which also guaranteed our delivery on time.
8. Our fine manufacturing management and professionals make sure we
can provide you with more competitive high cost-performance product.
Chengdu Santon cemented carbide Co.,Ltd is a professional private company,which consists of
producing,selling, and developing of non ferrous metal materials such as cemented carbide
and tungsten and molybdenum products. Santon has a crowd of professional and
experienced personnel , advanced production equipments and quality monitoring
methods.By employing the latest modern technology,Santon can satisfy customers'
demands of high cost-performance cemented carbide and tungsten&molybdenum
products.
Santon has strong independent developing ,designing and producing capabilities.Compare with
the other companies in the same field in China,Santon is the first company which has been given the
certificate of Qualified Management System ISO9001 by UKAS Attestation Company.
Santon is able to provide high technical and high quality before and after sale
services. There are various high performance cemented carbide products under the
brand 'Santon' ,which includes special inserts ,brazed tips ,cutting tools; also non-standard cemented
carbide materials and components which can be designed according to customers'
requirements. We have earned high reputation from customers both at home and
aboard by using our good pristige,fine quality and enthusiastic service.
Santon holds the spirit of 'standing high and aim fair , marking unremitting efforts' and the quality
policy of 'to live on quality , to lead the technology , to improve continually, to satisfy the customers'.
On the other hand, we try hard to create value for society , to increase value for clients and to realize
value for staff . By using diligence and wisdom , we are promoting sustainable development of our
enterprise in order to create a magnificant future.
1. How long have your company been in this field?
We devoted in manufacturing and R&D of tungsten carbide insert and
other mechanical parts for more than 7 years.
2. Can I investigate the factory on site?
Yes,of course.It's our honour to service for you all the time.
3. How can I pay for my order?
We recommend L/C or T/T,other payment ways are also available.
4. Can I get samples on trial?
Yes,trial order for checking is available.
5. Can we get a discount if the quantity is big enough?
Of course,your large enough order can get best price .
