Tungsten Carbide Welding Inserts Tool Bits With Low Prices

Name: Tungsten Carbide Welding Inserts Tool Bits With Low Prices
Brand: Santon
Availability: InStock

FOB Price

US$ 0.6 - 2 / Piece

20 Pieces(Min. Order)

Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Santon
Model Number	A416		Type	Power Tool Parts

Product Description

tungsten carbide welding inserts tool bits

Cemented carbide tips offered by us are for cutting cast iron, stainless steel, and other alloy steel, etc. Widely used for shaping various equipment and are extensively used in diverse industries. Our in house specialist can adust the weight without changing the material properties to save cost for my clients. All shapes and sizes based on ISO and national standards are available.

Feature

High quality and stability
High performance. dimensionally accurate
Good abrasive and corrosion resistance
High tensile strength
Longer functional life

Technical Parameter

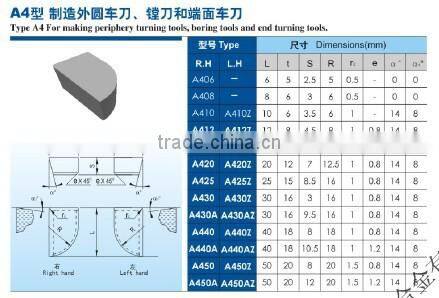

Dimension Tolerance:

Application

Grade information

SantonGrade	ISO Grade	ANSI Grade	Physical and Chemical Property			Performance & Applications
			Density	TRS	Hardness
			g/cm³	n/mm²	HRA
YT15	P10	C7	11.3	1650	92.0	Higher wear resistance with a certain impact toughness, Suitable for semi-finishing of medium chip sections, or finishing of small chip sections of steel, cast steel, alloy steel.
YT14	P20	C6	11.4	1750	91.5	High strength, good impact and shock resistance. Suitable for rough turning, finish milling of carbon steel, and alloy steel during continuous cutting, and semi-finishing and finishing turning during interrupted cutting .
YT5	P30	C5	12.9	2200	90.5	Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting.
YW1	M10	_	13.0	1710	92.5	Better red hardness, resistant to impact load. A good grade for general purposes. Suitable for machining of ordinary steel, cast irons as well as steels hard to be machined such as refractory steel, high manganese steel, and stainless steel, etc.
YW2	M20	_	12.9	1880	91.0	Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc
YG6X	K15	C3	14.9	1890	91.5	Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons.
YG6	K20	C2	14.9	2050	90.5	High wear resistance, better impact and shock resistance. Suitable for semi-finishing, and finishing of cast irons, non-ferrous metal, alloys, and non-metallic materials at moderate cutting speed.
YG8	K30	C1	14.7	2520	90.0	High strength, better impact and shock resistance, but lower wear resistance and cutting speed. Suitable for roughing of cast irons, non-ferrous metal, alloys, and non-metallic materials at low speed.

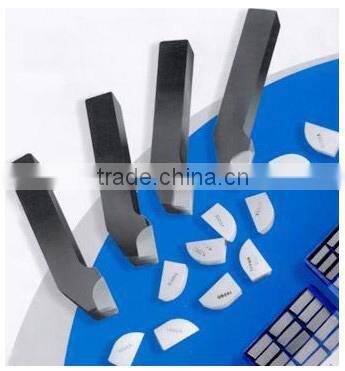

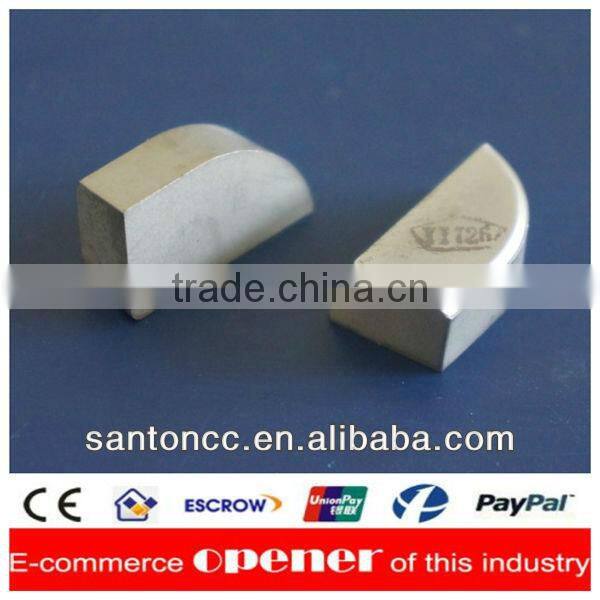

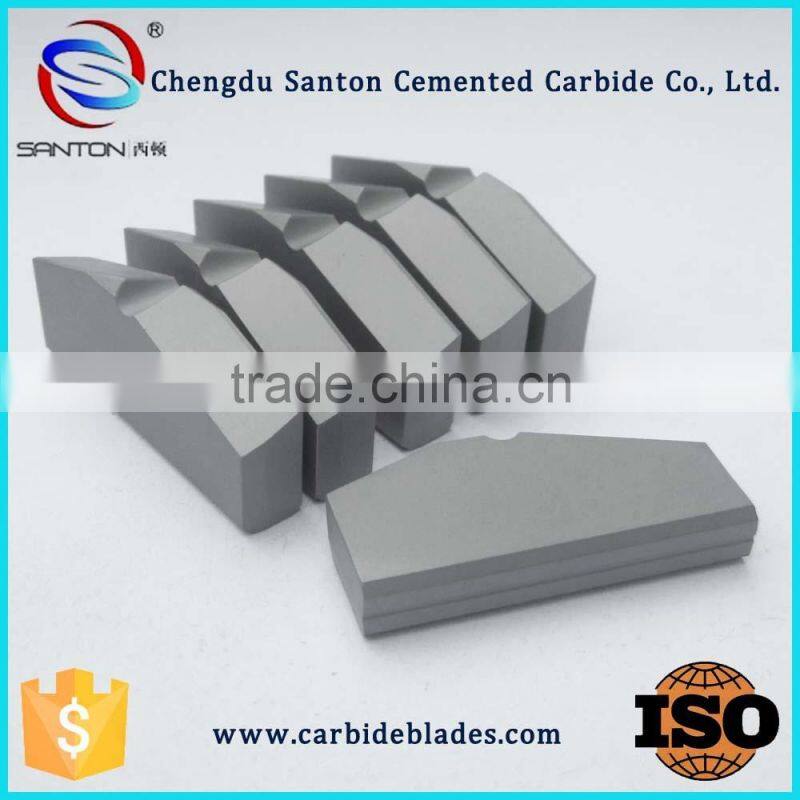

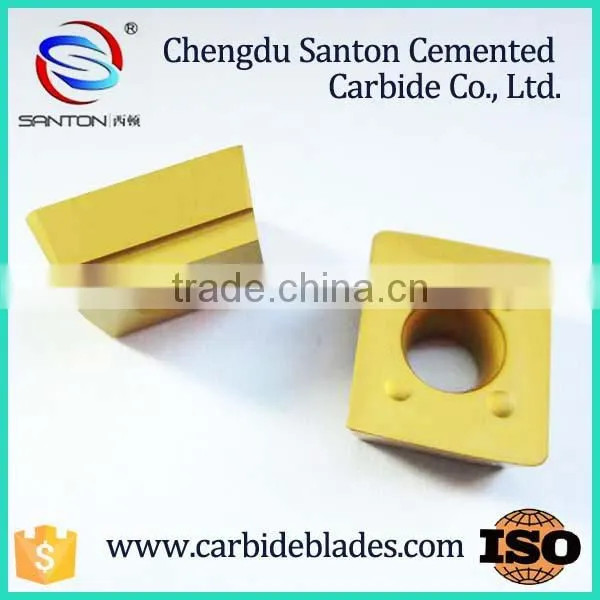

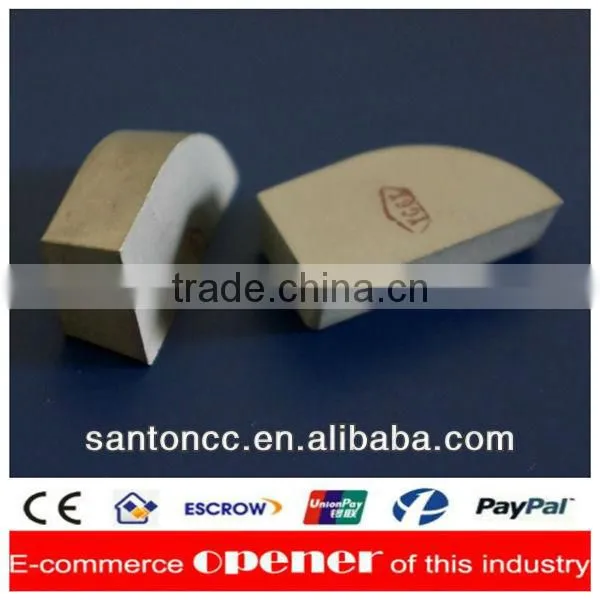

Products Show

Company Information

Chengdu Santon Cemented Carbide Co., Ltd. is a professional manufacturer of cemented tungsten carbide (hard metal) products used for a wide variety of industries and applications. We are offering a full range of sintered carbide grades and grain sizes in both cobalt and nickel binders. We can manufacture small and large scale carbide products as per your drawing. Our in house technicians and experts are quite qualified in this field with over 20 years of experiences. We are a customer focused, innovative and value driven company which manufactures and supplies cemented carbide products to their valuable customers at affordable price.

Our service
Santon's in-house customer service and technical support personnel are highly-experienced in carbide applications, and ready to provide unique solutions to your problems at your convenience. OEM service offered. We strive to become your strategic partner in meeting the demands of your business, and look forward to working with you for all of your carbide product needs.

DDP delivery terms availabe at Santon, it is more convenient than Ebay, you don't need pay for customs duty by yourself, just waiting your goods at home.

FAQ

Q. Are you a manufacturer?	A.Yes, we are.
Q. What's the payment term?	A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or agaisnt copy of BL, or L/C at sight.
Q. How about delivery time?	A. For ready to press items, lead time is 20~25 days, while for new molds, it will need 10 days more to open molds. If you have a urgent order, we will do our utmost to push for it.
Q. What is your minimum order quantity(MOQ)?	A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded late.
Q. What is your warranty?	A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee .

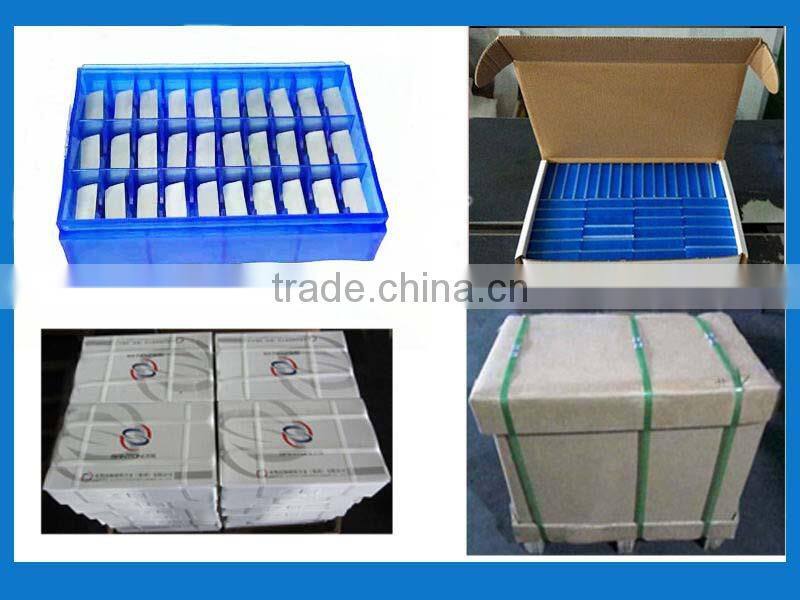

Packaging
