Tungsten Carbide Bar Blanks for VSI Crushers
- Shanghai Shenzhen
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Santon | |
| Model Number | Customized | Alloy Specification | K20,K30,etc. | |
| Particle | 0.6-1.2 μm |
Product Description

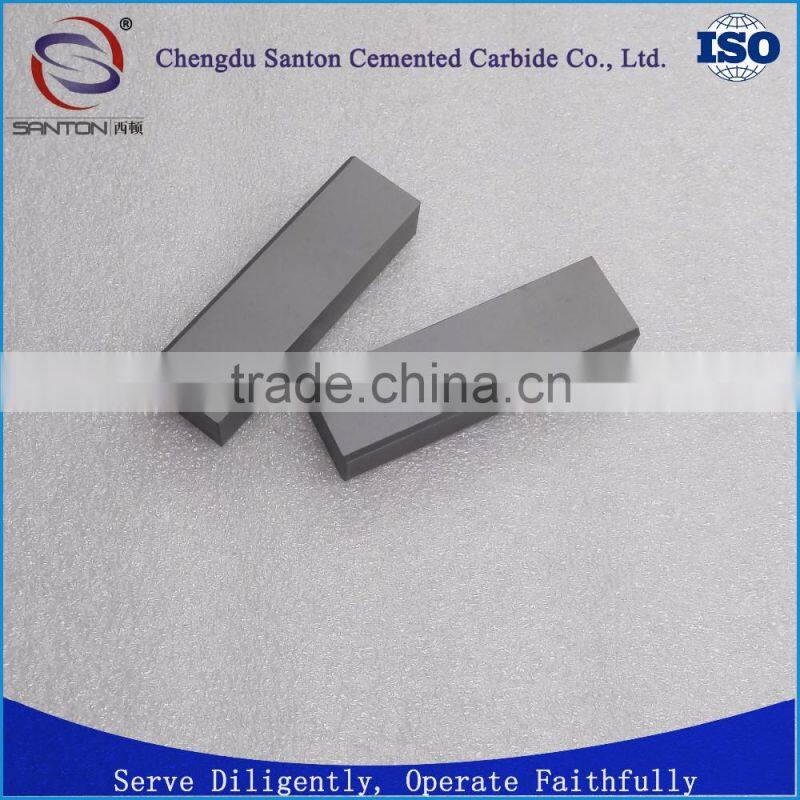

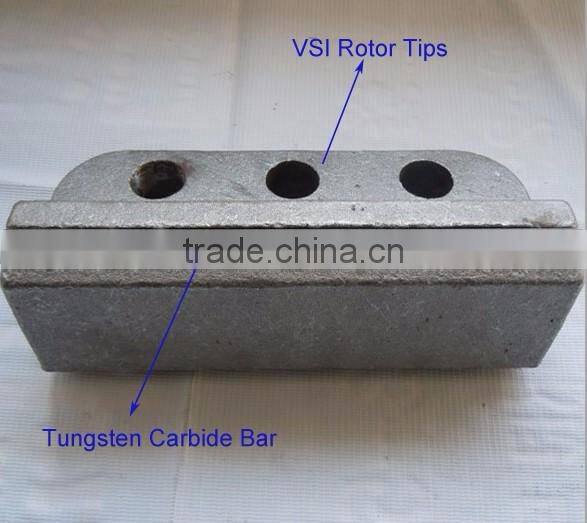

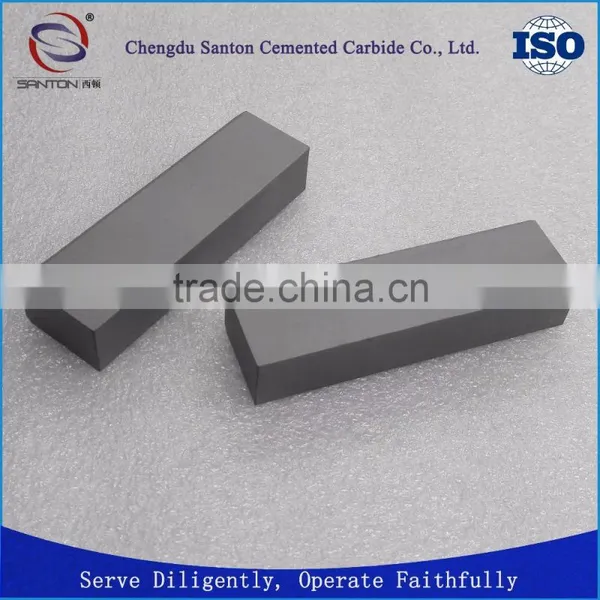

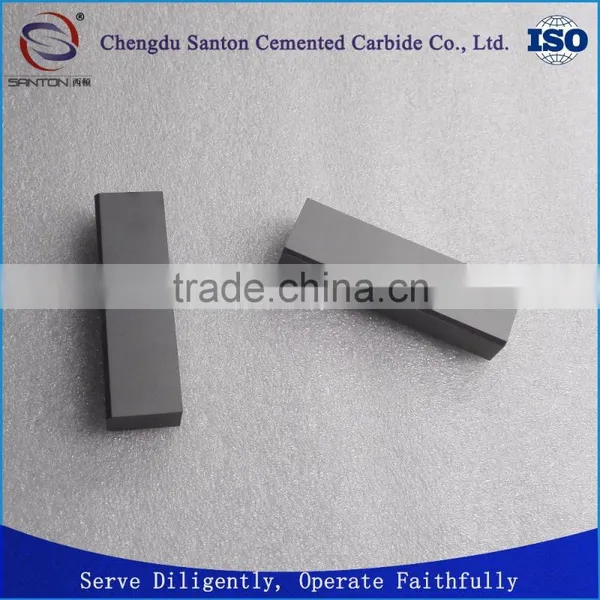

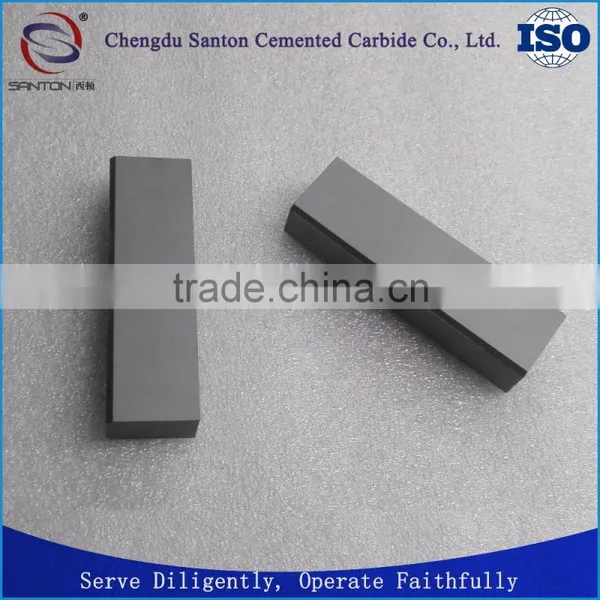

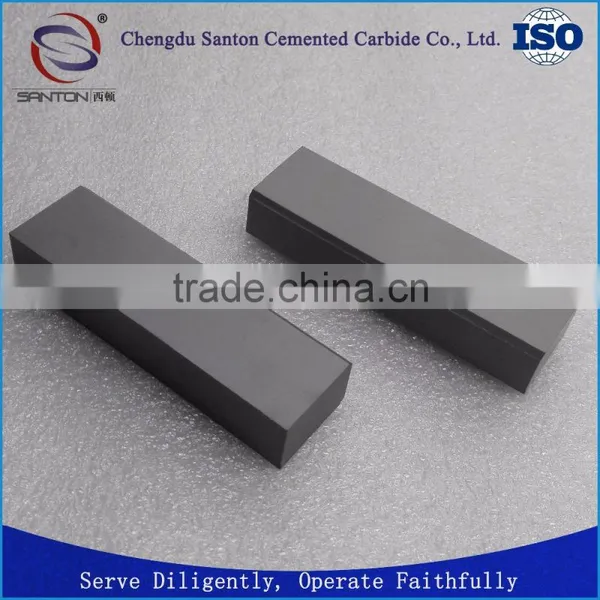

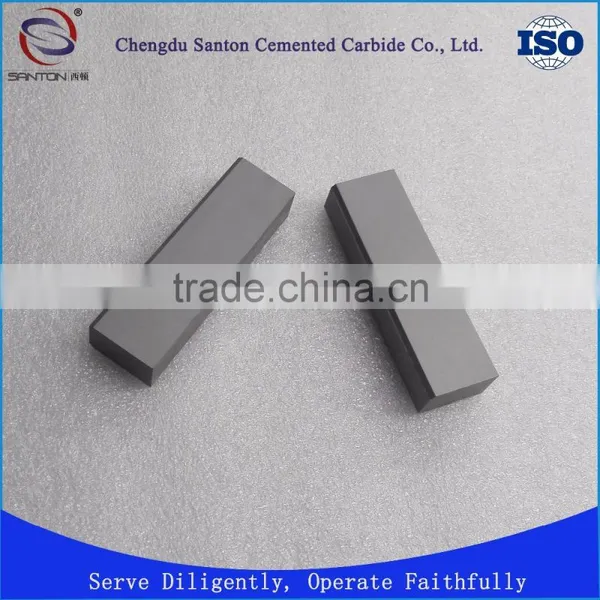

tungsten carbide bar blanks for VSI crushers
The tungsten carbide tips are used for stone cutting (marble,granite,hard stone) in the
quarry,it can fit for all kinds of chain saws.
Customized design is available here!
Feature
- High quality and stability
- High performance. dimensionally accurate
- Good abrasive and corrosion resistance
- High tensile strength
- Easy welding, no crack or chipping
Application
SantonGrade | ISO Grade | ANSI Grade | Physical and Chemical Property | Performance & Applications | ||
Density | TRS | Hardness | ||||
g/cm3 | n/mm2 | HRA | ||||
YT15 | P10 | C7 | 11.3 | 1650 | 92.0 | Higher wear resistance with a certain impact toughness, Suitable for semi-finishing of medium chip sections, or finishing of small chip sections of steel, cast steel, alloy steel. |
YT14 | P20 | C6 | 11.4 | 1750 | 91.5 | High strength, good impact and shock resistance. Suitable for rough turning, finish milling of carbon steel, and alloy steel during continuous cutting, and semi-finishing and finishing turning during interrupted cutting . |
YT5 | P30 | C5 | 12.9 | 2200 | 90.5 | Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting. |
YW1 | M10 | _ | 13.0 | 1710 | 92.5 | Better red hardness, resistant to impact load. A good grade for general purposes. Suitable for machining of ordinary steel, cast irons as well as steels hard to be machined such as refractory steel, high manganese steel, and stainless steel, etc. |
YW2 | M20 | _ | 12.9 | 1880 | 91.0 | Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc |
YG6X | K15 | C3 | 14.9 | 1890 | 91.5 | Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons. |
YG6 | K20 | C2 | 14.9 | 2050 | 90.5 | High wear resistance, better impact and shock resistance. Suitable for semi-finishing, and finishing of cast irons, non-ferrous metal, alloys, and non-metallic materials at moderate cutting speed. |
YG8 | K30 | C1 | 14.7 | 2520 | 90.0 | High strength, better impact and shock resistance, but lower wear resistance and cutting speed. Suitable for roughing of cast irons, non-ferrous metal, alloys, and non-metallic materials at low speed. |
Products Show
Chengdu Santon Cemented Carbide Co., Ltd. is a professional manufacturer of cemented tungsten carbide (hard metal) products used for a wide variety of industries and applications. We are offering a full range of sintered carbide grades and grain sizes in both cobalt and nickel binders. We can manufacture small and large scale carbide products as per your drawing. Our in house technicians and experts are quite qualified in this field with over 20 years of experiences. We are a customer focused, innovative and value driven company which manufactures and supplies cemented carbide products to their valuable customers at affordable price.
Our service
Santon's in-house customer service and technical support personnel are highly-experienced in carbide applications, and ready to provide unique solutions to your problems at your convenience. OEM service offered. We strive to become your strategic partner in meeting the demands of your business, and look forward to working with you for all of your carbide product needs.
DDP delivery terms availabe at Santon, it is more convenient than Ebay, you don't need pay for customs duty by yourself, just waiting your goods at home.
| Q. Are you a manufacturer? | A.Yes, we are. |
| Q. What's the payment term? | A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or agaisnt copy of BL, or L/C at sight. |
| Q. How about delivery time? | A. For ready to press items, lead time is 20~25 days, while for new molds, it will need 10 days more to open molds. If you have a urgent order, we will do our utmost to push for it. |
| Q. What is your minimum order quantity(MOQ)? | A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded late. |
| Q. What is your warranty? | A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee . |
