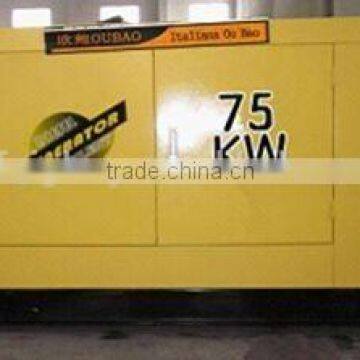

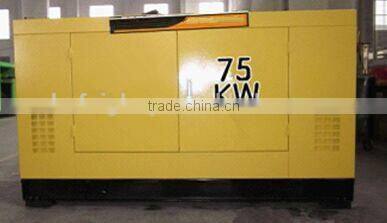

HOT Sales Low Price Silent Diesel Generator

Model:75JK-CY

Dimension (mm): 2800 * 1250 * 1420
Unit Weight (kg): 1300
Prime Power (KW): 75
Standby Power (KW): 90
Frequency: 50 / 60Hz
Output voltage: 400 / 230V
Speed: 1500 / 3000rpm
Power Factor: COSΦ = 0.8 (lagging)
Unit fuel consumption (g / Kw * h): 270
Maximum output current (A): 126
Phase / line number: three-phase four-wire
Noise LP7m: 70

Cooling start: closed water cooling
Start: electric start / automatic
Cylinders: 6 Cylinder
Oil supply: Direct injection
Cold way: cold water
Fuel Type: 0 # light diesel oil
Speed mode: Power Speed
Material: copper
Insulation class: H
Voltage control mode: AVR
Voltage: ≤1%
Degree of protection: IP23
Phase / Connection: three-phase four-wire / Y-type wrap
Frequency adjustment rate (%): ≤ ± 0.5 (steady state)
                                                          + 10 ~ -7 (transient)
Voltage adjustment rate (%): ≤ ± 0.5 (steady state)
                                                     +20 To -15 (transient)
Frequency Volatility (%): ≤ ± 0.5
Voltage fluctuation rate (%): ≤ ± 0.5

Controller system

1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker

2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter,Power indicator lamp, circuit breaker

Optional: Automatic transfer switch (ATS)

        Automatic parallel operation system

Delivery time: 15-25days

Packing: Carton

1. We put your order into our tight production schedule; ensure your punctual delivery time.

 2. Shipping notice/ insurance to you as soon as your order is shipped.

 3. We respect your feedback after receive the goods.

 4. We deal with your complaint within 24hours.

 5. We cooperate with customer to bid tenders. Provide all necessary documents.

 We are looking forward to the cooperation with you.

  Hefei Glory Trading Co., Ltd. specializes in exporting of diesel engine and engine parts. Our products including cylinder liner, piston, connecting rod, valve, crankshaft, camshaft, oil pump, cylinder head and etc.Most of our products usually exported in Southeast Asia and Africa, and we have a god reputation among our customers. We are looking forward to having a pleasant cooperation with you, and establish a long term relationship.
