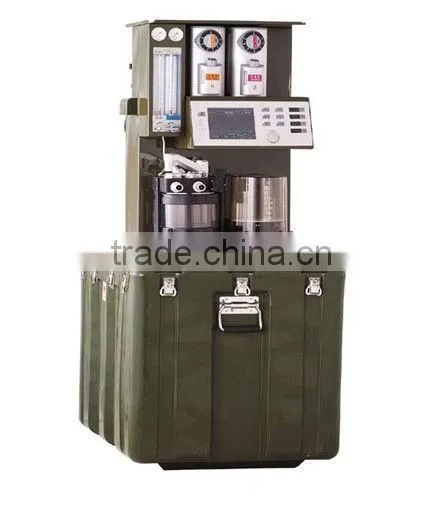

ACM608 Compact Anesthesia machine made in China

Elevating mechanism;

Military packing case;

Closed cabinet is more convenient for storage and shipment.

ANESTHESIA VENTILATOR Main characters

Ventilation modes:                                                    IPPV, PCV, Manual

Display:                                                                      6.4’’ TFT + High-luminance LED display                                                                Monitoring Parameter

Minute Volume

Tidal Volume:                                                            50ml-1200ml, Display Tidal Volume and Respiratory Rate for Mechanical           Respiratory Rate

                                                                                    Airway Pressure (Ppeak, Pmean, PEEP)

Waveform:                                                                 airway pressure waveform

Trend Curve:                                                              full parameters 24-hour trend curve

Communication Port:                                                 RS232

 Parameters Setting:

Respiratory Rate:                                                      4bpm~60bpm

I/E ratio:                                                                    1:0.3, 1:0.5,1:0.7, 1:1.0, 1:1.5,                                                                                     1:2.0, 1:2.5, 1:3.0, 1:3.5, 1:4.0

Alarms Parameter:

Upper Airway pressure Limit: 2kPa – 8kPa

Lower Airway pressure Limit: 0kPa – 2kPa

Upper and Lower Tidal Volume Limit

Upper and Lower Minute Volume Limit

Apnea

Power Supply Failure≥120seconds

Battery Capacity Insufficiency

Gas Supply Failure

Silence time for alarm: ≤120seconds

Pressure Limit for Safety valve: 5.1kPa-6kPa

Power supply: AC220V+(-) 22V, 50Hz+(-) 1Hz

Backup battery: more than 2 hours

ANESTHESIA MACHINE

Flowmeter (two tubes)

O2: 0.1L/min~10L/min

N2O: 0.1L/min-10l/min

Oxygen failure protection device

The proportion between O2 and N2O can be continuously adjustable to assure the O2 concentration above 25%

Safety Performance:

Alarm for oxygen supply failure

Spill valve

Safety valve

O2 Flush:

35L/min~75L/min

Gas Supplies:

O2: 0.3Mpa~0.4Mpa

N2O: 0.3Mpa-0.4Mpa
