Help CenterACM 5500 Syringe Pump Manufacturer 2013 New Products
Related Products
Specifications

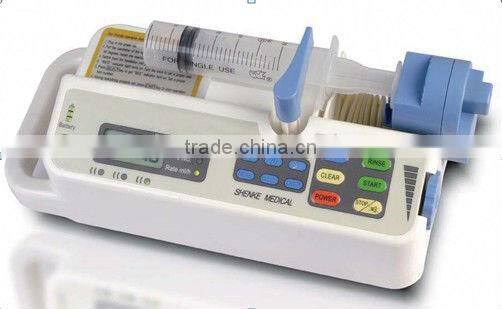

ACM 5500 Syringe pump manufacturer 2013 new products1.Special manufacturer for Syringe Pump with CE approved
ACM 5500 Syringe pump manufacturer 2013 new products
SPECTIONS
Maximum infusion rate 500ml/h (Different syringes have different maximum rate)
Range of infusion rate 10ml syringe:0.1-100ml/h 20mlsyringe:0.1-200ml/h 50mlsyringe:0.1- 500ml/h
Bolus rate 10ml syringe : 100ml/h 20mlsyringe:200ml/h 50mlsyringe:500ml/h
Accumulated infusion volume 0.1-999.9ml
Accuracy ±3%
Power supply AC110-240V, 50/60Hz, 25VA
Battery Rechargeable lithium polymer battery, 7.4 V, 1650mAh
Maximum power consumption 25W
Battery charge When syringe pump is connected to AC power, the battery will automatically start charging (need8~14hrs).,
running more than 5 hours after being fully charged
Fuses 220V 2A×2,12V 2A×2
Displayed information Flow rate, accumulated infusion volume, syringe size, battery capacity, bed No. ,AC power connecting indication, alarm information
Alarm function infusion completion, near completion, occlusion, low battery, syringe abnormal, control abnormal, no AC alarm
Maximum size of the shell 288×130×122 mm(length×width×height)
Maximum weight <3.0 kg
Classification Type B
Water proof IP21
Electrical safety compliance with the requirements of IEC 60601-1
Shell material ABS plastic
Operation environment Environment temperature +5°C--+40°C, atmosphere pressure 50~106kPa,relativehumidity30%~90%
Storage Environment temperature -15°C-+50°C, atmosphere pressure 50~106kPa,relativehumidity30%~90%
Applicable syringes10ml, 20ml and 50ml syringe (use ‘Double Dove’ syringe to test)
Standard Comply with the standards of EN ISO14971:2000 +A1:2003, IEC60601-1:1995+A1+A2,ENIEC60601-1-2:2001,
IEC60601-2- 24,1998,EN980:2003,EN1041:1998,EN60601-1- 4:1996+A1:1999, EN60601-1-6:2004.MDD93/42EEC
Work mode Continuous work mode
