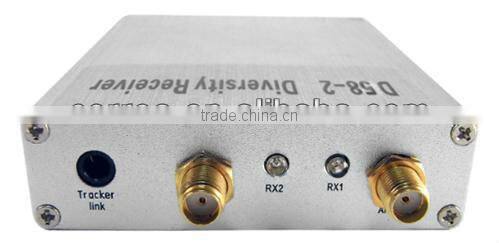

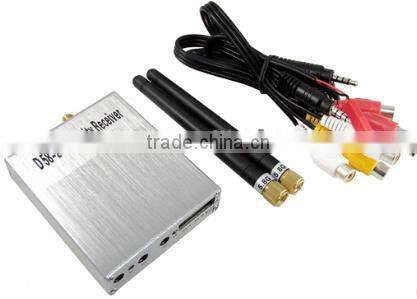

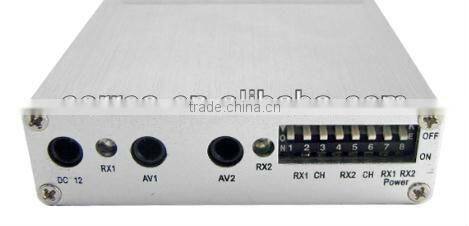

5.8G Dual D58-2 Diversity FPV Receiver

5.8G Dual D58-2 Diversity FPV Receiver thumbnail-1
5.8G Dual D58-2 Diversity FPV Receiver photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
D58-2 Diversity
Contact Supplier Request Quote Chat Now
Shenzhen Correa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Correa
Model Number D58-2 Diversity

Specifications

32CH 5.8G Dual D58 Diversity FPV Receiver
1. 32CH receiving
2. High sensitivity

This receiver allows you to use 1 receiver for 2 transmitters at the same time. These D58-2 receivers also support "Diversity Mode", meaning one receivers with 2 different polarized antennas or 2 different types of antenna to COMPARE & SWITCH automatically for receiving the best video signal. It is the ultimate solution when you have two high gain directional antennas or one stock antenna with one high gain antenna installed to a diversity receiver. In addition, if you have an auto antenna tracker, these receivers are the must for you antenna tracker!

Feature of this Diversity Receiver

  • Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
  • Triple, buffered AV outputs
  • Can receive 2 different channels at the same time
  • Not affect by 2.4GHz R/C Radios
  • AV Receiver with Diversity inputs
  • Small, light weight,durable,anodized aluminum case

Receiver Frequency:

CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz Video Output: 75Ω/1Vp­p Audio Output: 10KΩ/500mVp­p TV System: PAL/NTSC/SECAM Input Voltage: 8-12V/500mA



5.8G Dual D58-2 Diversity FPV Receiver5.8G Dual D58-2 Diversity FPV Receiver5.8G Dual D58-2 Diversity FPV Receiver
