Home > Toys > Remote Control Toys > RC Car > 5.8GHz 32CH 600mW AV Transmitter TS832 and Receiver RC832 TX RX Combo

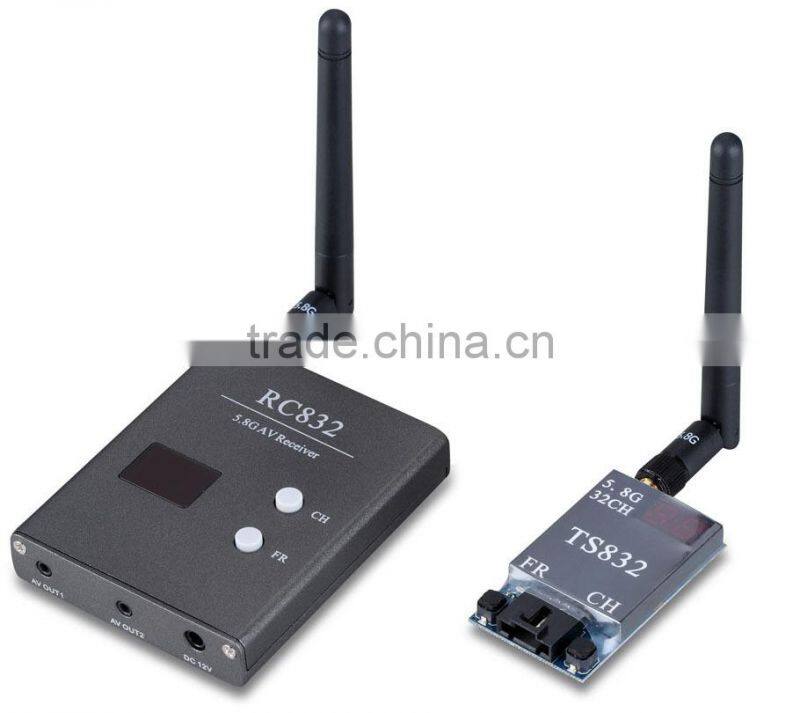

5.8GHz 32CH 600mW AV Transmitter TS832 and Receiver RC832 TX RX Combo
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Battery
Material:
Other, Alloy + Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5.8G Dual D58-2 Diversity FPV ReceiverNegotiableMOQ: 1 Piece -
1.2GHz 800mW Video Camera CCTV 1KM Wireless TransmitterUS$ 44 - 52MOQ: 1 Set
-
RC832 TS832 Module 32CH 600mW 5.8 TXNegotiableMOQ: 1 Set
-
RC Parts 5.8GHz 2000mW Long Range Wireless FPV Video TransmitterUS$ 25 - 38MOQ: 1 Set
-
Wireless TX RX Video Transmitter FPV 1.2NegotiableMOQ: 1 Set
Type
Helicopter
Power
Battery
Material
Other, Alloy + Plastic
Scale
Other, 1:1
Radio Control Style
RC Hobby
Place of Origin
Guangdong, China
Brand Name
CORREA
Model Number
TS832 + RC832
Specifications
FPV 5.8GHz 32CH 600mW AV Transmitter TS832 and Receiver RC832 Combo1. Light weight TX
2. 32 channels working
Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TX TS832 specs:
Power input: 7.4-16V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 21g
Dimension: 54x 32x 10mm(excluding antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
