5.8 GHz 2W 8CH Wireless Video Transmitter 5.8G FPV TX RX 2000mW
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
CS-H2
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.3G Wireless Video VTx 200mW 1.2G Transmitter FPVNegotiableMOQ: 1 Piece -
FPV Antenna Accessory RF Coaxial Wire RG316 Cable 10CM SMA Female to 90 Degree Right Angled SMA MaleNegotiableMOQ: 1 Piece
-
SMA Male to SMA Female 6" Extension Cable FPV Fatshark ImmersionRC CompatibleNegotiableMOQ: 1 Piece
-
15CM RG316 Extension Cable SMA Male Plug to SMA Female Pigtail CableNegotiableMOQ: 1 Piece
-
Gold Plated SMA Male Crimp Connector With Pin for RG58 CableNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Correa
Model Number
CS-H2

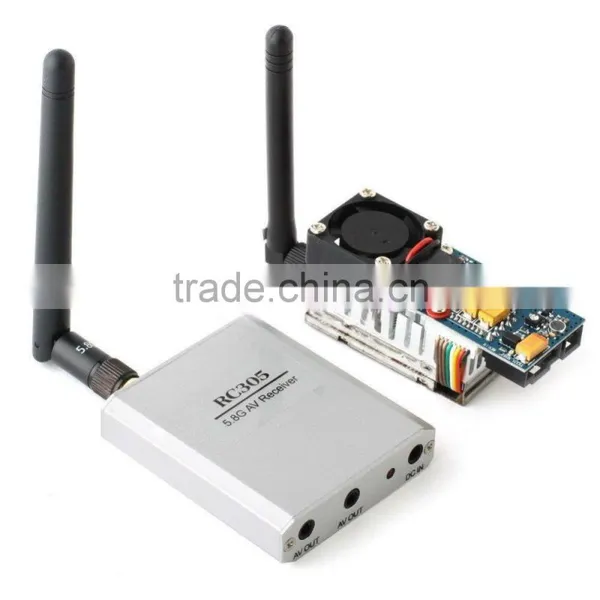

5.8 GHz 2W 8CH Wireless Video Transmitter 5.8G FPV TX RX 2000mW
5.8GHz 2000mW Wireless AV Transmitter:
Transmitter Frequency / Channel Amount:5705-5945MHz / 8CH
Output Power:2000mW/33dBm
Transmission Distance: Min. 8KM line of sight
Frequency Control:Built-in frequency & phase lock loop
AV input:bAnalog AV signal input
ANT connector:SMA (needle inside)
Power Supply: DC 7-12 volts
Current Supply:1500mA
Size: 68*26*28mm
Net weight:70g
Gross weight:85g
5.8GHz Wireless AV Receiver
Receiving Frequency:5705-5945MHz / 8CH
Receiving Sensitivity:-90dBm
Frequency Control:Built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(needle inside)
Power supply voltage:DC 7-12V
Supply current: 150mA
Dimension: 61*52*13mm
Gross weight:120g
Output Power:2000mW/33dBm
Transmission Distance: Min. 8KM line of sight
Frequency Control:Built-in frequency & phase lock loop
AV input:bAnalog AV signal input
ANT connector:SMA (needle inside)
Power Supply: DC 7-12 volts
Current Supply:1500mA
Size: 68*26*28mm
Net weight:70g
Gross weight:85g
5.8GHz Wireless AV Receiver
Receiving Frequency:5705-5945MHz / 8CH
Receiving Sensitivity:-90dBm
Frequency Control:Built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(needle inside)
Power supply voltage:DC 7-12V
Supply current: 150mA
Dimension: 61*52*13mm
Gross weight:120g

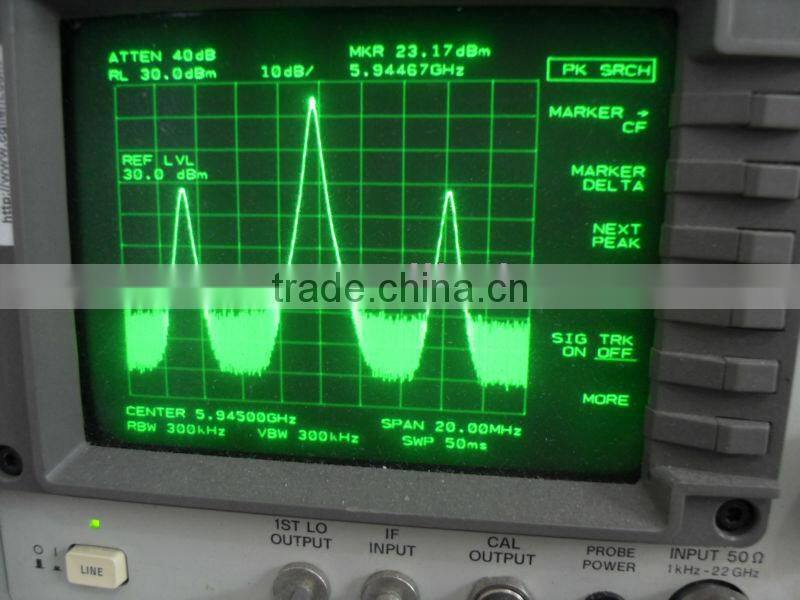

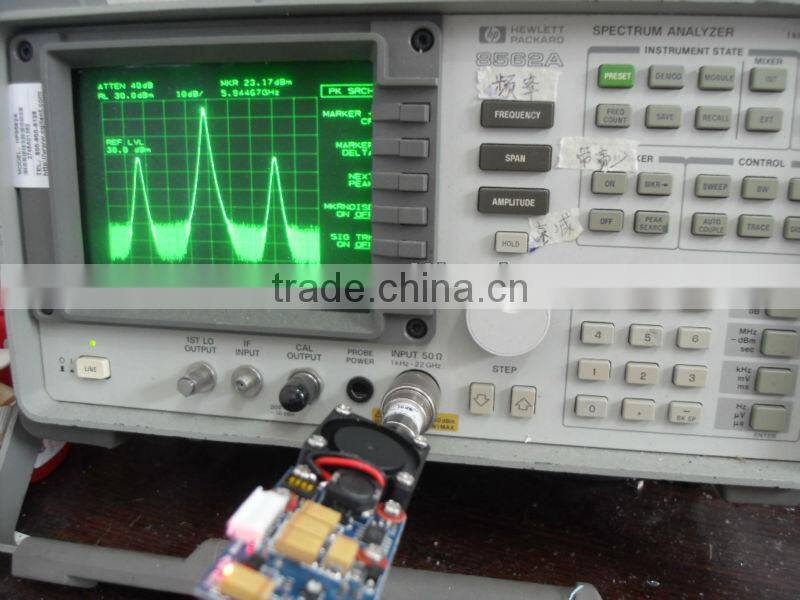

Performance Testing:
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2012
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
