Specifications

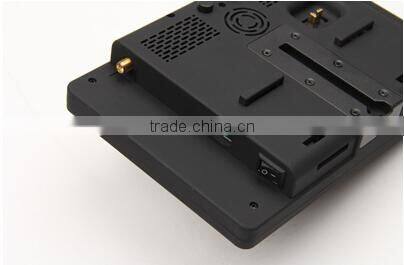

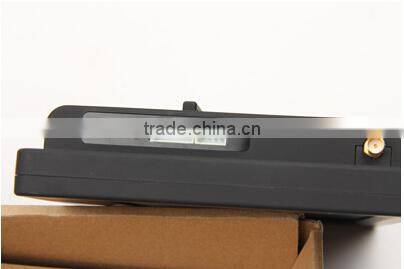

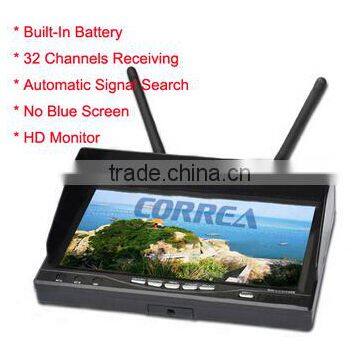

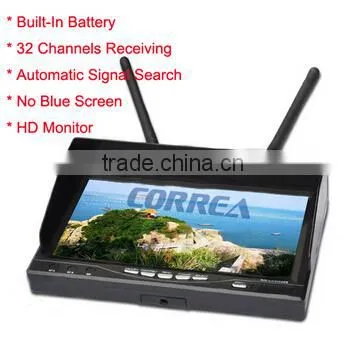

Drop shipping hot Galaxy D4 FPV 5.8G 32CH LCD FPV Monitor1.Built-in battery
2.Automatic signal search
Drop shipping hot Galaxy D4 FPV 5.8G 32CH LCD FPV Monitor
LED Screen | Display resolution | 800×480 |
Backlight | LED | |
Brightness | 700 Lux | |
Aspect ratio | 16:9 | |
Response time | 10ms | |
Color system | PAL/NTSC | |
Power Supply | Working voltage | DC:2S-6S battery |
Current | 850MA @ 12V | |
Input | Signal | Video(PAL/NTSC),Audio |
Output
| Signal | Video,Audio |
12V(input power >12V) | 100mA | |
DVR | Resolution | D1/VGA/QVGA |
TF card supported | Max 32G | |
Specification
| Packing size | 205mm×130mm×106mm |
Monitor size | 183mm×121mm×31mm | |
Gross weight | 0.66kg | |
Matching antenna interface | Interface | RP-SMA |
Accessories Included:

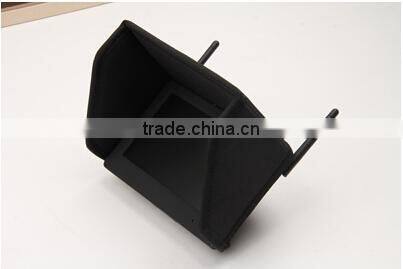

| Light blocking drape | 1 |
Velcro cable tie | 1 | |
Female T-plug to male XT60 plug connector cable | 1 | |
Female to female T-plug connector extensioncable | 1 | |
AV input/output cable | 1 | |
Power supply output cable | 1 | |
Interface descriptions | Yellow | Video input |
Red | Audio input | |
Black | Video output | |
White | Audio output |
High Intergrated
Now, our SV700 Ground Station has successfully solved this problem by integrating the following useful systems into one system: 1. The display system of high brightness, high definition, high sensitivity and no blue screen; 2. The sensitive 5.8G dual redundant receiving system; 3. The DVR black box system; 4. The timing system; 5. The voltmeter.
New, Light, Thin
This 7-inch monitor is different from the out-dated 7-inch vehicle-mounted LCD screen. Instead, it is an all-in-one machine- thinnest and lightest, but with the most functions. Every the design details are based on the concept of saving space as much as possible.
High Brightness LED Display
We deeply understand that you must prefer high brightness LED display when flying outdoors, especially under the bright sunny day. The light level can be up to 700 lux. You can easily watch the videos clearly.
Auto Brightness adjustment to save energy and protect your eyes
The feature of high brightness is designed for daytime use, however, it is not suitable for the use in dark evenings. To be responsible for your health, our SV700 Ground Station has another feature, that is, auto brightness adjustment. The brightness of the screen will be adjusted according to the surrounding light conditions in order to protect your eyes. On the other hand, auto brightness adjustment can save more than 30% energy.
Highly sensitive/no delay/no blue screen receiving system
We believe that you must panic when blue screen or black screen occurs. Even it only lasts for 1~2 seconds, but your flying machine may disappear from sight. Thus highly sensitive processing chip is adopted to make sure the weakest signal can be received! It make your flight more safe!
Dual redundant receiving system

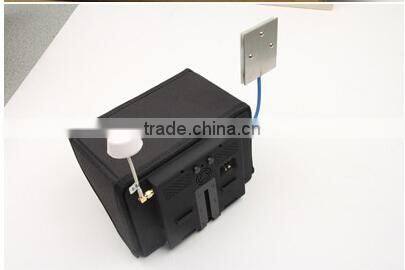

Usually flat panel antenna is used for long distance flight, and clover leaf antenna for short distance flight. Is it possible for these two antennas work in one system? Yes! The dual redundant receiving system of the SV700 all-in-one monitor is such a system that has adopted both flat panel antenna and clover leaf antenna. Now you can easily control your machine to fly far or close, just as you wish!
DVR black box system
Nothing can be more upset than going home with only the remoter. DVR black box inside the machine will record the video, GPS and OSD information, all of which can be checked back any time by pressing just one key. Though DVR system is included in the SV700 Ground Station, it won’t accur any delay or cause image quality damage in the video displaying.
Auto / manual channels scan, human-machine interaction
You don’t need to worry about channel setting any more by using our SV700 Ground Station. Its auto / manual channel scan function allow you to find a matched channel easily. Furthermore, human-machine interaction design allow you to get hold of the whole searching process. 32 channels 5.8 GHz analogue image transmission are supported.
Timer / Alarm
According to the survey were caused usually by overtime flying. Crashes will not only cause economic loss, but also be dangerous for people. The timer/alarm designed in our SV700 Ground Station helps you accurately grasp every taking off and landing time so that you know clearly what to do.
Voltmeter
The built-in voltmeter of our SV700 Ground Station shows you the voltage value so that you know when to change the battery.
