6 inch (152mm) Heavy duty Industrial mecanum wheel NM152A(professional custom,Payload:150/pcs)

                                     NEXUSROBOT MECANUM WHEELS

Heavy Duty Mecanum Wheels

With a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, the resulting combination of all these forces produce a total force vector in any desired direction. thus allowing the platform to move freely in the direction of the resulting force vector, without changing of the mecanum wheels themselves.It is perfect for tight space.These wheels are sold in assembled units, with many rollers per wheel. Each roller is a heavy-duty wheel itself.These offers capacity up to pounds at least.Typical applications include Material handling, table lift, and Heavy dusty vehicle etc.Especially in warehousing andlogistics,could improve efficiency and promote the development of the industry.Mecanum wheel would have a huge technological revolution.

Specification

Mecanum wheel: Nexus-NM152A

Size: 6 inch

Limit Load:150KG

Suggested Load:200KG

Outside diameter: 152mm

Width:80mm

Quantity of rollers:8

Self weight:2.6KG

Side part material:high strength Aluminum

Wheel core material:high strength 45#steel

Covering material: importing polyurethane

Drawings of NM254A

Feature

Especially Flexible

a.Due to omnidirectional drive technology,the vehicle can be

moved in any direction with mecanum wheels

b.Even in extreme surface.

Especially Safe

a.Travel stability and safty, simple operation

b.Easy to control.

Especially Efficient

a.Navigate in tight spaces,would save considerable time and reduce costs

b.Optimize the storage space, keep scientific and reasonable place

Especially strong

a.Compared to the size of wheels, has more high load capacity

b.Long working life

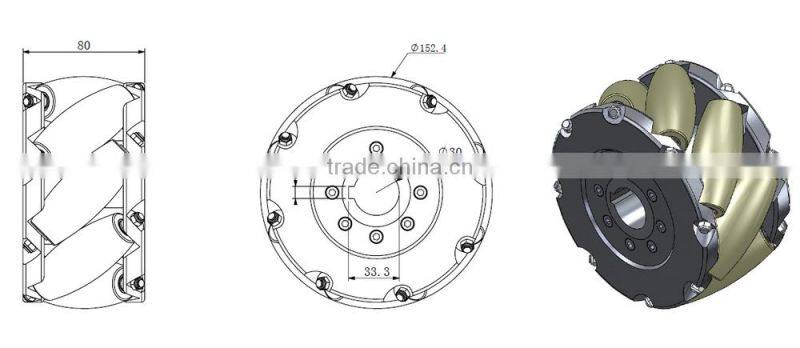

Drawings of mecanum wheel

Product

Nexus has produced several heavy duty mecanum wheels of varying design and size,

ranging from 4 inch diameter to 20 inch diameter(or more than 20 inch), Each design and size can

be customized to suit the specific application of a transporter.

Heavy Duty Mecanum Wheels( Form is only for your reference)
