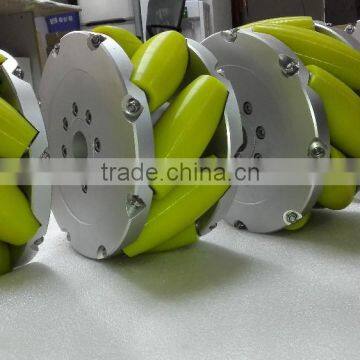

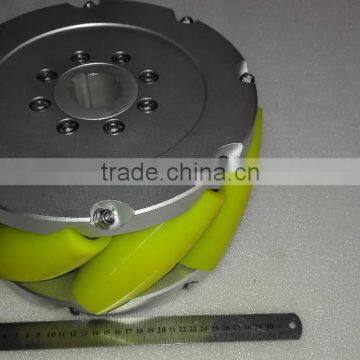

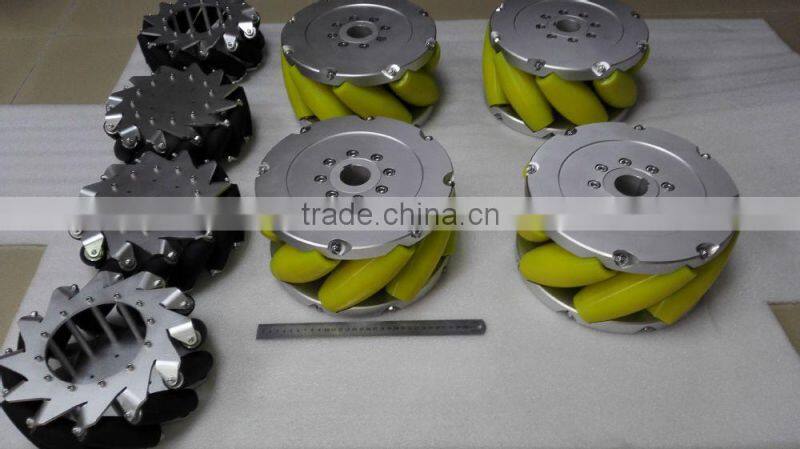

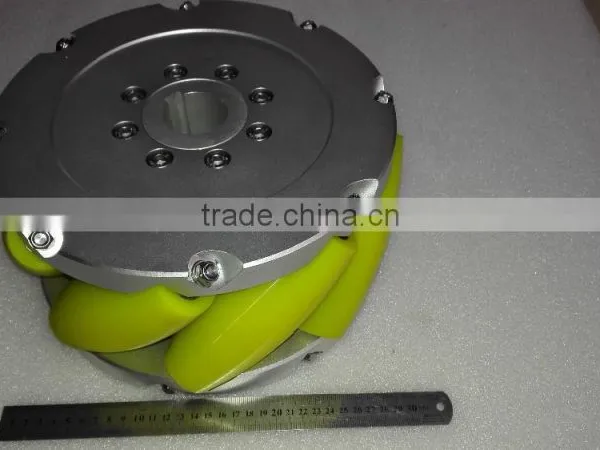

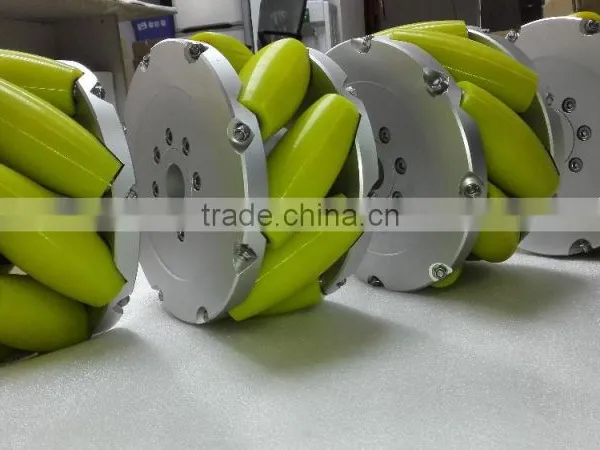

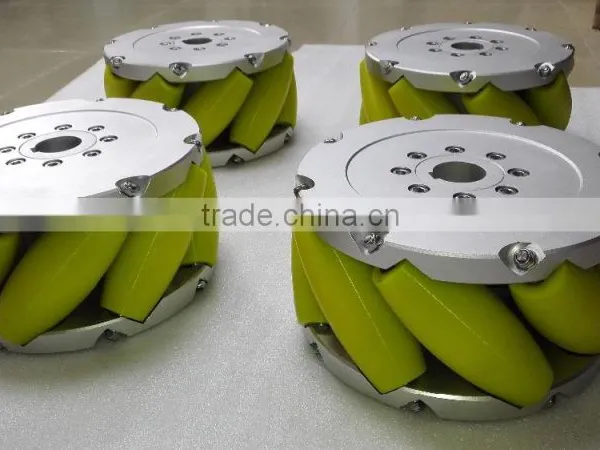

Help Center12 Inch (304.8mm) Heavy Duty Industrial Mecanum Wheel NM304C(professional Custom,Payload:500~800kg/pcs)
Related Products
-
5mm Aluminum Mounting Hub 18028US$ 6.82 - 6.82MOQ: 1 Piece -
3mm Aluminum Mounting Hub 18027US$ 6.82 - 6.82MOQ: 1 Piece
-
6mm Aluminum Hub for 48mm Aluminum Omni Wheel 18022US$ 7.59 - 7.59MOQ: 1 Piece
-
58mm Double Aluminum Assebling Robot Omni Wheel and Servo Motor 14135US$ 8.36 - 8.36MOQ: 1 Piece
-
14mm Aluminum Key HubsUS$ 16.5 - 16.5MOQ: 1 Piece
NEXUSROBOT MECANUM WHEELS
Heavy Duty Mecanum Wheels
With a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, the resulting combination of all these forces produce a total force vector in any desired direction. thus allowing the platform to move freely in the direction of the resulting force vector, without changing of the mecanum wheels themselves.It is perfect for tight space.These wheels are sold in assembled units, with many rollers per wheel. Each roller is a heavy-duty wheel itself.These offers capacity up to pounds at least.Typical applications include Material handling, table lift, and Heavy dusty vehicle etc.Especially in warehousing andlogistics,could improve efficiency and promote the development of the industry.Mecanum wheel would have a huge technological revolution.

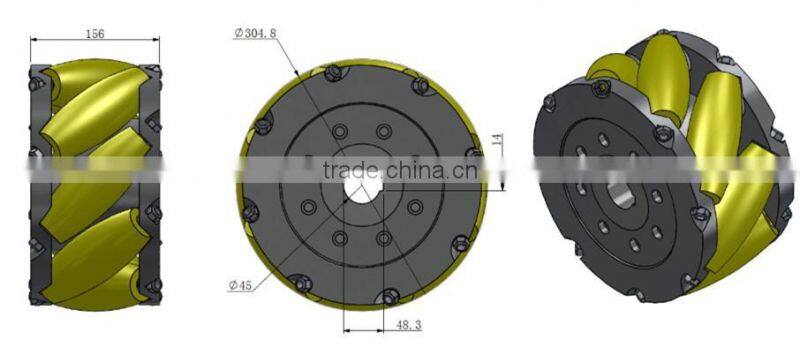

Specification
Nexus-NM304C
Size: 12 inch
Limit Load:800KG
Suggested Load:500KG
Outside diameter: 304mm
Width:156mm
Quantity of rollers:8
Self weight:25KG
Side part material:high strength Aluminum
Wheel core material:high strength 45#steel
Covering material: importing polyurethane
Feature
Especially Flexible
a.Due to omnidirectional drive technology,the vehicle can be
moved in any direction with mecanum wheels
b.Even in extreme surface.
Especially Safe
a.Travel stability and safty, simple operation
b.Easy to control.
Especially Efficient
a.Navigate in tight spaces,would save considerable time and reduce costs
b.Optimize the storage space, keep scientific and reasonable place
Especially strong
a.Compared to the size of wheels, has more high load capacity
b.Long working life
Product

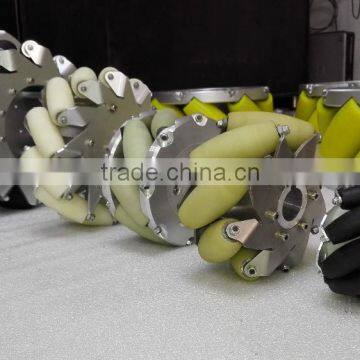

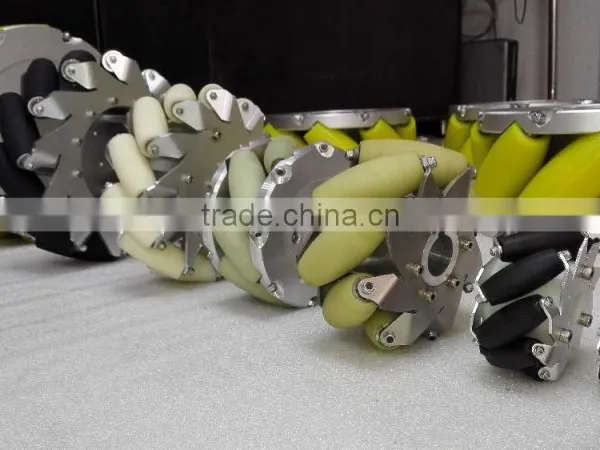

Nexus has produced several heavy duty mecanum wheels of varying design and size,
ranging from 4 inch diameter to 20 inch diameter(or more than 20 inch), Each design and size can
be customized to suit the specific application of a transporter.
Heavy Duty Mecanum Wheels( Form is only for your reference)
Email:omniwheelbackup @nexusrobot.com
