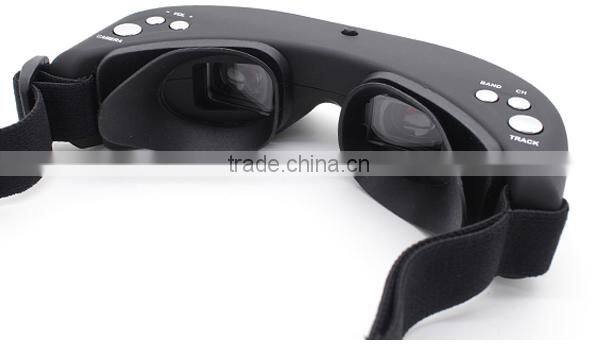

Help CenterSkyzone SKY01 V2 5.8GHz 40 Channel Head Tracker AIO Wireless FPV Goggles
Related Products
-
RCD 3015 Mini HDMI to AV Interface Converter for FPV Video TransmitterNegotiableMOQ: 1 Piece -
High Quality A Class Ace 3S1P 20C 25C 30C 35C 40C 11.1V 2200mAh 3S Lipo BatteryNegotiableMOQ: 1 Piece
-
RoboCat 270 Frame Kit Carbon Fiber Mini Drones 270mm FPV Racing Quadcopter PartsNegotiableMOQ: 1 Piece
-
FPV 5.8G Clover Leaf Omni-directional Circular Polarized Antenna SetNegotiableMOQ: 1 Pair
-
5G8 Wireless Video Downlink 32CH 400mW 5.8GHz A/V FPV TransmitterNegotiableMOQ: 1 Piece
The updated version of 5 bands with 40 channels, including the new racing band channels.
Features:
-Built-in 40CH 5.8G Diversity that is compatible with most FPV 5.8G transmitters on the market
-Built-in self calibrating headtrack which is a very complicated composition of gyro, inerial and compass
-Builti-in Dual 854X480(WVGA) Monitor, 1,229,760 color sub-pixels, 350cd/m2 brightness
-Built-in external camera for surrounding view (640X480)
- AV in/ AV out/ Earphone socket
The Benefits of Goggles with Diversity
A diversity system uses two different video receivers, and two different video antennas. This gives you a better chance of receiving a clean and unobstructed signal. These are connected by a diversity unit that chooses the best video signal. You could mount one of the stock antennas vertically and one horizontally. For best results you want to use different types of antennas. This gives you the option of using a long range directional antenna for one receiver and a non-directional antenna for the other. The diversity system automatically chooses which antenna is receiving the best signal at any moment.
External Camera
The 640x480 external camera was added to allow you to do things without removing your goggles. When you have to pull your goggles off you have the issue of your eyes adjusting to the external light. You also have to physically remove the goggles or situate them on your head so they don't fall off. The external camera allows you to keep the goggles on for small jobs and landing. The lens on the external camera does seem to make things look farther away.
5.8 Diversity Unit
These goggles have a built-in 10 channel/5 band 5.8G diversity unit. This allows you to use this unit with most FPV 5.8G transmitters on the market.
Dual Receivers & Dual Antennas

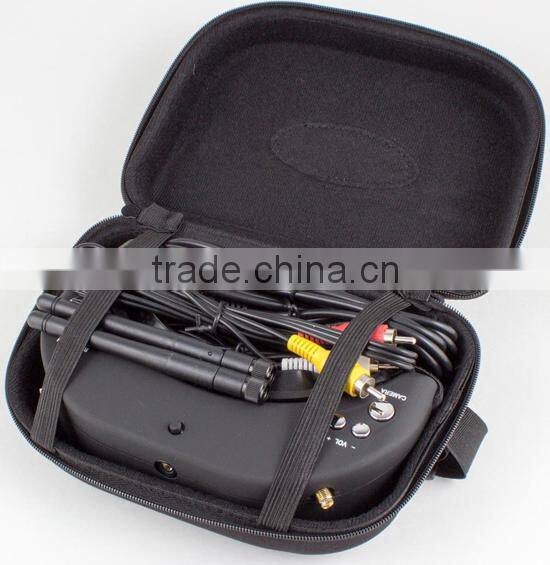

The unit comes with two vertical omni stock 50ohm antennas with SMA connectors.
Monitors
The goggles have dual 854X480(WVGA) monitors with 1,229,760 color sub-pixels.
Head Tracking
These goggles have built-in self calibrating head tracking that utilizes a gyro.
-PPM Channel Setup
-Pan Tracking Range Setting
NOTE - If you use the Futaba trainer plug you can power the goggles that way (no external lipo needed).
FOV (Field of View)
30 degrees (diagonal).
