(6 Inch)152mm Aluminum Mecanum Wheels Set(2Left, 2Right)Basic 14165

(6 Inch)152mm Aluminum Mecanum Wheels Set(2Left, 2Right)Basic 14165 thumbnail-1
(6 Inch)152mm Aluminum Mecanum Wheels Set(2Left, 2Right)Basic 14165 photo-1
US$ 143 - 143 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Nexus
Model Number:
14165
Contact Supplier Request Quote Chat Now
Shenzhen Correa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Nexus
Model Number 14165

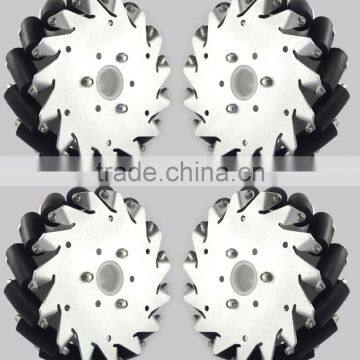

(6 inch)152mm Aluminum Mecanum wheels Set(2Left, 2Right)Basic 14165

The aluminum mecanum wheel include a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel. Mecanum wheel using a standard chssis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.



Specifications:

  • Diameter:152.4mm(6 inch)
  • Width:55.52mm
  • Number of Rollers per wheel:15
  • Number of Plates per wheel:2
  • Body material: Aluminium alloy
  • Roller material: Nylon+TPR
  • Spacer material: Nylon
  • Length of roller:38.1mm
  • Net weight per wheel:600
  • Load capacity per wheel:15Kg



Compatible with coupling size link:

 6mm Hub 18007:

http://www.china.cn/product-detail/6mm-universel-de-montage-en-aluminium_60515102218.html?spm=a2700.7724838.0.0.l1C2SB

 8mm Hub 18008:

http://www.china.cn/product-detail/8mm-Universal-Aluminum-hubs-18008_60356962718.html?spm=a2700.7724838.0.0.72oaet

 10mm Hub 18009:

http://wholesaler.china.cn/product-detail/10mm-universal-aluminum-mounting-hub-18009_60237236599.html?spm=a2700.7724838.0.0.hxWm5A
 12mm Hub 18010:

http://www.china.cn/product-detail/12mm-Universal-Aluminum-hubs-18010_60357424539.html?spm=a2700.7724838.0.0.NuE90o
16mm Hub 18012:

http://reseller.china.cn/product-detail/16mm-universal-aluminum-mounting-hubs-for_60237852662.html?spm=a2700.7724838.0.0.quxJFe
8mm Aluminum Key Hub 18024:

http://reseller.china.cn/product-detail/8mm-Aluminum-Key-Hub-18024_60240606346.html?spm=a2700.7724838.0.0.y8cz1Z
10mm Aluminum Key Hub 18025:

http://reseller.china.cn/product-detail/10mm-Aluminum-Key-Hub-18025_60240593948.html?spm=a2700.7724838.0.0.x6ADbU
16mm Aluminum Key Hub 18026:

http://reseller.china.cn/product-detail/16mm-Aluminum-Key-Hub-18026_60240618302.html?spm=a2700.7724838.0.0.0vCumY
 12mm Key Hub 18017:

http://reseller.china.cn/product-detail/12mm-Aluminum-Key-Hub-18017_60240253563.html?spm=a2700.7724838.0.0.ik4aGv
10mm Stainless Steel Key Hub 18029:

http://reseller.china.cn/product-detail/10mm-Stainless-Steel-Key-Hub-18029_60241335617.html?spm=a2700.7724838.0.0.dryUDF
12mm Stainless Steel Key Hub 18030:

http://reseller.china.cn/product-detail/12mm-Stainless-Steel-Key-Hub-18030_60241576967.html?spm=a2700.7724838.0.0.Ib0Qbq
16mm Stainless Steel Key Hub 18031:

http://reseller.china.cn/product-detail/16mm-Stainless-Steel-Key-Hub-18031_60241350805.html?spm=a2700.7724838.0.0.65XgeH



6mm new aluminum spacer  with key (hub)18032:http://reseller.china.cn/product-detail/6mm-new-aluminum-spacer-hub-with_60240978179.html?spm=a2700.7724838.0.0.s82ilP



8mm new aluminum spacer  with key (hub)18033:http://reseller.china.cn/product-detail/8mm-new-aluminum-spacer-hub-with_60242277855.html?spm=a2700.7724838.0.0.UwYWdk



10mm new aluminum spacer  with key (hub)18034:http://www.china.cn/product-detail/10mm-new-aluminum-spacer-hub-with_60514886921.html?spm=a2700.7724838.0.0.7z8xE9



We can manufacture upon customers' requested design, and also can make special design for customers.



Payment:

1. Aliexpress accept Escrow/ Credit card/WebMoney.
2. Full payment must be received within 7 working days after the auction ends,
if you have problems on making payment, Please contact us as soon as possible.



Shipping:

1. We ship to Alixpress's address ONLY. Please make sure your address in Alixpress is matched with your shipping address before you pay.
2.As usual,we send the package out within 1-2 days once we get your payment.and pls keep in touch once you placed the order.
3. We strive our best to provide you the most reliable, affordable way of shipping service.
But sometimes international delivery is highly depended on the Courier Company and local customs/duties.If you do not receive your item on time, please contact us immediately for further assistance. Thank you for your understanding.
4. Import duties, taxes and charges are not included in the item price or shipping charges.



Warranty:

1.This item is covered by 3 months warranty. If you`re not pleased with your purchase, we`ll be happy to make an exchange or refund in 7 days.
2. For any exchange or refund, we need the product must be in its original condition,
including the box, and all the accessories. Buyers is responsible for the returning shipping cost .
3. Please contact us before you return the item, we will offer you the right return address.


Feedback:

1. Our mission:To build the brand with profundity,to serve the masses with quality.

2. If you are satisfied with the purchase and our total service, your comment is very important in our business success.
Please take a minute to leave us a positive feedback with an overall Detailed Selling Rating of 5.


3. If you are not satisfied with your purchase in any way, Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.





Packaging Details
  • Unit Type: set
  • Package Weight: 2.800kg (6.17lb.)
  • Package Size: 33cm x 22cm x 10cm (12.99in x 8.66in x 3.94in)
