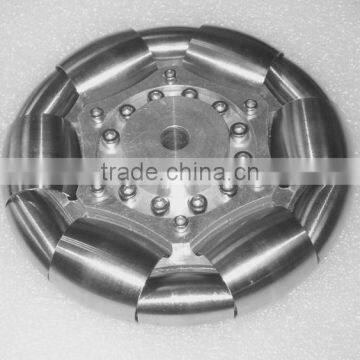

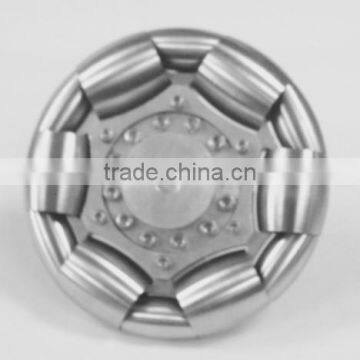

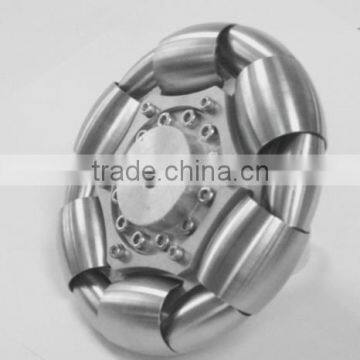

100mm stainless steel rollers omni wheel for ball balance ballbot 14183
Omni-directional wheel (omni wheel) rolling wheels as normal wheel, almost frictionless lateral sliding (it turns don’t slip).Using the omni-directional wheel, could let your robot turn smooth or the establish a complete power transmission system.Each omni-directional wheel are able to opearate independently.rollers and compact layout provide additional flexibility.
The overall aluminum body, make omni-directional wheel more stronger, more pressure, more durable.Sigle omni wheel’s structure, flexibility would be significantly increased , easy handling.Adopt a variety of high-precision processing technology,combined with them (wire-cutting, laser cutting, stamping processing, etc.), the omni-directional wheel could do lateral movement and sliding flexiblely, omni-directional wheel movement performance to be achieved.According to the needs of users, can satisfy the load and the design demands.
The picture is only for your reference instead of what you receive.The actual goods is only wheels .
Specification:
Diameter :100mm
Width:28mm
Body material:Stainless Steel
Net Weight:0.45kg
Roller material:Stainless Steel
Number of big roller:6
Number of small roller:6
Number of bearing :32
Features:
Unrivalled 360 degree manoeuvrability & rotation including lateral & diagonal movement
Unique fixed orientation
Simple & stable mounting method
Robust &durable construction
This kind of omni wheel suitable for conveyor.
Load capacity:5kg
Application:
Based on omni-directional wheel technology, would be used for the service robot, carts, transfer conveyor, luggage, etc., the omni-directional wheel will provide a perfect performance, can replace traditional or integrated wheel.
Packaging Details
Unit Type: piece
Package Weight: 0.250kg (0.55lb.)
Package Size: 8cm x 8cm x 8cm (3.15in x 3.15in x 3.15in)
